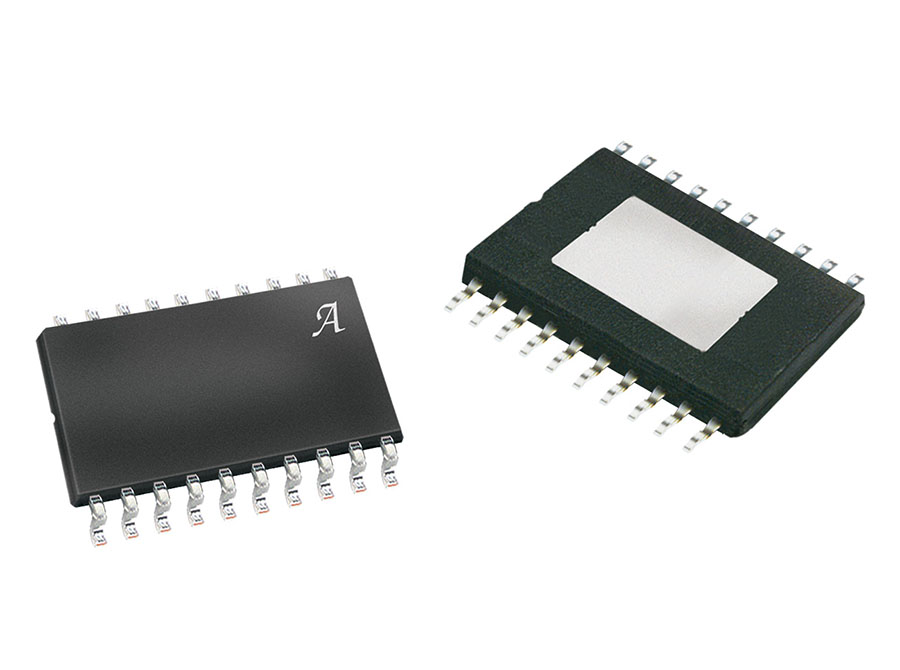

A6274 和 A6284 是用于驱动汽车 LED 阵列的可编程线性电流稳压器 IC。LED 电流通过外部电阻器进行编程。这些设备通过 6 个 LED 引脚提供灌电流,每个引脚的灌电流高达 60mA (A6274) 或 120 mA (A6284),以驱动高亮 LED 串。LED 引脚可进行并联,以驱动更高电流的 LED 串。当前设置的精确度一般为 2%,而 LED 串之间的典型匹配率为 0.8%。
LED 照明输出可通过 PWM 调光进行调节。IC 提供了通过外部电阻器编程的内部 PWM 调光电路,用于 PWM 频率和工作周期设定。它也可接收外部 PWM 信号。对于较大的照明系统,多个 IC 可进行并联。配有内部全功能选项 (VDR > 3.6 V),可针对 LED 全电流进行 PWM 调光比超控。
LED 电流会根据温度和可编程 VIN 级别进行降额,便于在各种操作条件下运行。
还配有闸极引脚,用以驱动作为主动式镇流电阻的外部 P 通道 MOSFET,以减少 IC 封装内的散热。在发生 LED 串接地短路故障时,它也可作为输入断开开关。
A6274 和 A6284 提供非锁存功能选项,而 A6274-1 和 A6284-1 提供锁存功能选项。
