A5988 是一种四路 DMOS 全桥式驱动器 IC,最多可以驱动两台步进电机或四台直流机每个全桥输出的额定值为 1.6 A 和 40 V。A5988 包括固定停机时间脉宽调制 (PWM) 电流稳压器和 2 位非线性 DAC (数字-模拟转换器),DAC 可以以全步进、半步进、四分之一或八分之一步进模式控制步进电机,并可以以向前、反转和滑行模式控制直流电机PWM 电流稳压器使用 Allegro™ 专利混合衰减模式来减少可闻电机噪音、增加步进精确度并减少功率耗散。
提供的内部同步整流控制电路可以改善 PWM 操作过程中的功耗。保护功能包括滞后过热关机、欠电压锁定 (UVLO) 及交叉电流保护。不需要特别的加电排序。

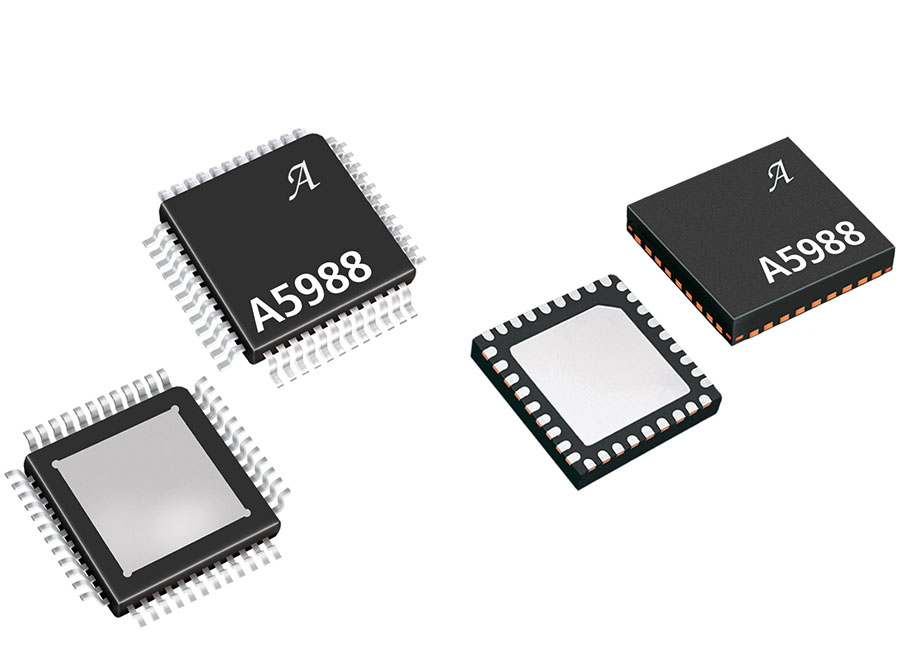

A5988 提供 EV 和 JP 两种封装方式,带有可以增强散热性能的外露隔热盘。EV 是一种尺寸为 6 mm × 6 mm 的 36 引脚 QFN 封装,其标准整体封装高度为 0.90 mm。JP 是一种尺寸为 7 mm × 7 mm 的 48 引脚 LQFP 封装。两种封装均为无铅 (Pb) 封装,引脚框均采用 100% 雾锡电镀。
