A1262ELHLT-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1

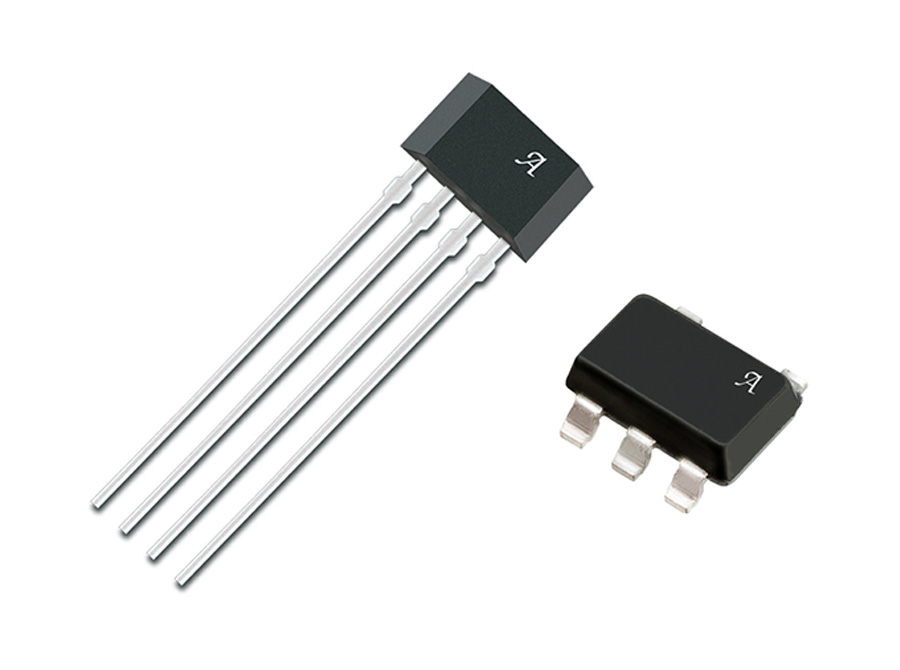

A1262は、2Dアーキテクチャによりモータおよびエンコーダーの設計を簡素化し、垂直型および水平型ホール素子の両方から直交出力を提供します。超高感度動作と位相差90°の２出力により、高精度で信頼性の高いパフォーマンスを確保します。
Product Details
Product Details
Top Features
- 水平と垂直のホール素子による二次元的な磁気検出
- 2つのチャンネル間の位相分離は実質90度
- 2つの出力チャンネルによる独立したZ軸の使用が可能
水平のホール素子と対になった垂直ホールの方向:- Y軸 (A1262LLH-T)
- X軸 (A1262LLH-X-T)
- 高感度なBOP, 17 G typ.
- 車載グレード対応
- 車載アプリケーション向けAEC-Q100 認定済み
- 出力ショート保護機能
- 物理的ストレスへの耐性
- バッテリー逆接続保護
- ソリッド ステートの信頼性
- 優れた温度安定性
- 供給電圧をツェナークランプ
- 小さなパッケージ
Target Application
Part Number Specifications and Availability
View Full Specification Details
A1262ELHLT-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262ELHLX-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262ELHLX-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LK-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LK-Y-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LKTN-X-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- output
- -
- sensor_type
- -
- aec_q100
- -
- market
- Automotive
- typical_bop
- -
- typical_brp
- -
A1262LKTN-Y-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- output
- -
- sensor_type
- -
- aec_q100
- -
- market
- Automotive
- typical_bop
- -
- typical_brp
- -
A1262LLHLT-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLT-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLX-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLX-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
