A1262ELHLT-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
Switches and Latches

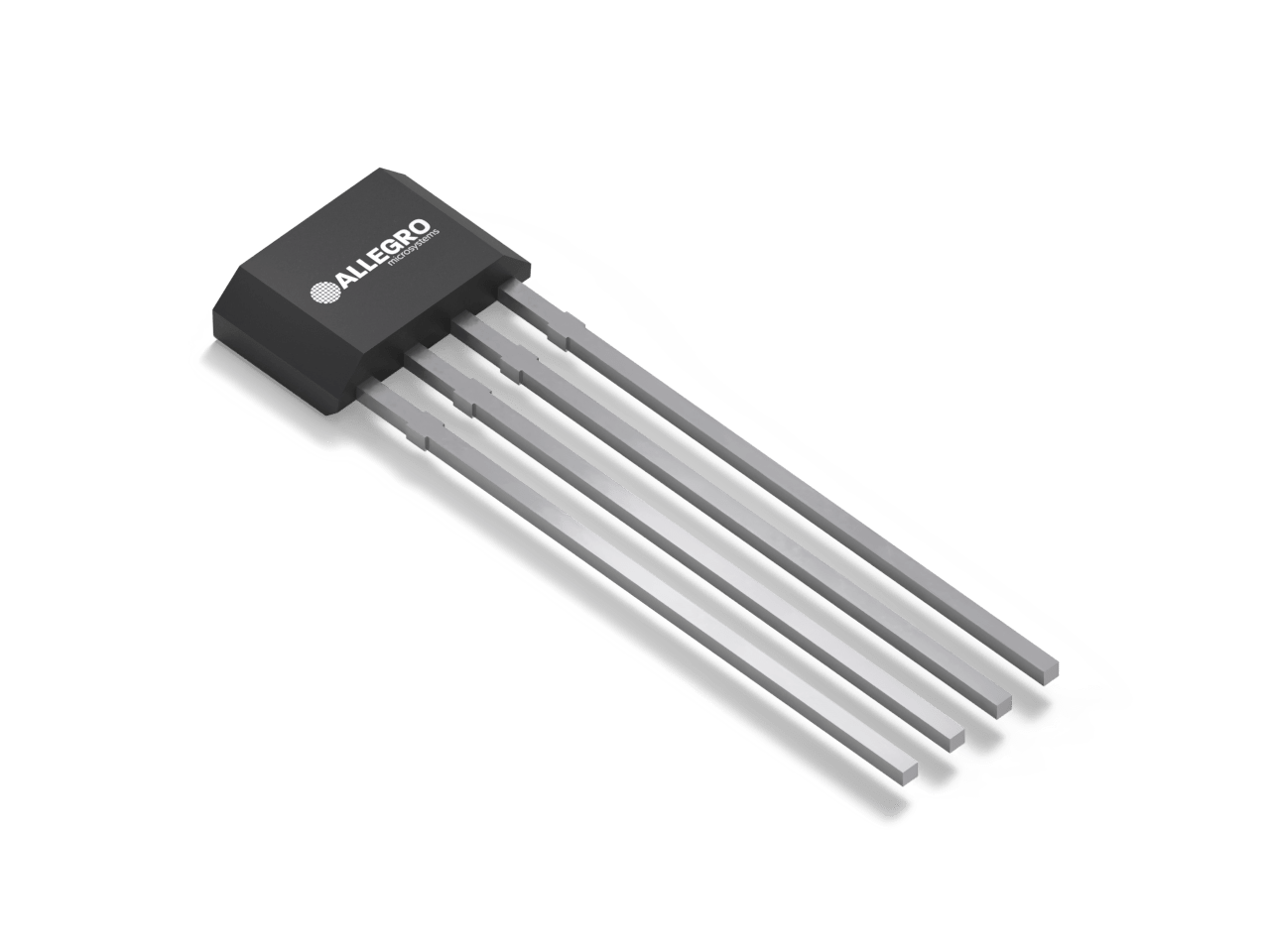

2D Dual-Channel Ultrasensitive Hall-Effect Latch for Motor and Encoder Applications
A1262
Markets Served
The A1262 simplifies motor and encoder design with its 2D architecture, providing quadrature output from both vertical and planar Hall elements. Its ultrasensitive operation and 90° phase separation ensure precise and reliable performance.
Product Details
Product Details
Top Features
- 2D magnetic sensing via planar and vertical Hall elements
- Quadrature outputs
- 90° phase separation between channels
- Dual-channel output allows independent use of Z-axis planar Hall in conjunction with vertical Hall:
- Y-axis (default option)
- X-axis (with -X option)
- High sensitivity, BOP typically 17 G
- Automotive grade
- AEC-Q100 qualified for use in automotive applications (L temperature range option)
- Output short-circuit protection
- Resistant to physical stress
- Reverse-battery protection
- Superior temperature stability
- Supply voltage Zener clamp
- Small size
Target Application
Part Number Specifications and Availability
View Full Specification Details
A1262ELHLT-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262ELHLX-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262ELHLX-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Industrial
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LK-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LK-Y-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LKTN-X-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- output
- -
- sensor_type
- -
- aec_q100
- -
- market
- Automotive
- typical_bop
- -
- typical_brp
- -
A1262LKTN-Y-T
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- output
- -
- sensor_type
- -
- aec_q100
- -
- market
- Automotive
- typical_bop
- -
- typical_brp
- -
A1262LLHLT-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLT-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLX-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
A1262LLHLX-X-T
- supply_voltage_min_v
- 4
- supply_voltage_max_v
- 24
- output
- Voltage
- sensor_type
- 2D
- aec_q100
- Yes
- market
- Automotive
- typical_bop
- 1.7/17
- typical_brp
- 0.1
