Hall-Effect Linear Current Sensor IC with Overcurrent Fault

ACS711

Markets Served

This part is in production and has been determined to be NOT FOR NEW DESIGN. Please refer to ACS71240 or ACS37041/2 for new designs.

The ACS711 offers a cost-effective solution for current sensing in low- and high-side applications, with integrated overcurrent fault protection and a low-noise analog signal path. Eliminates the need for an external sense resistor, reducing component count and PCB space.

View Datasheet

Product Details

Top Features

Reduced Power Loss:
- 0.6 mΩ internal conductor resistance on EX package
- 1.2 mΩ internal conductor resistance on LC package
Overcurrent FAULT trips and latches at 100% of full-scale current
±12.5 A and ±25 A full scale sensing ranges on LC package
±15.5 A and ±31 A full scale sensing ranges on EX package
3.0 to 5.5 V, single supply operation

Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS711ELCTR-12AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±12.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C

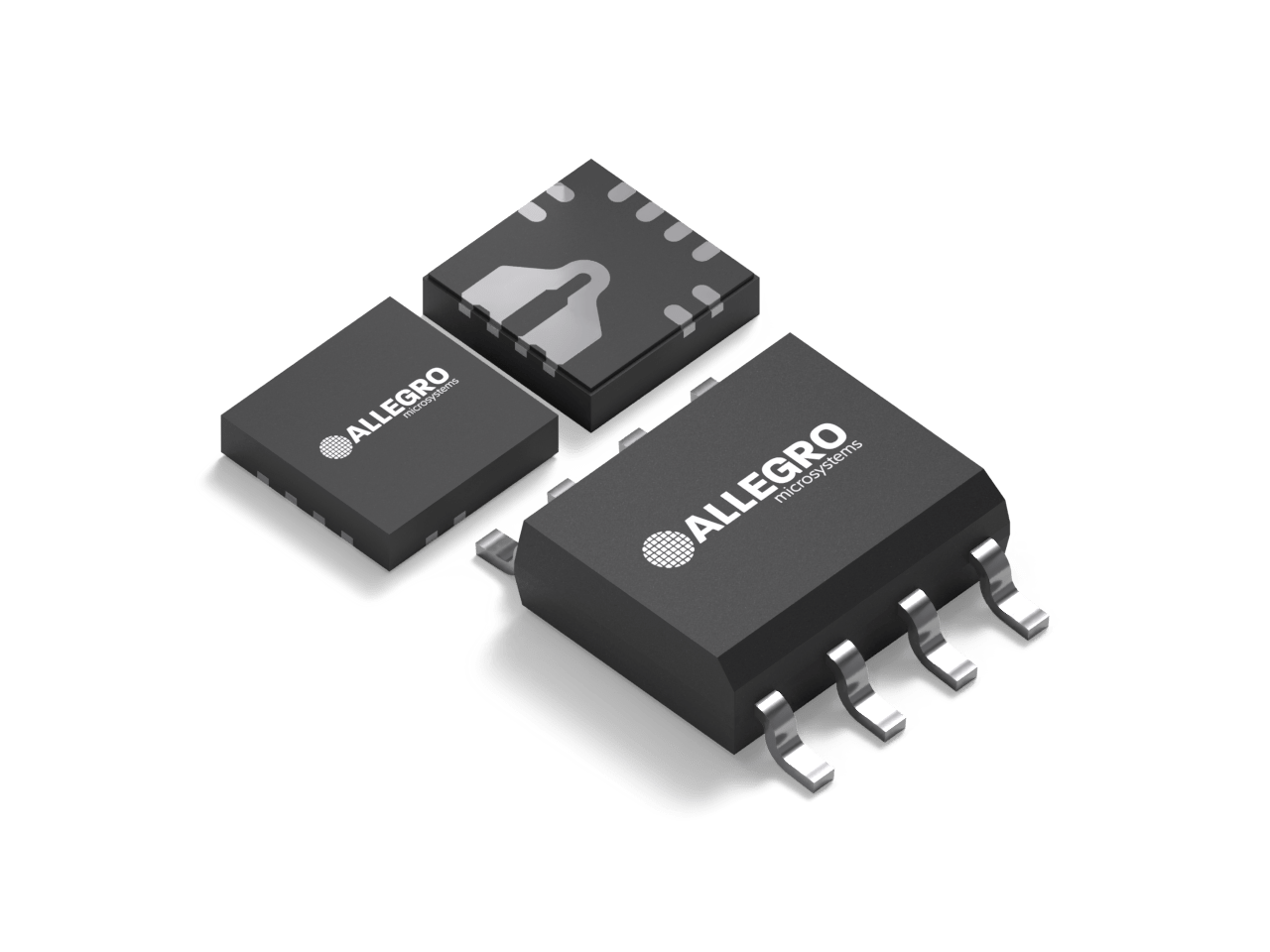

package: 8-Pin SOIC
market: -
features: Overcurrent Fault

ACS711ELCTR-25AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 8-Pin SOIC
market: -
features: Overcurrent Fault

ACS711KEXLT-15AB-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±15.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-15AB-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±15.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-30AU-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: 30
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-30AU-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: 30
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-31AB-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±31
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-31AB-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±31
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KLCTR-12AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±12.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711KLCTR-25AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711KLCTR-25AU-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: 25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711 Product Overview

The Allegro ACS711 provides economical and precise solutions for AC or DC current sensing in 100+ V audio, communications systems, clean energy, personal mobility and white goods. The device package allows for easy implementation by the customer.

The device consists of a linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.
