Allegro 电流传感器

带过流故障保护功能的霍尔效应线性电流传感器芯片

ACS711

Markets Served

Automotive

Industrial

ACS711 是一款高性价比的电流感测解决方案，适用于高边和低边应用。集成了过流故障保护功能和低噪声模拟信号路径。无需使用外部传感电阻，可降低元件数量并节省 PCB 空间。

ACS711 商业数据表

Product Details

Top Features

无需外部感应电阻，单独封装方案
更低功率损耗：
- 0.6 mΩ 内部导体电阻（EX 封装）
- 1.2 mΩ 内部导体电阻（LC 封装）
经济型低端及高端电流感应
输出电压与交流或直流电流成比例
±12.5 A 和 ±25 A 全刻度感应范围（LC 封装）
±15.5 A 和 ±31 A 全刻度感应范围（EX 封装）
过流故障跳闸，在 100% 满标电流时锁定
低噪音模拟信号路径
100 千赫带宽

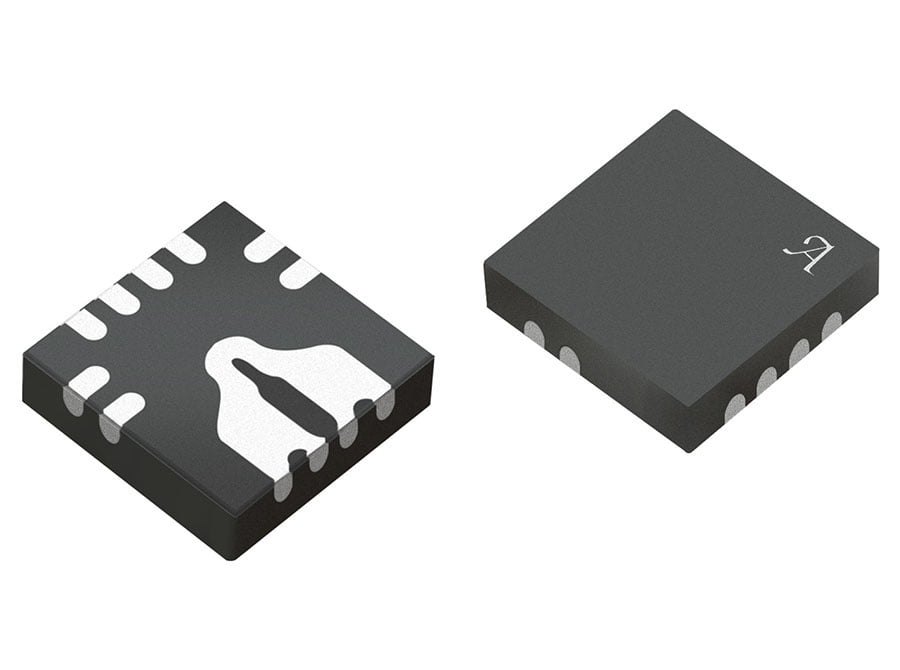

小型低厚度 SOIC8 和 QFN 封装
3.0 至 5.5 V, 单电源工作
集成静电屏蔽，保持输出稳定
出厂时已经校准，确保精确度
极度稳定的输出偏移电压
零磁滞
电源电压的成比例输出

Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS711ELCTR-12AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±12.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 8-Pin SOIC
market: -
features: Overcurrent Fault

ACS711ELCTR-25AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 8-Pin SOIC
market: -
features: Overcurrent Fault

ACS711KEXLT-15AB-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±15.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-15AB-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±15.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-30AU-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: 30
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-30AU-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: 30
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-31AB-S

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±31
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KEXLT-31AB-T

isolation_voltage_vrms: -
primary_conductor_resistance_mohm: 0.6
current_measurement_range_a: ±31
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
package: 12-Pin QFN
market: Industrial
features: Overcurrent Fault

ACS711KLCTR-12AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±12.5
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711KLCTR-25AB-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: ±25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711KLCTR-25AU-T

isolation_voltage_vrms: 100
primary_conductor_resistance_mohm: 1.2
current_measurement_range_a: 25
bandwidth_khz: 100
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
package: 8-Pin SOIC
market: Automotive
features: Overcurrent Fault

ACS711 Product Overview

The Allegro ACS711 provides economical and precise solutions for AC or DC current sensing in 100+ V audio, communications systems, clean energy, personal mobility and white goods. The device package allows for easy implementation by the customer.

The device consists of a linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage.
