用于电池供电系统和高能效应用的微功耗锁存器

APS12753

APS11753 微功耗霍尔效应锁存器芯片有带 AEC-Q100 认证和不带 AEC-Q100 认证两种选项，适用于汽车、工业和消费领域的低电压应用。此外，微功耗逻辑可实现超低功耗，支持 2.2V 至 5.5V 的工作电压范围。

2.2 to 5.5V operation
Ultra-low power consumption (micropower)
AEC-Q100 qualified
Omnipolar and unipolar latch threshold options
Sleep time options
High and low sensitivity magnetic latch point options
Choice of output polarity
Chopper stabilization
- Low latch point drift over temperature
- Insensitive to physical stress
Push-pull output
Solid-state reliability

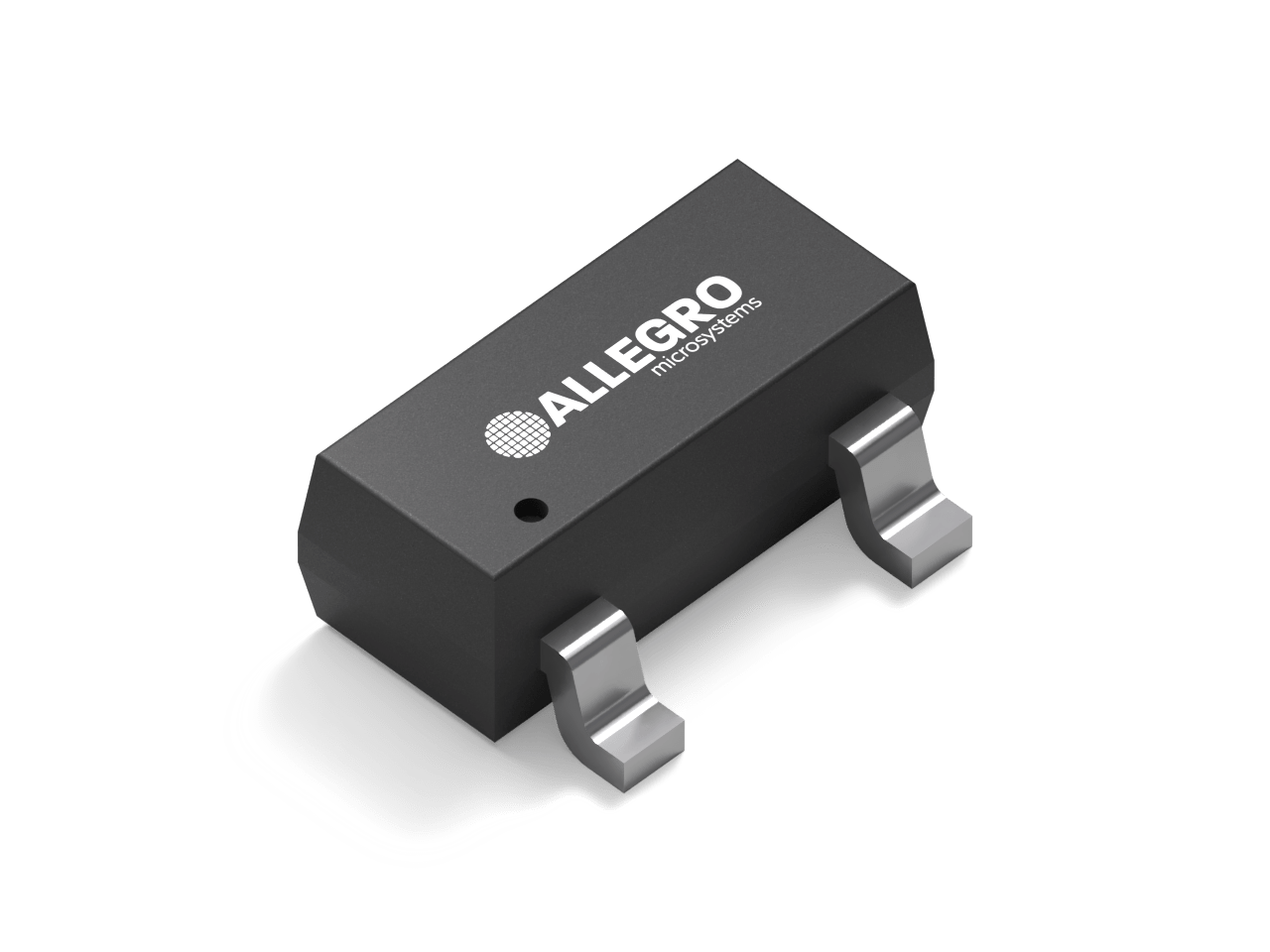

Industry-standard package and pinout
