Micropower Latches for Battery-Powered and Eco-Conscious Applications

APS12753

Markets Served

The APS11753 Micropower Hall-effect latch ICs are offered with and without AEC-Q100 qualification for low-voltage applications in Automotive, Industrial and Consumer Applications. Additionally, the Micropower logic allows ultra-low power consumption and operation from 2.2 to 5.5 V.

View Datasheet

Product Details

Top Features

  • 2.2 to 5.5V operation
  • Ultra-low power consumption (micropower)
  • AEC-Q100 qualified
  • Omnipolar and unipolar latch threshold options
  • Sleep time options
  • High and low sensitivity magnetic latch point options
  • Choice of output polarity
  • Chopper stabilization
    • Low latch point drift over temperature
    • Insensitive to physical stress
  • Push-pull output
  • Solid-state reliability
  • Industry-standard package and pinout

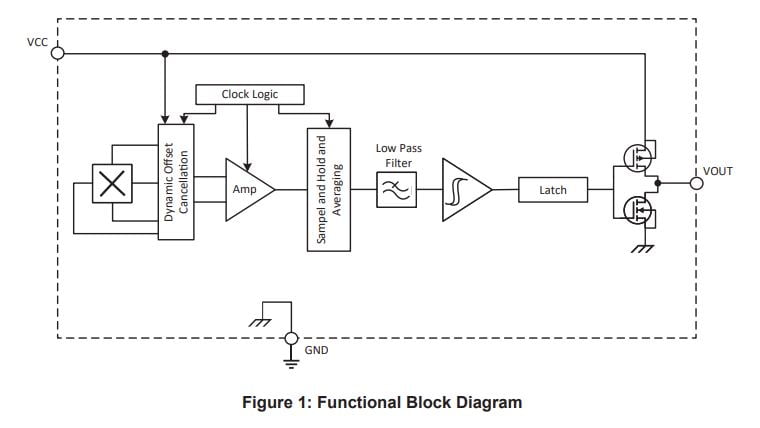

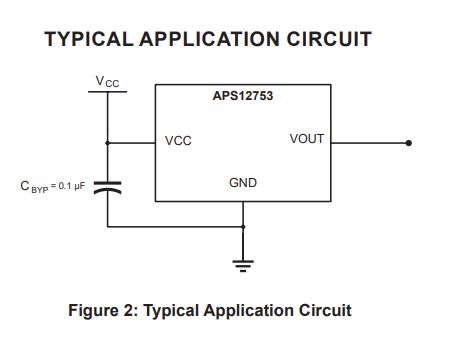

Target Application

Part Number Specifications and Availability

View Full Specification Details

APS12753KMDALX-0SL1

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
output
Voltage
sensor_type
1D Planar
technology
Hall
temp_ranges
-40°C to 125°C
asil_rated
No
packing_information
Reel
market
Industrial
typical_bop
1.0/10
typical_brp
-1.0/-10

APS12753KMDALX-2SL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
output
Voltage
sensor_type
1D Planar
technology
Hall
temp_ranges
-40°C to 125°C
asil_rated
No
packing_information
Reel
market
Industrial
typical_bop
2.0/20
typical_brp
-2.0/-20

APS12753LMDALX-0SL1

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
output
Voltage
sensor_type
1D Planar
technology
Hall
temp_ranges
-40°C to 150°C
asil_rated
No
packing_information
Reel
market
Automotive
typical_bop
1.0/10
typical_brp
-1.0/-10

APS12753LMDALX-2SL5

supply_voltage_min_v
2.2
supply_voltage_max_v
5.5
average_supply_current_ua
0.004
output
Voltage
sensor_type
1D Planar
technology
Hall
temp_ranges
-40°C to 150°C
asil_rated
No
packing_information
Reel
market
Automotive
typical_bop
2.0/20
typical_brp
-2.0/-20
