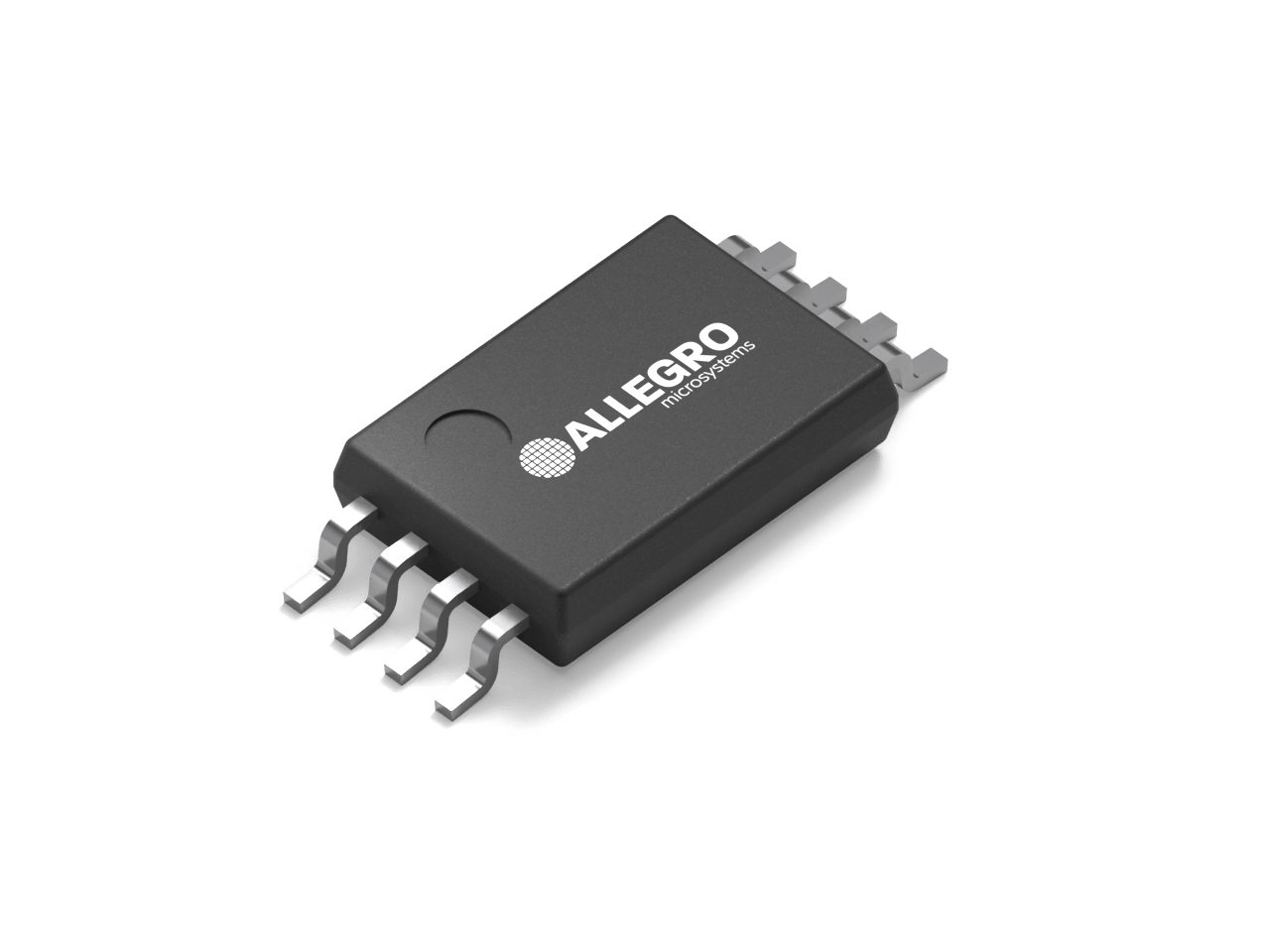

Low Power Automotive 3D Magnetic Angle Sensor with SPI & I2C Interfaces

A31331

Markets Served

Automotive grade 3D magnetic position sensor with onboard angle, low power functionality, and SPI and I2C outputs.

Product Details

Product Details

Top Features

3D magnetic field sensor
Angle calculation from 2 selectable vectors
Low power mode with wake on change
Wide field range for different magnets & air gaps

Target Application

Integrated Thermal Management
HVAC
Shift Selector
Closure Systems

Part Number Specifications and Availability

View Full Specification Details

A31331KLEATR-XYZ-IC-06

supply_voltage_min_v: 2.65
supply_voltage_max_v: 3.6
output_type: SPI, I²C
linearization: No
active_sensing_axes: 3 Axes ( X, Y, Z)
max_magnetic_field_g: 600
aec_q100: Yes
temperature: -40°C to 125°C
package: 8-Pin TSSOP
on_chip_angle_calculation: Yes
market: Automotive, Industrial

A31331KLEATR-XYZ-SI-06

supply_voltage_min_v: 2.65
supply_voltage_max_v: 3.6
output_type: SPI, I²C
linearization: No
active_sensing_axes: 3 Axes ( X, Y, Z)
max_magnetic_field_g: 600
aec_q100: Yes
temperature: -40°C to 125°C
package: 8-Pin TSSOP
on_chip_angle_calculation: Yes
market: Automotive, Industrial
