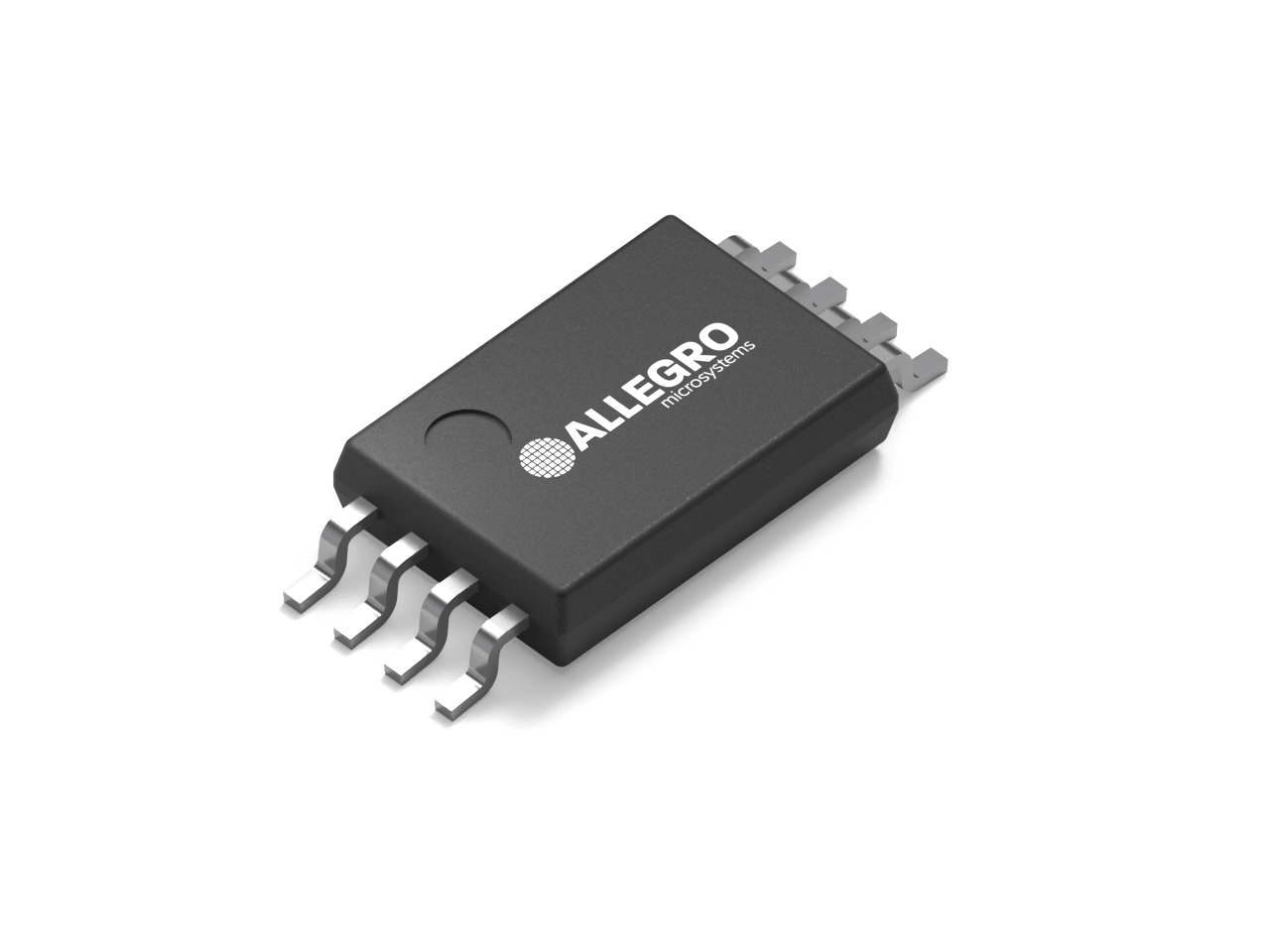

Low Power Automotive 3D Magnetic Angle Sensor with SPI & I2C Interfaces

A31331

Markets Served
Automotive grade 3D magnetic position sensor with onboard angle, low power functionality, and SPI and I2C outputs.
View Datasheet

Product Details

Top Features

  • 3D magnetic field sensor
  • Angle calculation from 2 selectable vectors
  • Low power mode with wake on change
  • Wide field range for different magnets & air gaps
Target Application

Part Number Specifications and Availability

View Full Specification Details

A31331KLEATR-XYZ-IC-06

supply_voltage_min_v
2.65
supply_voltage_max_v
3.6
output_type
SPI, I²C
linearization
No
active_sensing_axes
3 Axes ( X, Y, Z)
max_magnetic_field_g
600
aec_q100
Yes
temperature
-40°C to 125°C
package
8-Pin TSSOP
on_chip_angle_calculation
Yes
market
Automotive, Industrial

A31331KLEATR-XYZ-SI-06

supply_voltage_min_v
2.65
supply_voltage_max_v
3.6
output_type
SPI, I²C
linearization
No
active_sensing_axes
3 Axes ( X, Y, Z)
max_magnetic_field_g
600
aec_q100
Yes
temperature
-40°C to 125°C
package
8-Pin TSSOP
on_chip_angle_calculation
Yes
market
Automotive, Industrial
