CT815x 系列具有超低功耗和高灵敏度，适用于电池供电应用。这些全极 TMR 传感器提供线性模拟输出，具有 LGA 和 SOT23 两种紧凑型封装。CT8152 支持模拟 + 数字双输出。
Product Details
Product Details
Top Features
- Analog Output Mode, Current Consumption: ~3.0 µA
- Current Consumption in Digital Output Mode: ~120 nA @ VDD = 1.8 V and fS = 12.5 Hz
- Supply Voltage Range: 1.7 V to 5.5 V
- Sensor Polarity: Omnipolar
- Sample and Hold Analog Output @ fS = 100 Hz

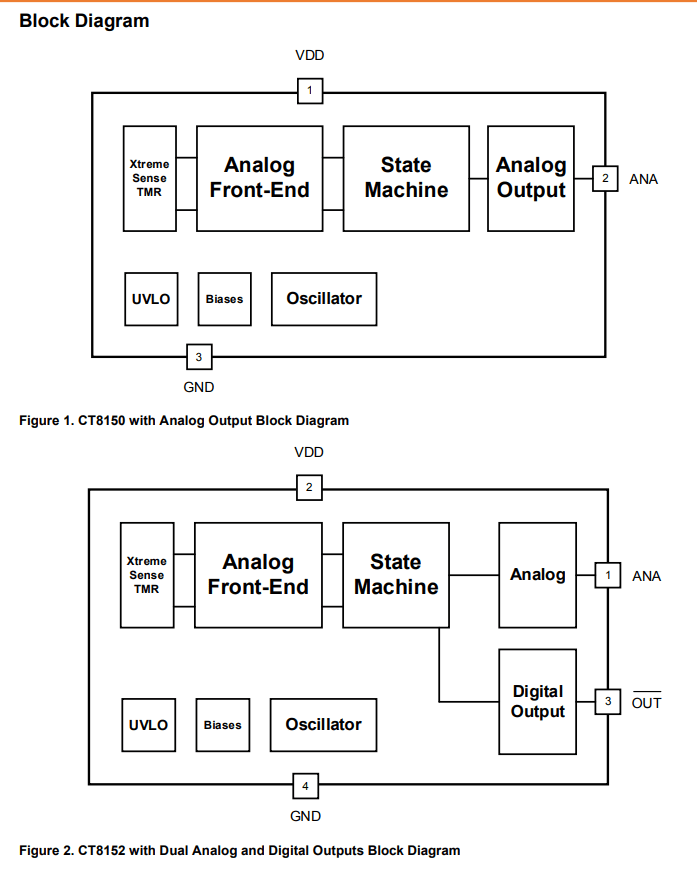

- Dual Analog and Digital Output Operation Capability
- Digital Output is Push-pull
- Under-Voltage Lockout (UVLO)
- Package Options
- 3 and 5-lead SOT23
- 4-lead LGA, 1.45 x 1.45 x 0.44 mm
Target Application
Part Number Specifications and Availability
Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
