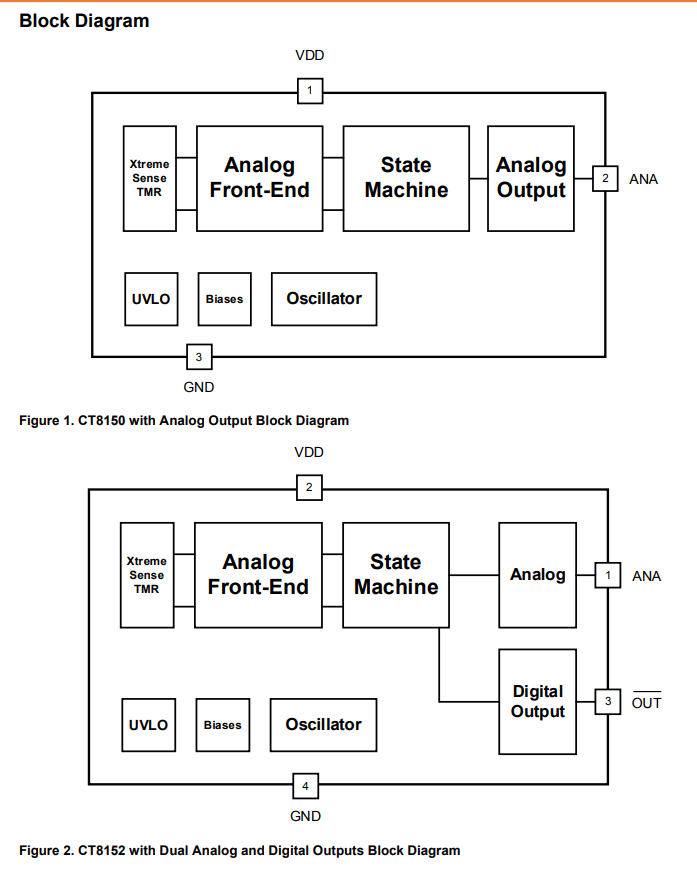

CT815xファミリーは、バッテリ駆動用途向けに超低消費電力と高感度を提供します。これらのオムニポーラTMRセンサは、リニア アナログ出力を備え、コンパクトなLGAおよびSOT23パッケージで提供されます。CT8152は、アナログとデジタルのデュアル出力を備えています。
Product Details
Product Details
Top Features
- Analog Output Mode, Current Consumption: ~3.0 µA
- Current Consumption in Digital Output Mode: ~120 nA @ VDD = 1.8 V and fS = 12.5 Hz
- Supply Voltage Range: 1.7 V to 5.5 V
- Sensor Polarity: Omnipolar
- Sample and Hold Analog Output @ fS = 100 Hz
- Dual Analog and Digital Output Operation Capability
- Digital Output is Push-pull
- Under-Voltage Lockout (UVLO)
- Package Options
- 3 and 5-lead SOT23
- 4-lead LGA, 1.45 x 1.45 x 0.44 mm
Target Application
Part Number Specifications and Availability
Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
