磁性位置传感器

具有睡眠模式的小型低功耗单向线性霍尔效应

A31010

Markets Served

下载数据表

Evaluation Board

Evaluation Board

Product Details

Product Details

Top Features

用户控制的睡眠模式，快速的 (< 60 µs) 唤醒时间，可实现无延迟节能
3.2 mA 活动电流和 25 µA 睡眠电流可降低总功耗，延长电池寿命
运行电源电压低至 2.5 V，适用于电池应用
低静态电压输出可最大限度地提高输出范围和分辨率

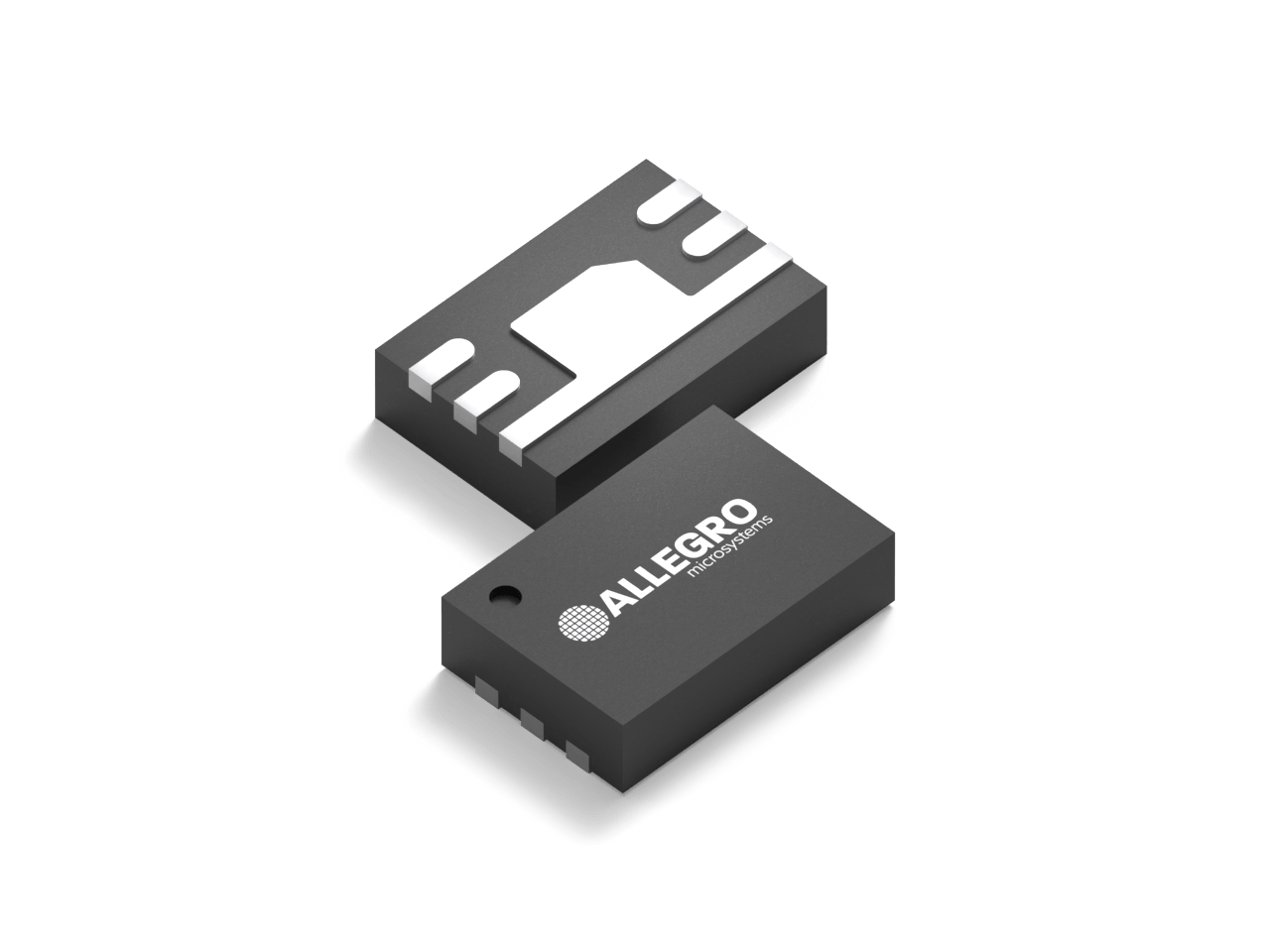

小尺寸 DFN-6 (2 mm x 3 mm x 0.75 mm)，可实现电路板面积最小化

Target Application

Part Number Specifications and Availability

View Full Specification Details

A31010SEHALT-10

supply_voltage_min_v: 2.5
supply_voltage_max_v: 3.5
technology: Hall
output_type: Analog
typical_sensitivity_mv_per_g: 10
typical_sensitivity_mv_per_mt: 100
ratiometric: Yes
sensitivity_error: +/-1
quiescent_output_typical_v: 6.47% Vref
output_bandwidth_typical_khz: 10
temp_ranges: -20°C to 85°C
programming: Factory Programmed
package: 6-Pin MLP/DFN
market: Industrial
sensitivity_reference_voltage: 3
customer_programmable: No

A31010SEHALT-4

supply_voltage_min_v: 2.5
supply_voltage_max_v: 3.5
technology: Hall
output_type: Analog
typical_sensitivity_mv_per_g: 3.78
typical_sensitivity_mv_per_mt: 37.8
ratiometric: Yes
sensitivity_error: +/-1
quiescent_output_typical_v: 6.47% Vref
output_bandwidth_typical_khz: 10
temp_ranges: -20°C to 85°C
programming: Factory Programmed
package: 6-Pin MLP/DFN
market: Industrial
sensitivity_reference_voltage: 3
customer_programmable: No

A31010SEHALX-10

supply_voltage_min_v: -
supply_voltage_max_v: -
technology: -
output_type: -
typical_sensitivity_mv_per_g: -
typical_sensitivity_mv_per_mt: -
ratiometric: -
sensitivity_error: -
quiescent_output_typical_v: -
output_bandwidth_typical_khz: -
temp_ranges: -
programming: -
package: -
market: -
sensitivity_reference_voltage: -
customer_programmable: -

A31010SEHALX-4

supply_voltage_min_v: -
supply_voltage_max_v: -
technology: -
output_type: -
typical_sensitivity_mv_per_g: -
typical_sensitivity_mv_per_mt: -
ratiometric: -
sensitivity_error: -
quiescent_output_typical_v: -
output_bandwidth_typical_khz: -
temp_ranges: -
programming: -
package: -
market: -
sensitivity_reference_voltage: -
customer_programmable: -
