Magnetic Position Sensors

Low-Power, Unipolar Linear Hall-Effect Sensor IC with Sleep Mode

A31010

Markets Served

The A31010 offers low-power operation and a user-controlled sleep mode for extended battery life in a variety of applications. Its unidirectional output and fast wake-up time make it ideal for battery-powered motion detection.

View Datasheet
Evaluation Board

Product Details

Top Features

  • User-controlled sleep mode with fast (< 60 µs) wakeup time for lag-free power savings
  • 3.2 mA active and 25 µA sleep current reduces total power consumption and extends battery life
  • Operates down to 2.5 V supply for battery applications
  • Low quiescent voltage output maximizes output range and resolution

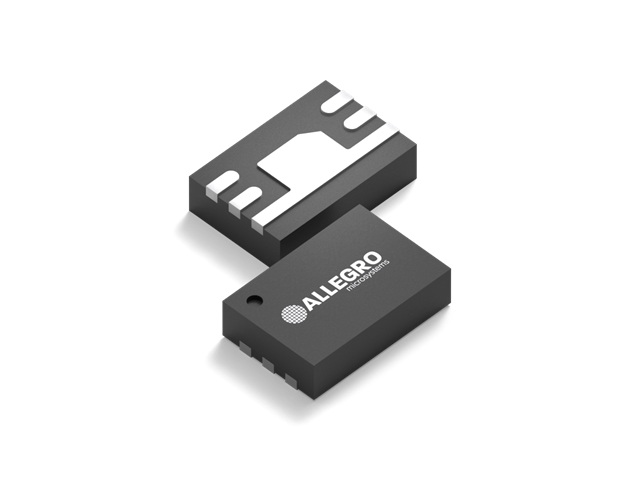

  • Small size DFN-6 (2 mm x 3 mm x 0.75 mm) for minimal board area
Target Application

Part Number Specifications and Availability

View Full Specification Details

A31010SEHALT-10

supply_voltage_min_v
2.5
supply_voltage_max_v
3.5
technology
Hall
output_type
Analog
typical_sensitivity_mv_per_g
10
typical_sensitivity_mv_per_mt
100
ratiometric
Yes
sensitivity_error
+/-1
quiescent_output_typical_v
6.47% Vref
output_bandwidth_typical_khz
10
temp_ranges
-20°C to 85°C
programming
Factory Programmed
package
6-Pin MLP/DFN
market
Industrial
sensitivity_reference_voltage
3
customer_programmable
No

A31010SEHALT-4

supply_voltage_min_v
2.5
supply_voltage_max_v
3.5
technology
Hall
output_type
Analog
typical_sensitivity_mv_per_g
3.78
typical_sensitivity_mv_per_mt
37.8
ratiometric
Yes
sensitivity_error
+/-1
quiescent_output_typical_v
6.47% Vref
output_bandwidth_typical_khz
10
temp_ranges
-20°C to 85°C
programming
Factory Programmed
package
6-Pin MLP/DFN
market
Industrial
sensitivity_reference_voltage
3
customer_programmable
No

A31010SEHALX-10

supply_voltage_min_v
-
supply_voltage_max_v
-
technology
-
output_type
-
typical_sensitivity_mv_per_g
-
typical_sensitivity_mv_per_mt
-
ratiometric
-
sensitivity_error
-
quiescent_output_typical_v
-
output_bandwidth_typical_khz
-
temp_ranges
-
programming
-
package
-
market
-
sensitivity_reference_voltage
-
customer_programmable
-

A31010SEHALX-4

supply_voltage_min_v
-
supply_voltage_max_v
-
technology
-
output_type
-
typical_sensitivity_mv_per_g
-
typical_sensitivity_mv_per_mt
-
ratiometric
-
sensitivity_error
-
quiescent_output_typical_v
-
output_bandwidth_typical_khz
-
temp_ranges
-
programming
-
package
-
market
-
sensitivity_reference_voltage
-
customer_programmable
-
