Allegro 电流传感器

200kHz 高精度电流传感器芯片，采用 100μΩ 导体，适用于大电流应用

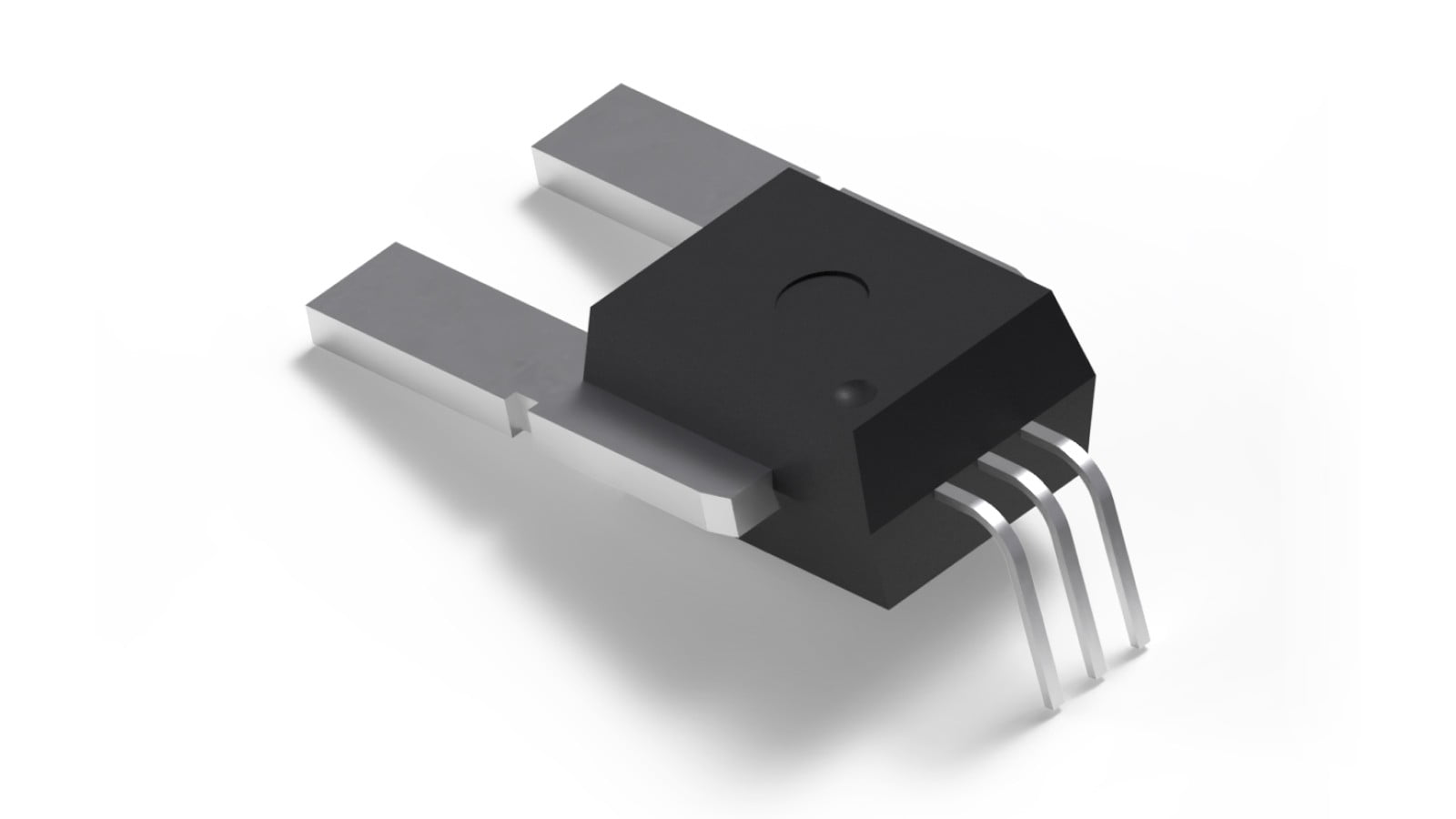

ACS772

Markets Served

ACS772 专为大电流、高压应用而设计，具有 200kHz 带宽、快速响应（2.5μs）和加强的电流隔离功能，实现高效而精准的电流感测。

ACS772 数据表
Evaluation Board

Product Details

Top Features

  • 符合 AEC-Q100 1 级标准
  • 输出响应时间典型值 2.5 μs
  • 5 V 电源操作
  • 超低功率损耗：内部传导电阻 100 µΩ
  • 强化电流隔离可用于高压系统的高侧电流经济感测
  • 4800 Vrms 绝缘强度符合 UL60950-1 认证
  • 凭借专有放大器和过滤器设计技术，该器件具有业界领先的噪声性能，并且带宽也显著改善
  • 集成屏蔽可大幅减少因高 dV/dt 信号导致电流导体至晶片的电容耦合，并可防止高侧、高压应用中的偏置漂移。
  • 通过在完整的操作温度范围内进行数字编程和补偿增益和偏置，大幅改善总输出错误
  • 小型封装尺寸，安装简便
  • 高可靠性的单片霍尔 IC
  • 输出电压与交流或直流电流成比例
  • 出厂时已经校准，确保精确度
  • 极度稳定的输出偏移电压
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS772ECB-200B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-200B-SMT-T

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
-
primary_conductor_resistance_mohm
-
architecture
-
current_measurement_range_a
-
bandwidth_khz
-
supply_voltage_v
-
temp_ranges
-
aec_q100
-
over_current_fault
-
package
-
market
-
quiescent_output_v
-

ACS772ECB-200U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
200
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772ECB-250B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±250
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-250U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
250
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772ECB-300B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±300
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-400B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±400
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-PSF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PSF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772KCB-150U-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772LCB-050B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-050B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-050U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772LCB-100B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-100B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-100U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)
