Allegro 電流センサー

大電流用途向け100µΩ導体搭載の200kHz高精度電流センサIC

ACS772

Markets Served

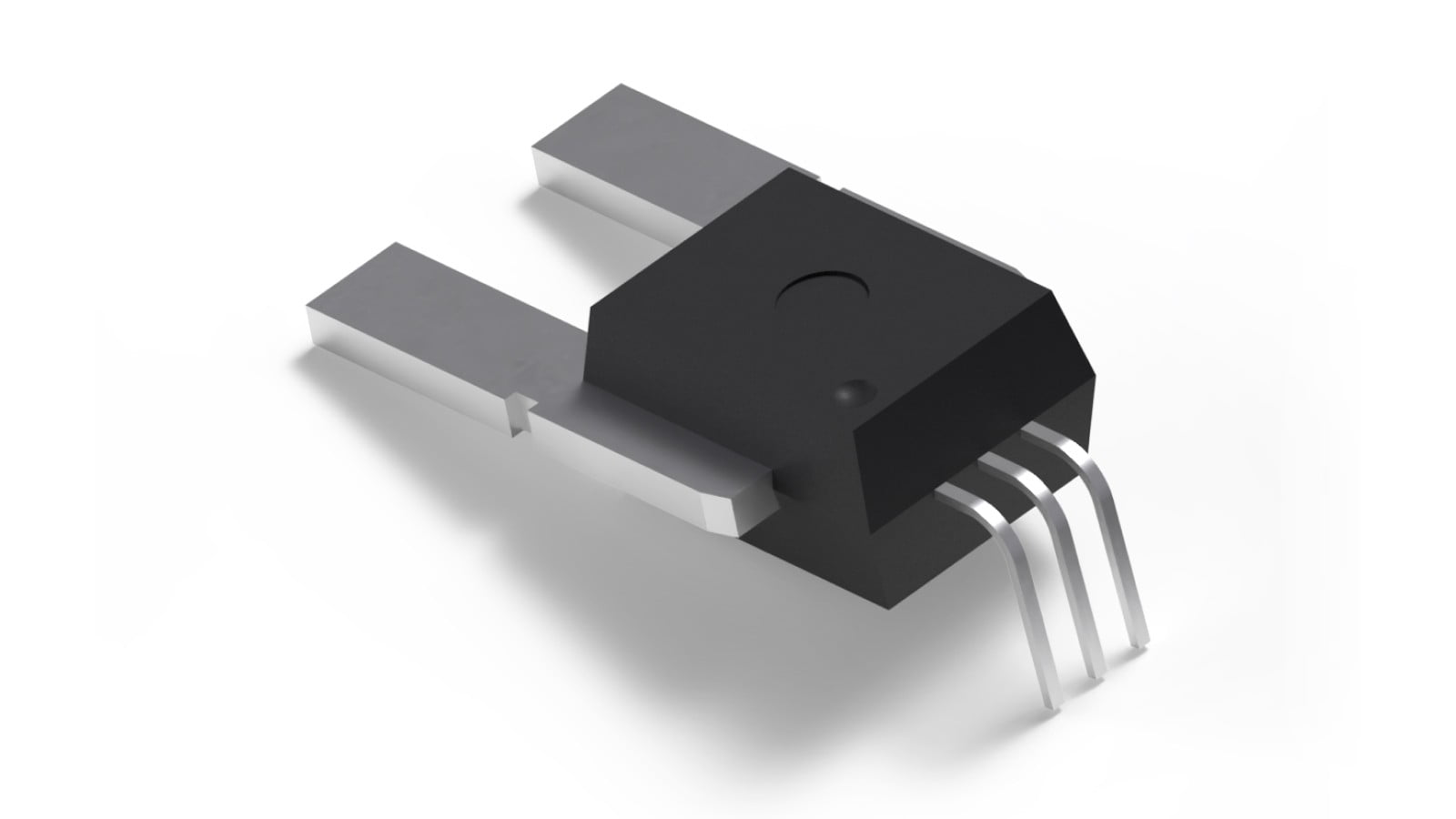

ACS772は、200kHzの帯域幅、高速な応答時間 (2.5µs)、強化されたガルバニック絶縁を備え、大電流かつ高電圧用途向けに高精度で高効率の電流検出機能を提供します。

ACS772データシート
Evaluation Board

Product Details

Top Features

  • AEC-Q100グレード1準拠
  • 出力応答時間2.5μs (標準値)
  • 5V電源動作
  • 非常に低い電力損失:100μΩの内蔵導体抵抗
  • 強化された絶縁分離のため、経済的な、高電圧システムでのハイサイド電流検出が可能
  • 4800Vrmsの絶縁強度はUL60950-1で認定
  • 独自のアンプとフィルター設計技法により帯域幅が大きく向上した業界最高レベルのノイズ特性
  • 一体型シールドで電流導体からダイへの高dV/dt信号による容量結合が大幅に削減され、ハイサイドで高電圧の用途におけるオフセットドリフトを防止
  • 動作温度範囲全体にわたり、デジタル的にプログラミングされ、補償されたゲインおよびオフセットを用い総出力誤差を大幅に改善
  • 小型パッケージで簡単な取付け
  • 高信頼性を実現するモノリシックホールIC
  • ACまたはDC電流に比例した出力電圧
  • 精度向上のため工場調整済み
  • 極めて安定した出力オフセット電圧
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS772ECB-200B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-200B-SMT-T

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
-
primary_conductor_resistance_mohm
-
architecture
-
current_measurement_range_a
-
bandwidth_khz
-
supply_voltage_v
-
temp_ranges
-
aec_q100
-
over_current_fault
-
package
-
market
-
quiescent_output_v
-

ACS772ECB-200U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
200
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772ECB-250B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±250
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-250U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
250
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772ECB-300B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±300
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772ECB-400B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±400
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 85°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-PSF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PSF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772KCB-150U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772KCB-150U-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
150
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772LCB-050B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-050B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-050U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
50
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

ACS772LCB-100B-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-100B-SMT-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin SMT
market
Automotive, Industrial
quiescent_output_v
Typ 50% VCC (Bi)

ACS772LCB-100U-PFF-T

basic_isolation_working_voltage_vrms
960
reinforced_isolation_working_voltage_vrms
475
isolation_voltage_vrms
4800
primary_conductor_resistance_mohm
0.1
architecture
Unidirectional
current_measurement_range_a
100
bandwidth_khz
200
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
No
package
5-Pin PFF
market
Automotive, Industrial
quiescent_output_v
Typ 10% VCC (Uni)

設計ツール

ECAD FILE

ACS772

ACS772 ECAD Model Type Image
Simulation Tool

Current Sensor Error and Resolution
Software

Software Portal
SPICE Model

ACS LTspice Library

Technical Documentation

Improved Performance and Features of Allegro’s Next Generation, High Power Density CB Package Current Sensors
Application Note

Improved Performance and Features of Allegro’s Next Generation, High Power Density CB Package Current Sensors

Glossary of Isolation-Related Terms for Integrated Current Sensors
Application Note

Glossary of Isolation-Related Terms for Integrated Current Sensors

DC Current Capability and Fuse Characteristics of Current Sensor ICs with 50 to 200 A Measurement Capability
Application Note

DC Current Capability and Fuse Characteristics of Current Sensor ICs with 50 to 200 A Measurement Capability

Powering the Future, One Cell at a Time: Enabling Safe, High-Efficiency Energy Storage
Brochure

Powering the Future, One Cell at a Time: Enabling Safe, High-Efficiency Energy Storage

The Pulse of Next-Gen Healthcare - Driving Precision, Safety, and Reliability in Medical & Personal Health
Brochure

The Pulse of Next-Gen Healthcare - Driving Precision, Safety, and Reliability in Medical & Personal Health

Efficient Climate Control, Engineered to Perfection - Driving Performance and Sustainability in Next-Generation Heat Pumps and HVAC Systems
Brochure

Efficient Climate Control, Engineered to Perfection - Driving Performance and Sustainability in Next-Generation Heat Pumps and HVAC Systems

Cooling the Cloud
Brochure

Cooling the Cloud

Robust and Efficient UPS Solutions Powered by Allegro
Brochure

Robust and Efficient UPS Solutions Powered by Allegro

Robust and Efficient Power Supply Units (PSUs) for Cloud Infrastructure
Brochure

Robust and Efficient Power Supply Units (PSUs) for Cloud Infrastructure

Brochure: Battery Management Systems
Brochure

Brochure: Battery Management Systems

DC Fast Charging: Faster and Farther
Brochure

DC Fast Charging: Faster and Farther

Comfort Through Sustainability - Unlock the Power of Heat Pump Innovation
Brochure

Comfort Through Sustainability - Unlock the Power of Heat Pump Innovation

Certificate CB US 42444 UL CB Package
Certificate

Certificate CB US 42444 UL CB Package

Certificate of Compliance 20170510-E316429
Certificate

Certificate of Compliance 20170510-E316429

CB Certificate US-29755-M1-UL
Certificate

CB Certificate US-29755-M1-UL

(Showing 4 (of 15
