Allegro 电流传感器

具有过流故障保护功能低阻抗电流传感器芯片

ACS37220

Markets Served

ACS37220 简化了汽车应用中的大电流感测操作，具有超低导体电阻（<100μΩ），可显著提升系统效率；集成过流故障输出功能，增强系统安全性。提供 QFN 和 SOICW-6 封装，具有设计灵活性。

LiveBench

Product Details

Top Features

  • AEC-Q100 Grade 0, automotive qualified
  • Ultra-low primary conductor resistance of 100 μΩ for high efficiency and high inrush current capability
  • Small footprint, 4 mm × 4 mm QFN “EZ” package with wettable flank, suitable for space-constrained automotive applications
  • Overcurrent fault output with user-configurable threshold to provide fast short-circuit detection for enhanced system protection
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS37220LEZATR-050B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-100B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-100B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-150B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-150B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-200B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-200B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LMZTR-060B3

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5656
creepage_mm
8.5
clearance_mm
8.5
primary_conductor_resistance_mohm
0.8
architecture
Bidirectional
current_measurement_range_a
±60
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
-
package
6-Pin SOIC
market
Automotive, Industrial
quiescent_output_v
1.65
features
-

ACS37220LMZTR-060B5

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5656
creepage_mm
8.5
clearance_mm
8.5
primary_conductor_resistance_mohm
0.8
architecture
Bidirectional
current_measurement_range_a
±60
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
-
package
6-Pin SOIC
market
Automotive, Industrial
quiescent_output_v
2.5
features
-

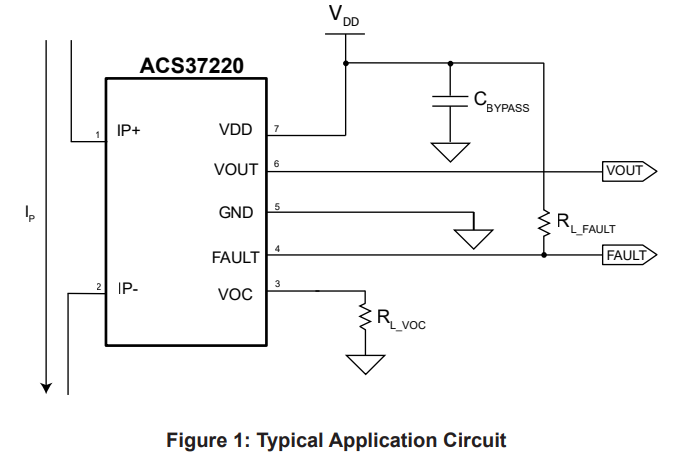

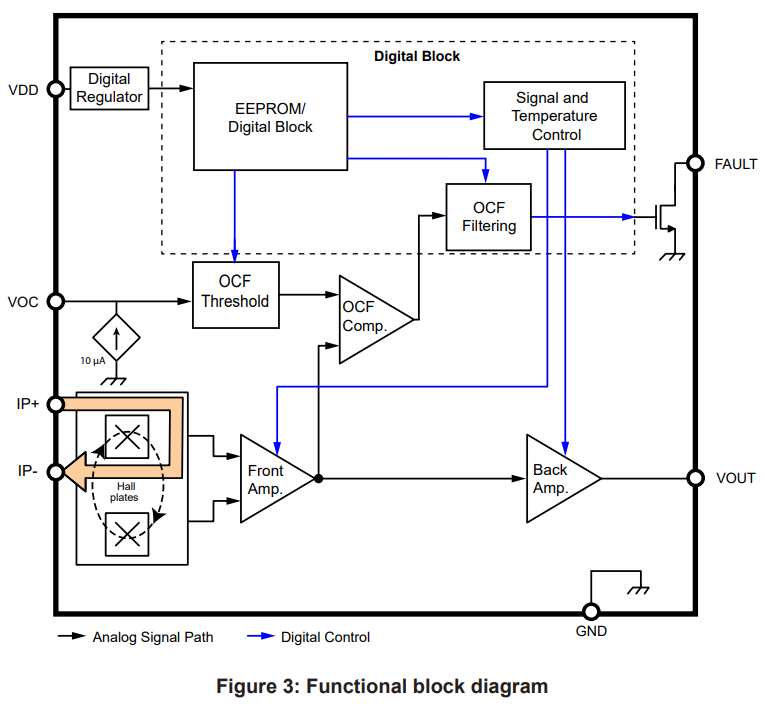

ACS37220 Product Overview

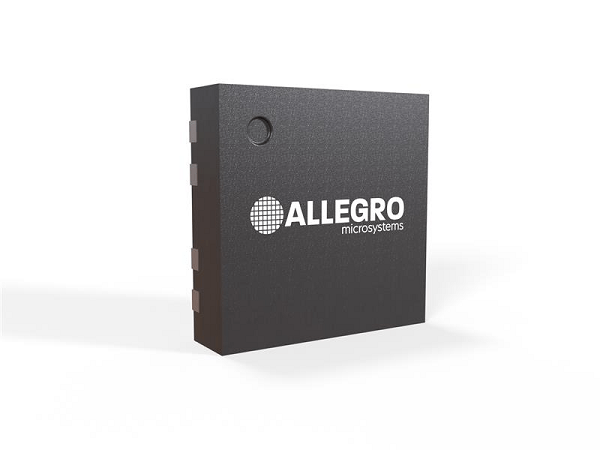

The ACS37220 is a magnetic current sensor offered in a 4x4mm QFN package designed to replace high-power sense resistors in high-current monitoring applications requiring an isolation voltage below 100V. Compared to shunts, this device provides a smaller footprint, higher efficiency and simpler integration.

0:00

Discover Allegro's Advanced Magnetic Current Sensors!

Upgrade your designs with efficient, compact, and integrated solutions. Simplify your circuits and reduce component count with Allegro's innovative sensor technology.
Replace the Shunt
replace the shunt solar panel image
