Allegro 電流センサー

過電流フォルトフォルト保護搭載の低抵抗電流センサIC

ACS37220

Markets Served

ACS37220は、自動車用途の大電流検出を簡素化します。超低抵抗 (100µΩ未満) によりが効率を向上させ、内蔵の過電流フォルトフォルト出力がシステム保護を強化します。QFNおよびSOICW-6パッケージで提供され、柔軟な設計が可能です。

LiveBench

Product Details

Top Features

  • AEC-Q100 Grade 0, automotive qualified
  • Ultra-low primary conductor resistance of 100 μΩ for high efficiency and high inrush current capability

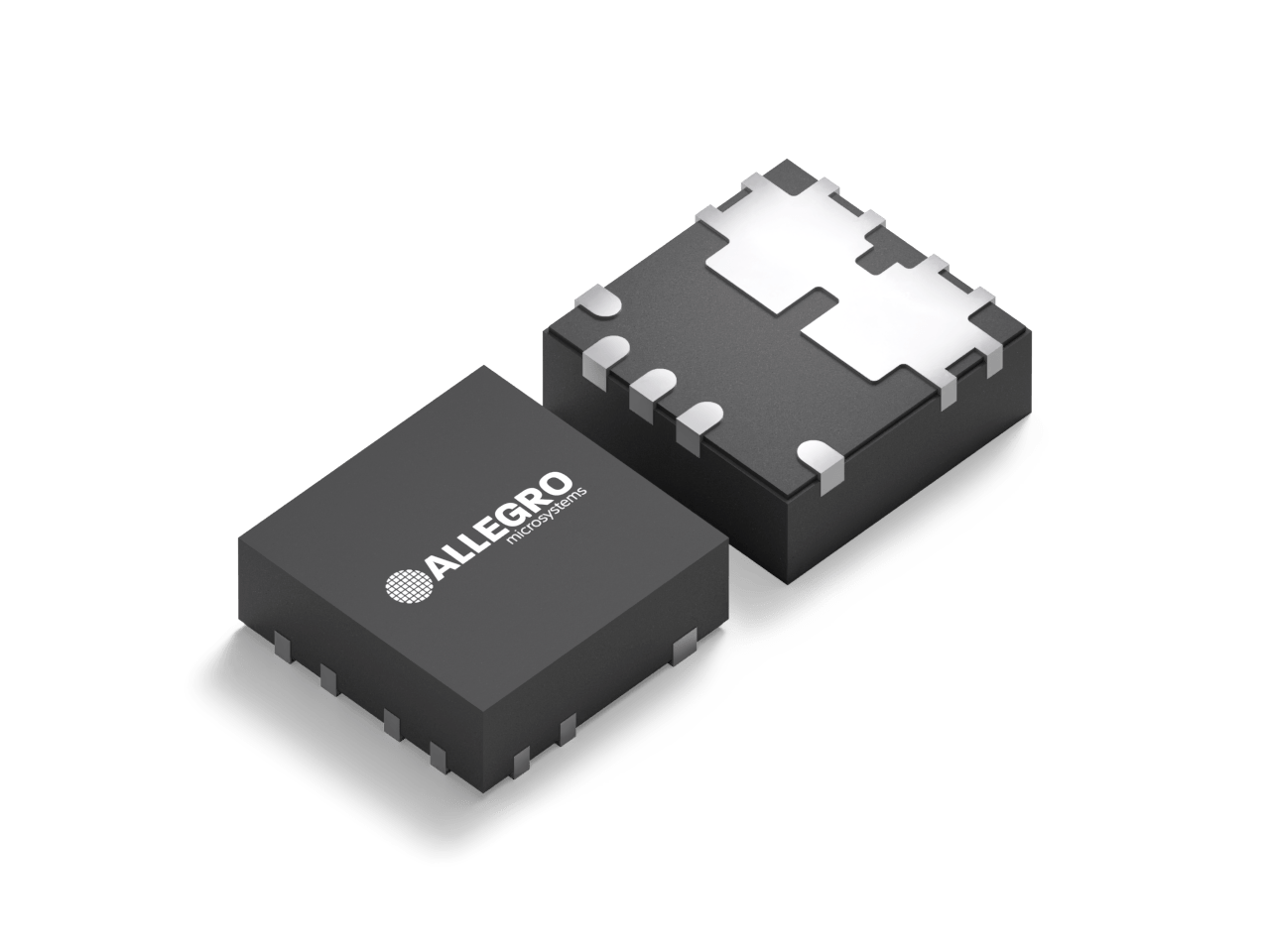

  • Small footprint, 4 mm × 4 mm QFN “EZ” package with wettable flank, suitable for space-constrained automotive applications
  • Overcurrent fault output with user-configurable threshold to provide fast short-circuit detection for enhanced system protection

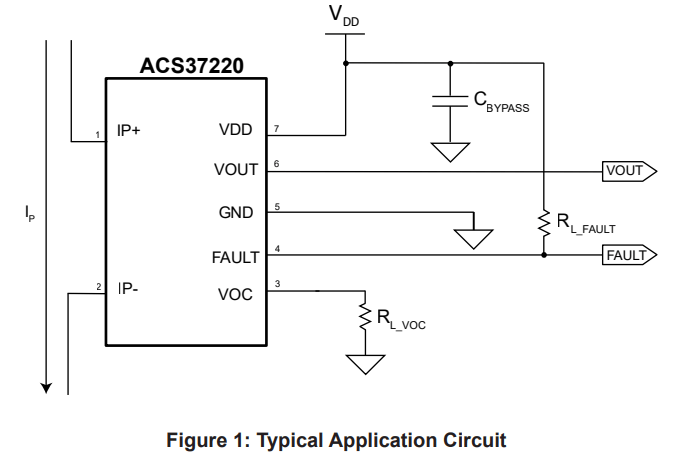

Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS37220LEZATR-050B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±50
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-100B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-100B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±100
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-150B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-150B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±150
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LEZATR-200B3

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
1.65
features
Adjustable Overcurrent Fault

ACS37220LEZATR-200B5

basic_isolation_working_voltage_vrms
-
reinforced_isolation_working_voltage_vrms
-
isolation_voltage_vrms
100
creepage_mm
1
clearance_mm
-
primary_conductor_resistance_mohm
0.1
architecture
Bidirectional
current_measurement_range_a
±200
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
Yes
package
7-Pin QFN
market
Automotive, Industrial
quiescent_output_v
2.5
features
Adjustable Overcurrent Fault

ACS37220LMZTR-060B3

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5656
creepage_mm
8.5
clearance_mm
8.5
primary_conductor_resistance_mohm
0.8
architecture
Bidirectional
current_measurement_range_a
±60
bandwidth_khz
150
supply_voltage_v
3.3
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
-
package
6-Pin SOIC
market
Automotive, Industrial
quiescent_output_v
1.65
features
-

ACS37220LMZTR-060B5

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5656
creepage_mm
8.5
clearance_mm
8.5
primary_conductor_resistance_mohm
0.8
architecture
Bidirectional
current_measurement_range_a
±60
bandwidth_khz
150
supply_voltage_v
5
temp_ranges
-40°C to 150°C
aec_q100
Yes
over_current_fault
-
package
6-Pin SOIC
market
Automotive, Industrial
quiescent_output_v
2.5
features
-

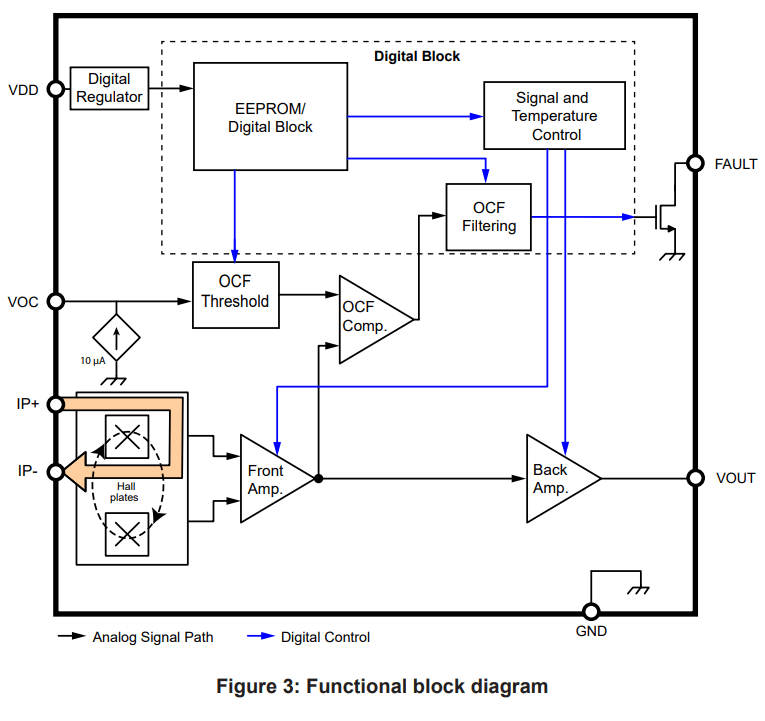

ACS37220 Product Overview

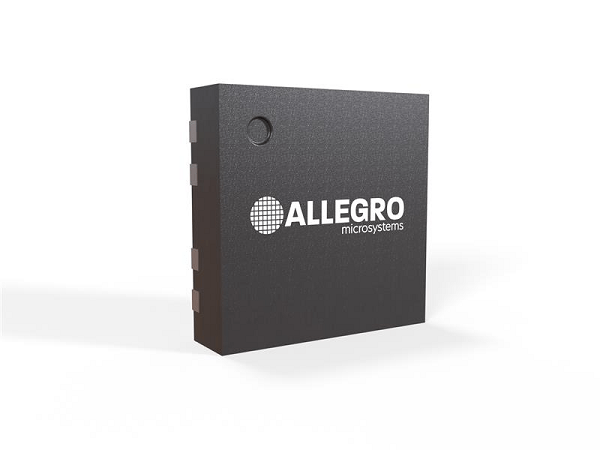

The ACS37220 is a magnetic current sensor offered in a 4x4mm QFN package designed to replace high-power sense resistors in high-current monitoring applications requiring an isolation voltage below 100V. Compared to shunts, this device provides a smaller footprint, higher efficiency and simpler integration.
