Allegro 电流传感器

具有共模抑制功能的 1MHz 差分非接触式电流传感器

CT456

Markets Served

Automotive

Consumer

Industrial

CT456 提供高精度非接触式电流感测，采用差分测量方式强化共模抑制能力，支持 1Mhz 带宽和可编程增益。

View Datasheet

Evaluation Board

LiveBench

Product Details

Top Features

Optimized for high dV/dt applications
Integrated Contactless Current/Field Sensor
Linear Analog Output Voltage
Differential measurements
1 MHz Bandwidth
Response Time < 300 ns
Very low noise: 0.92mVrms (@100kHz)
Supply Voltage: 3.3 V to 5.0 V
AEC-Q100 Grade 1

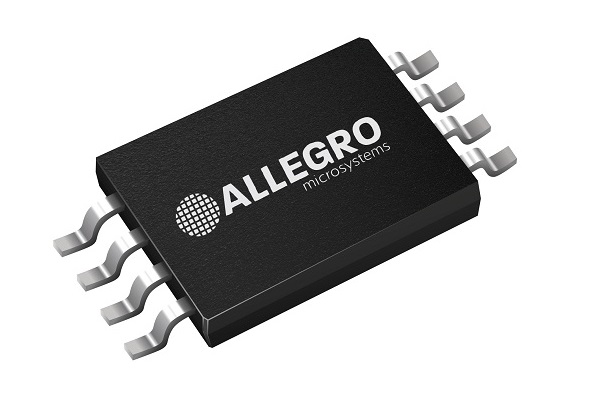

Package Options:
- 8-lead TSSOP

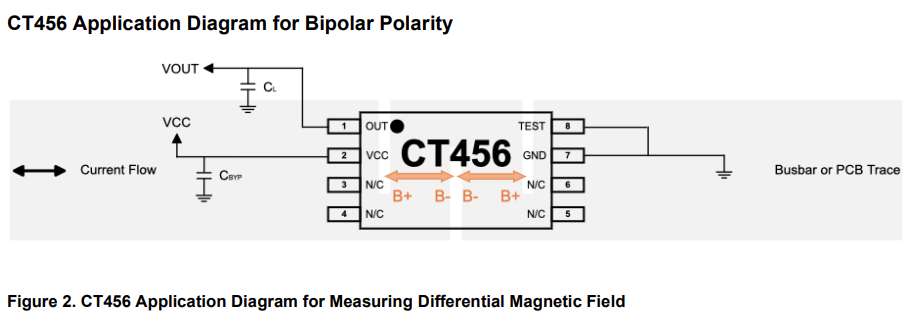

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT456-H00B3-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±240G
typical_sensitivity_mv_per_g: 2.1 to 16.67, 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 3.3
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H00B5-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±240G
typical_sensitivity_mv_per_g: 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H00U5-TS08

architecture: Unidirectional
programming: Customer Programmable
magnetic_field_range: +240G
typical_sensitivity_mv_per_g: 8.33 to 66.67, 2.1 to 16.7
quiescent_output_v: 0.5
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H06B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±60G
typical_sensitivity_mv_per_g: 33.33, 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive
