同相除去搭載の1MHz非接触差動型電流センサ

CT456

Markets Served

Automotive

Consumer

Industrial

CT456は、同相除去を強化するための差動測定、1MHzの帯域幅、プログラマブルゲインにより、高精度の非接触電流検出機能を提供します。

View Datasheet

Evaluation Board

LiveBench

Product Details

Top Features

Optimized for high dV/dt applications

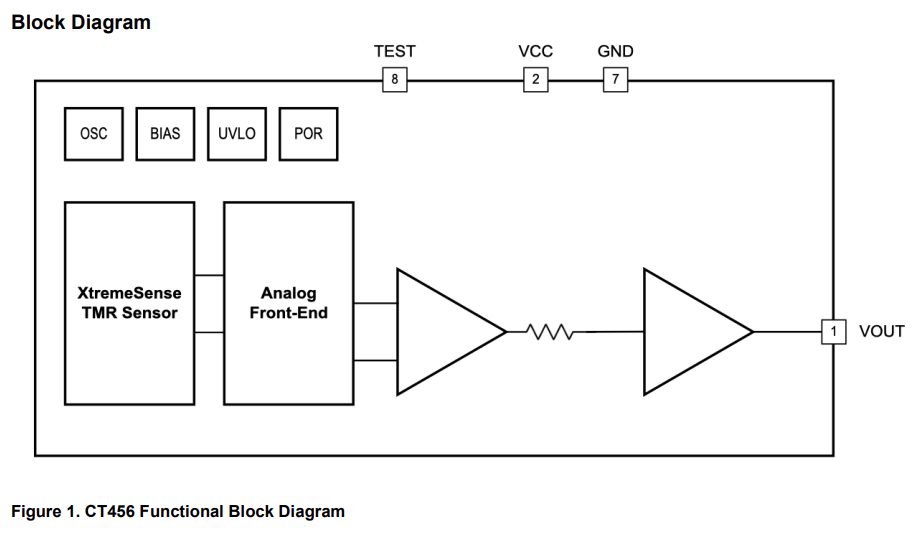

Integrated Contactless Current/Field Sensor
Linear Analog Output Voltage
Differential measurements
1 MHz Bandwidth
Response Time < 300 ns
Very low noise: 0.92mVrms (@100kHz)
Supply Voltage: 3.3 V to 5.0 V
AEC-Q100 Grade 1

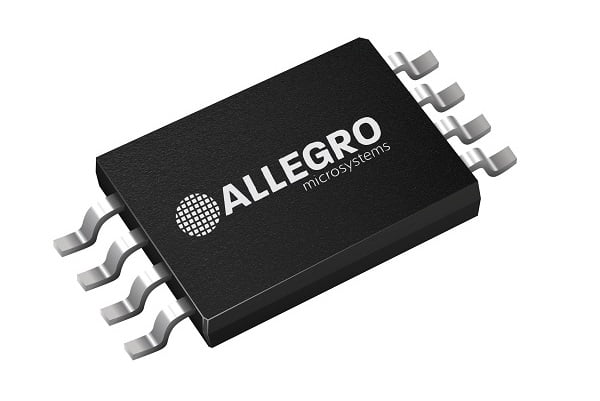

Package Options:
- 8-lead TSSOP

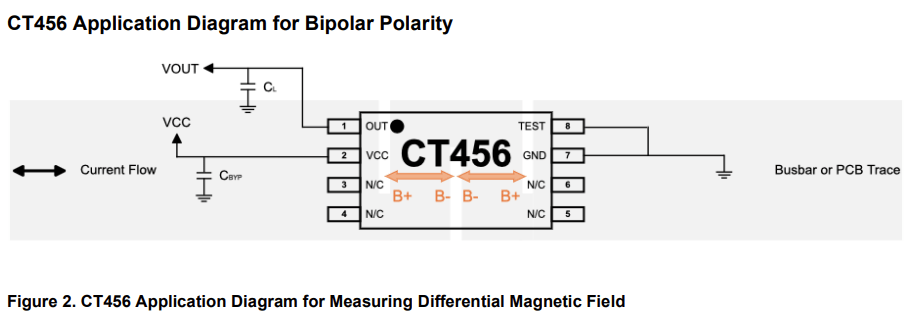

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT456-H00B3-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±240G
typical_sensitivity_mv_per_g: 2.1 to 16.67, 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 3.3
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H00B5-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±240G
typical_sensitivity_mv_per_g: 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H00U5-TS08

architecture: Unidirectional
programming: Customer Programmable
magnetic_field_range: +240G
typical_sensitivity_mv_per_g: 8.33 to 66.67, 2.1 to 16.7
quiescent_output_v: 0.5
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

CT456-H06B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±60G
typical_sensitivity_mv_per_g: 33.33, 2.1 to 16.7
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive

Discover the next generation of magnetic sensing

Efficient Power Conversion
Accurately measures the full dynamic range and provides a cleaner signal.

Adoption of Wide Bandgap Transistors
Wide bandgap transistors such as GAN and SiC require high bandwidth current sensors which XtremeSense TMR achieves without sacrificing accuracy and resolution.

Reduce the Energy Footprint
Delivers the lowest power consumption in any magnetic sensing product category.
