Allegro 电流传感器

具有可编程增益的 1MHz 带宽非接触式电流传感器

CT455

Markets Served

Automotive

Industrial

CT455 提供高精度非接触式电流感测，支持 1Mhz 带宽、具有可编程增益和低噪声性能。提供 SOIC-8 和 TSSOP-8 两种封装。

View Datasheet

Evaluation Board

LiveBench

Product Details

Top Features

Optimized for high dV/dt applications
Integrated Contactless Current/Field Sensor
Linear Analog Output Voltage
1 MHz Bandwidth
Response Time < 300 ns
Supply Voltage: 3.3 V to 5.0 V
Low Noise Performance
AEC-Q100 Grade 1
Package Options:
- 8-lead SOIC
- 8-lead TSSOP

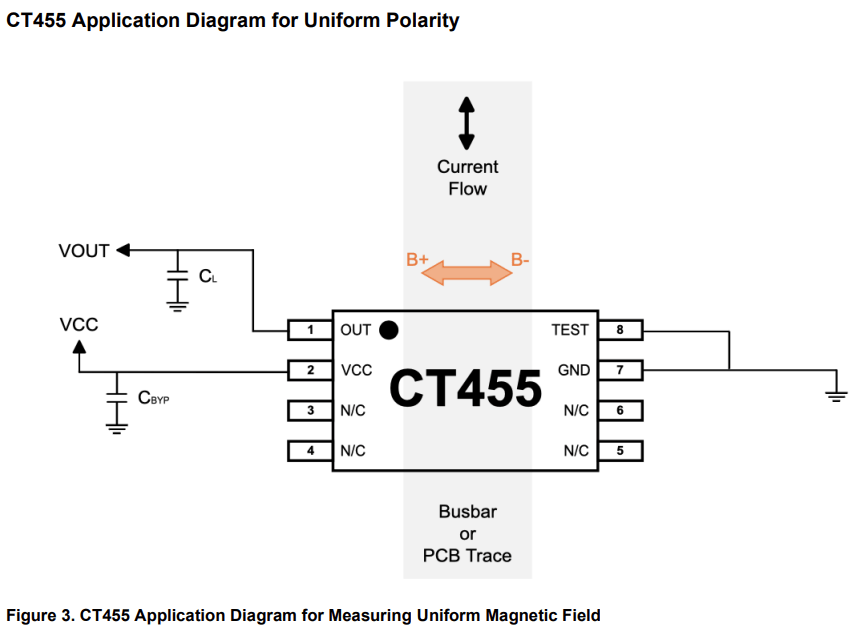

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT455-H00B3-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 2.08 to 16.67
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 3.3
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H00B5-SN08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2 to 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin SOIC
market: Automotive, Industrial

CT455-H00B5-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2 to 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H00U5-TS08

architecture: Unidirectional
programming: Customer Programmable
magnetic_field_range: +480G
typical_sensitivity_mv_per_g: 8.33 to 66.67
quiescent_output_v: 0.5
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H06B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±60G
typical_sensitivity_mv_per_g: 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H48B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial
