1MHz Bandwidth Contactless XtremeSense™ TMR Current Sensor with Programmable Gain

CT455

Markets Served

The CT455 offers high-accuracy contactless XtremeSense TMR current sensing with a 1MHz bandwidth, programmable gain, and low noise performance. Available in both SOIC-8 and TSSOP-8 packages.

View Datasheet

Evaluation Board

LiveBench

Product Details

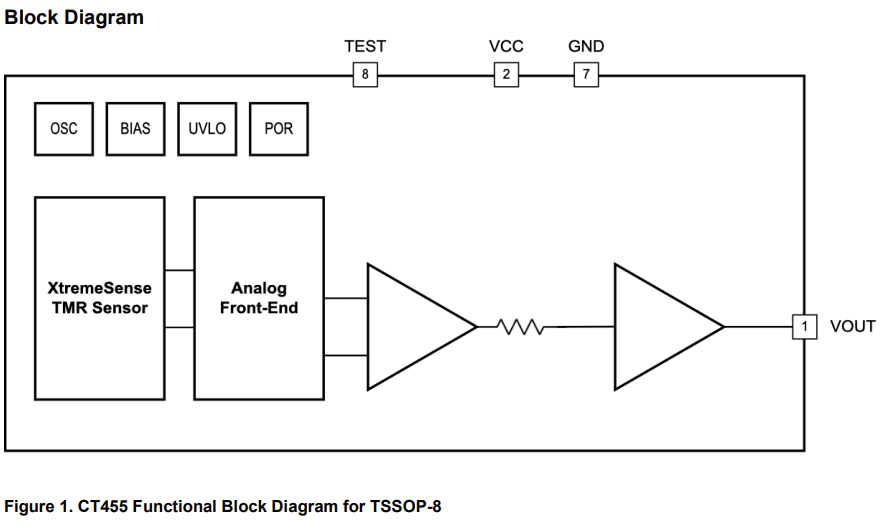

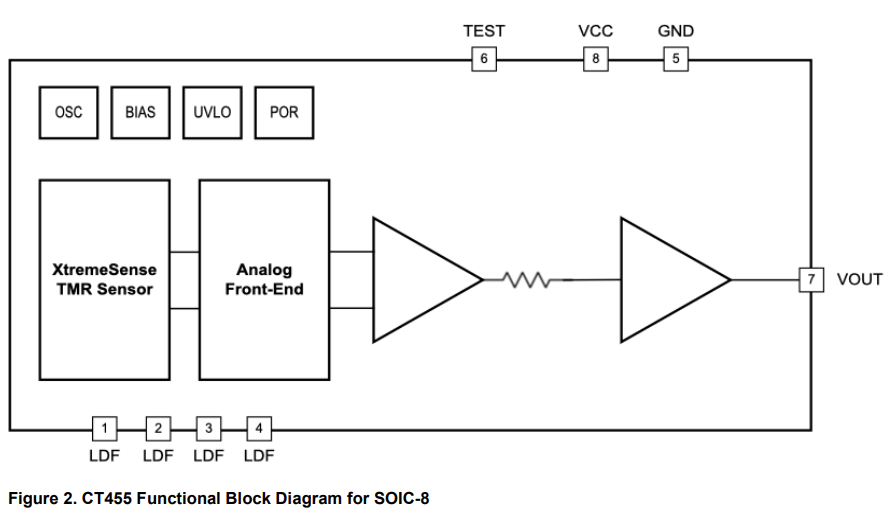

Top Features

Optimized for high dV/dt applications
Integrated Contactless Current/Field Sensor
Linear Analog Output Voltage
1 MHz Bandwidth
Response Time < 300 ns
Supply Voltage: 3.3 V to 5.0 V
Low Noise Performance
AEC-Q100 Grade 1
Package Options:
- 8-lead SOIC
- 8-lead TSSOP

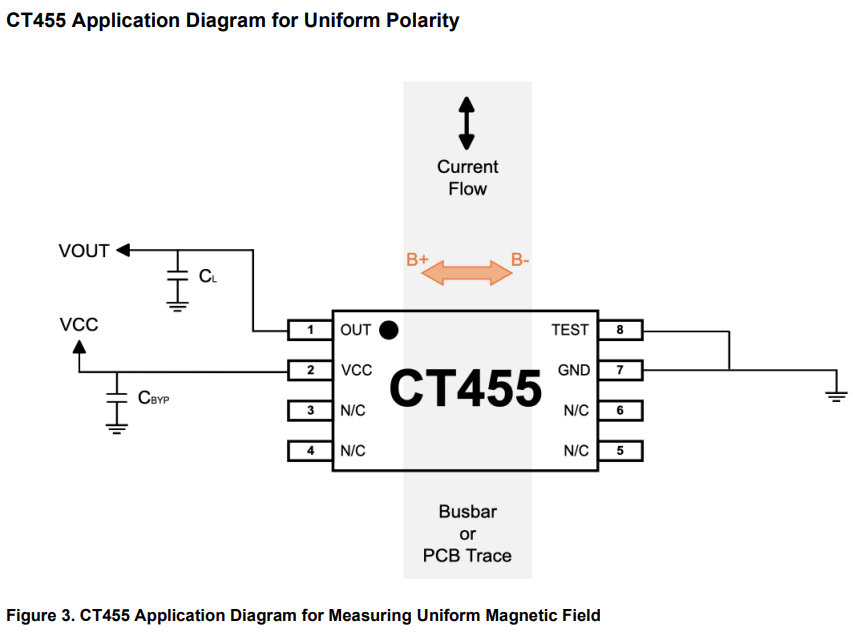

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT455-H00B3-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 2.08 to 16.67
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 3.3
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H00B5-SN08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2 to 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin SOIC
market: Automotive, Industrial

CT455-H00B5-TS08

architecture: Bidirectional
programming: Customer Programmable
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2 to 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H00U5-TS08

architecture: Unidirectional
programming: Customer Programmable
magnetic_field_range: +480G
typical_sensitivity_mv_per_g: 8.33 to 66.67
quiescent_output_v: 0.5
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H06B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±60G
typical_sensitivity_mv_per_g: 33.33
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

CT455-H48B5-TS08

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±480G
typical_sensitivity_mv_per_g: 4.2
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 1000
supply_voltage_v: 5
temp_ranges: -40°C to 125°C
over_current_fault: No
aec_q100: No
package: 8-Pin TSSOP
market: Automotive, Industrial

Discover the next generation of magnetic sensing

Efficient Power Conversion
Accurately measures the full dynamic range and provides a cleaner signal.

Adoption of Wide Bandgap Transistors
Wide bandgap transistors such as GAN and SiC require high bandwidth current sensors which XtremeSense TMR achieves without sacrificing accuracy and resolution.

Reduce the Energy Footprint
Delivers the lowest power consumption in any magnetic sensing product category.

0:00

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
