Allegro 电流传感器

集成了故障 FLAG（标志）输出功能的高线性度、高分辨率 TMR 电流传感器

CT220

Markets Served

Consumer

Industrial

CT220 提供高精度的非接触式电流感测，它具有微型封装、高线性度、高分辨率，同时还集成了用于过流检测的 FLAG（标志）输出。

View Datasheet

Product Details

Top Features

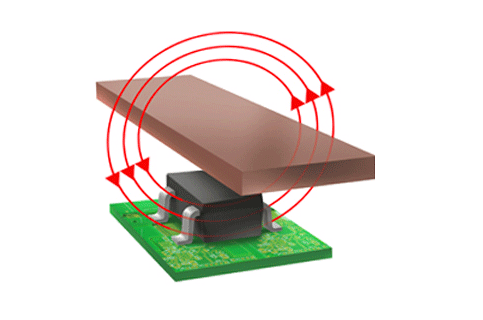

AC or DC Contactless Current Sensing Range: Up to 1,000 A
Resolution of 5 mA
Inherently High Isolation
Magnetic Field (Current) Range:
- ±1.5 mT
- ±5.0 mT
- ±10.0 mT
- ±15.0 mT
Stable Performance over Temperature
Supply Current: ~1.2 mA
FLAG Pin to Indicate 90% and 10% of Full Field Range
- Active LOW Digital Output (Push-pull)
Supply Voltage: 2.7 V to 5.5 V
Operating Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C

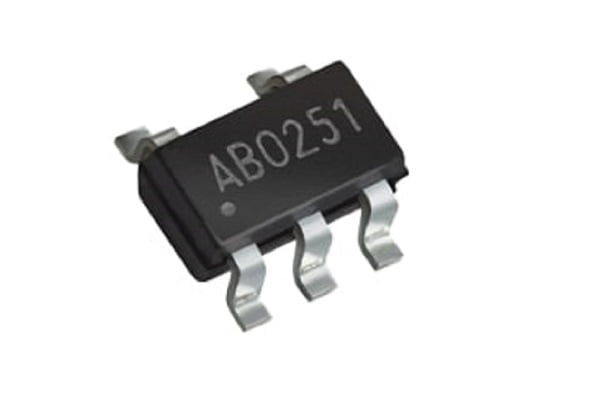

Package: 5-Lead SOT23

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT220BMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220BMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220BMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220BMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: 30, -30
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220FMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220FMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220FMV-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220PMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220PMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220RMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220RMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220RMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220RMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: 15, 9.9
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
