High-Linearity, High-Resolution XtremeSense™ TMR Current Sensor with Integrated FLAG Output

CT220

Markets Served

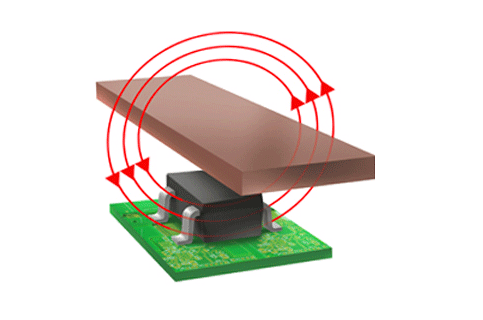

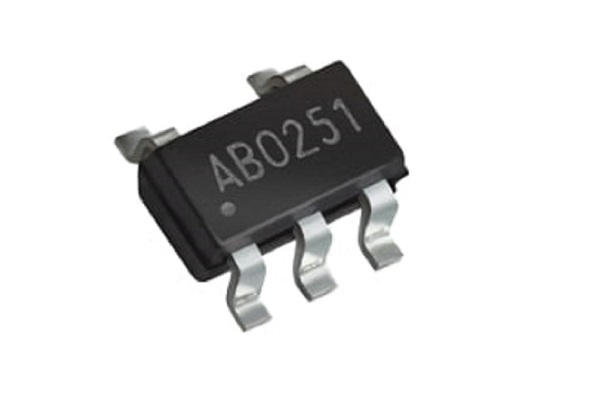

The CT220 provides high-accuracy contactless XtremeSense TMR current sensing with a miniature form factor, high linearity, high resolution, and an integrated FLAG output for overcurrent detection.

View Datasheet

Product Details

Top Features

AC or DC Contactless Current Sensing Range: Up to 1,000 A
Resolution of 5 mA
Inherently High Isolation
Stable Performance over Temperature
Supply Current: ~1.2 mA
Supply Voltage: 2.7 V to 5.5 V

Target Application

Part Number Specifications and Availability

View Full Specification Details

CT220BMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220BMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220BMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220BMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: 30, -30
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220FMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220FMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220FMV-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220PMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220PMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220RMC-HS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220RMC-IS5

architecture: -
programming: -
magnetic_field_range: -
typical_sensitivity_mv_per_g: -
quiescent_output_v: -
bandwidth_khz: -
supply_voltage_v: -
temp_ranges: -
over_current_fault: -
aec_q100: -
package: -
market: -

CT220RMV-HS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: -
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 125°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial

CT220RMV-IS5

architecture: Bidirectional
programming: Factory Programmed
magnetic_field_range: ±150G, ±100G, ±15G
typical_sensitivity_mv_per_g: 15, 9.9
quiescent_output_v: Typ 50% VCC
bandwidth_khz: 200
supply_voltage_v: 3.3, 5
temp_ranges: -40°C to 85°C
over_current_fault: Yes
aec_q100: No
package: 5-Pin SOT23
market: Industrial
