ACS37600KLUATR-003B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -

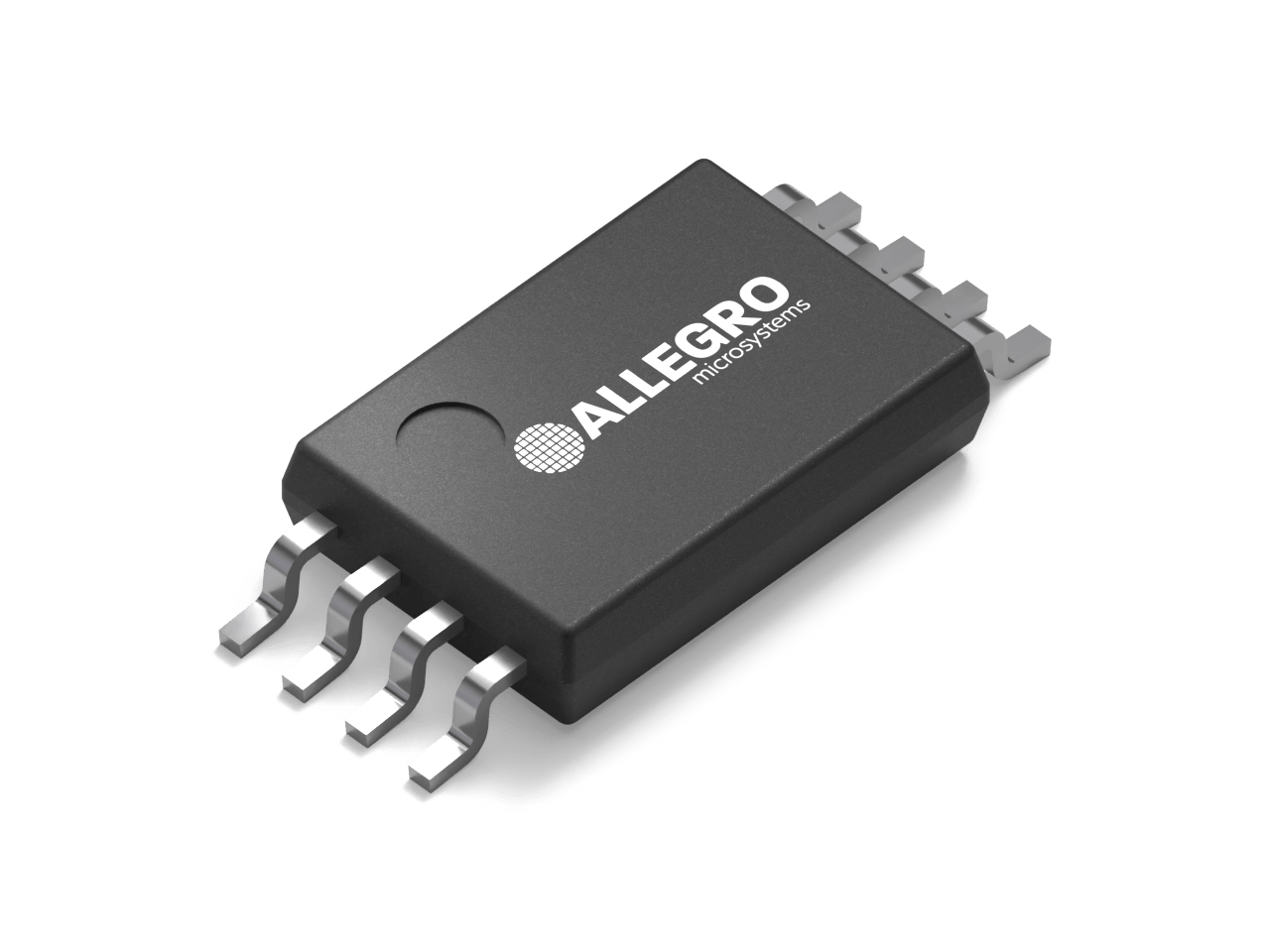

ACS37600 提供高精度电流感测能力，用户可对带宽/灵敏度/偏移进行编程控制，此外还集成了过流故障引脚和双向电压基准。
Product Details
Product Details
Top Features
- User programmable bandwidth (100 to 400 kHz)
- Very fast response time (<1.25 μs typ.)
- User programmable, bidirectional reference pin (VREF)
- User-programmable overcurrent fault (OCF)
- User-programmable sensitivity over temperature for ferromagnetic core drift compensation
Part Number Specifications and Availability
View Full Specification Details
ACS37600KLUATR-003B5-CP
- architecture
- Bidirectional
- programming
- Customer Programmable
- magnetic_field_range
- ±733G
- typical_sensitivity_mv_per_g
- -1.7 to -3.5
- quiescent_output_v
- 2.5
- bandwidth_khz
- 100 to 400
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 125°C
- over_current_fault
- No
- aec_q100
- No
- package
- 4-Pin SIP
- market
- Industrial
ACS37600KLUATR-006B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
ACS37600KLUATR-006B5-CP
- architecture
- Bidirectional
- programming
- Customer Programmable
- magnetic_field_range
- ±366G
- typical_sensitivity_mv_per_g
- -3.5 to -7.2
- quiescent_output_v
- 2.5
- bandwidth_khz
- 100 to 400
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 125°C
- over_current_fault
- No
- aec_q100
- No
- package
- 4-Pin SIP
- market
- Industrial
ACS37600KLUATR-013B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
ACS37600KLUATR-013B5-CP
- architecture
- Bidirectional
- programming
- Customer Programmable
- magnetic_field_range
- ±169G
- typical_sensitivity_mv_per_g
- -7.2 to -18
- quiescent_output_v
- 2.5
- bandwidth_khz
- 100 to 400
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 125°C
- over_current_fault
- No
- aec_q100
- No
- package
- 4-Pin SIP
- market
- Industrial
ACS37600KLUATR-1P5B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
ACS37600KOKATN-003B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
ACS37600KOKATN-006B5-C
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
