AHV85111

Self-Powered Single-Channel Isolated GaN FET Gate Driver with Regulated Bipolar Output Drive

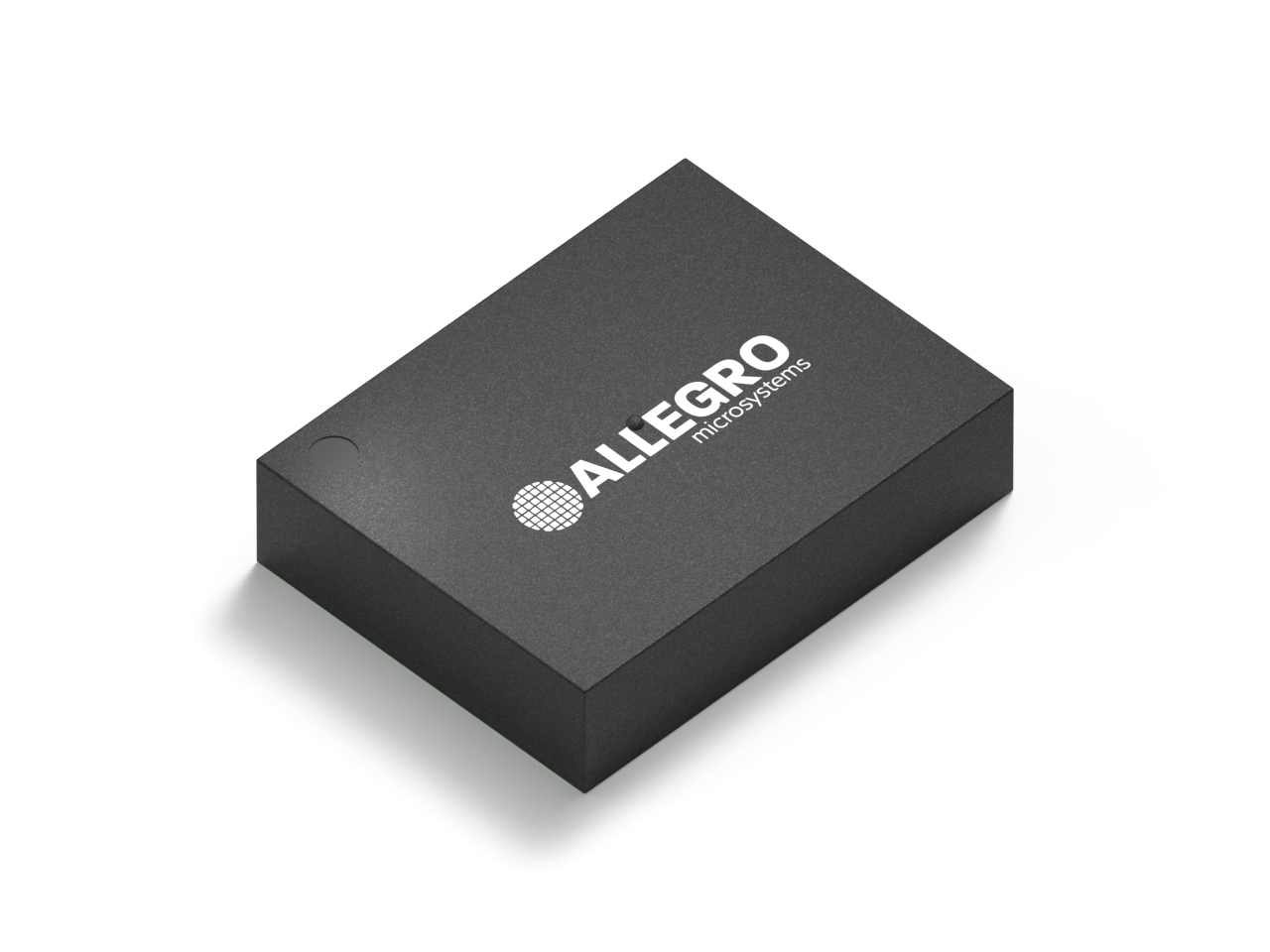

Isolated ganfet Gate Driver - NH Packaging Image

AHV85111 ECAD Model Type Image
Navigate

Description

Top Features

Typical Applications

Packaging

The AHV85111 isolated gate driver is optimized for driving GaN FETs in multiple applications. An isolated dual positive/ negative output bias supply is integrated into the driver device, eliminating external gate drive auxiliary bias supply or high-side bootstrap. The bipolar output rails with adjustable and regulated positive rail improves dv/dt immunity, greatly simplifies the system design, and reduces EMI through reduced total common mode (CM) capacitance. It also allows the driving of a floating switch in any location in a switching power topology.
  • Power-Thru integrated isolated bias
    • No high-side bootstrap or external secondary-side bias
  • Bipolar drive output, with adjustable regulated positive rail
  • Regulated 3.3 V low power bias output
  • 50 ns propagation delay, with excellent device-to-device
    matching of 5 ns
  • Separate drive output pins: pull-up (2.8 Ω) and pull-down (1.0 Ω)

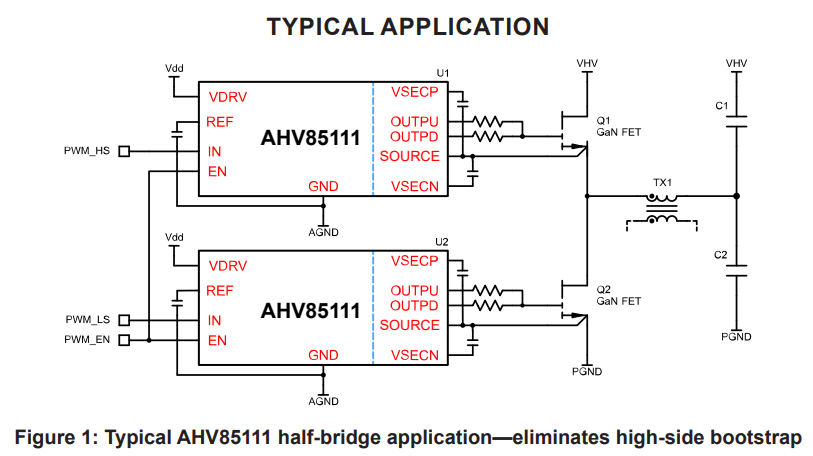

  • AC-DC and DC-DC converters – totem-pole PFC, Half-/Full-Bridge, LLC, SR Drive, multi-level converters, phase-shifted full-bridge, etc.
  • Automotive – OBC, Traction Drive
  • Industrial – Transportation, Robotics
  • Grid Infrastructure – Micro-Inverters, solar
Isolated ganfet Gate Driver - NH Packaging Image 10 mm × 7.66 mm × 2.53 mm
12-pin low-profile surface mount
× not found

Part Number Specifications and Availability

HV Isolated Gate drivers

Driver Switch #Channels Polarity Working Voltage Isolation Package Availability Datasheet Samples
Driver AHV85111 Switch GaN #Channelssingle Polarity bipolar Working Voltage630 Isolation5KV PackageNH Availabilityavailable Datasheetrequest full datasheet Samplesstay updated



HV Isolated Evaluation Boards

EVK PN Switch Supplier / PN Description Gate Driver Used
APEK85111KNH-02-T-MH E-Mode GaN GaN Systems GS66508B Half-bridge bipolar driver-switch board AHV85111 Buy Now
