Brushless DC Drivers

具有快速启动功能的三相无传感器泵驱动器芯片

A89303

Markets Served

A89303 专为汽车燃油泵应用而设计，具备快速启动能力（50 毫秒内达到满速）、无传感器梯形驱动以及集成保护功能，确保可靠运行。

View Datasheet
Evaluation Board

Product Details

Top Features

  • Fast start up features enable easier kick-start
  • Internal logic regulator ensures low EMI
  • Sensorless drive lowers motor BOM
  • Digital algorithm and EEPROM parameter settings provide flexibility and reduces design time
  • Small QFN packaging offers smallest system footprint

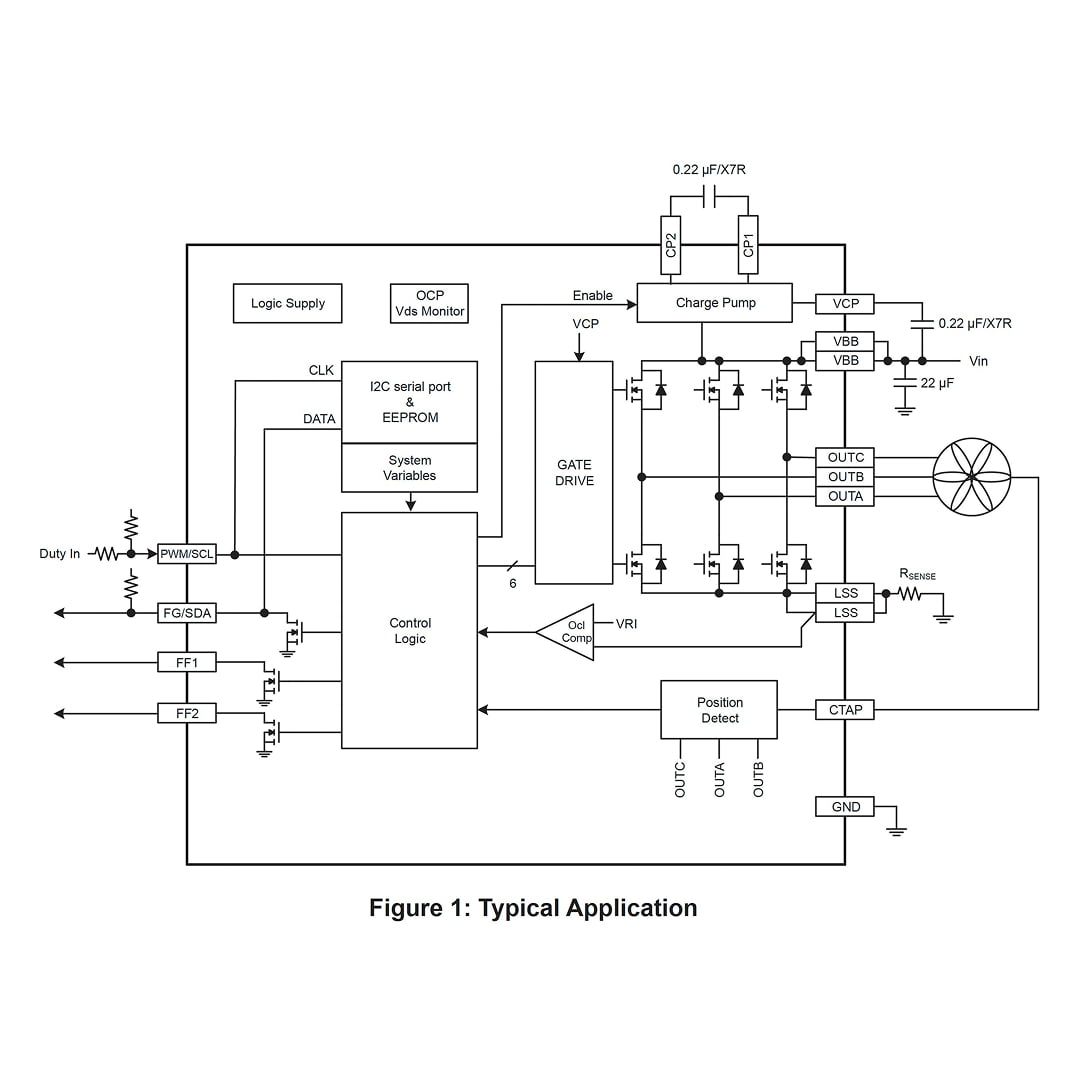

Target Application

Part Number Specifications and Availability

View Full Specification Details

A89303KETSR-J

supply_voltage_min_v
4.4
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PWM Speed, I²C
rds_on
0.52
commutation
Trapezoidal
motor_positioning_method
Sensorless
sleep_current
NA
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 125°C
package
32-Pin QFN
market
Automotive
typical_load_current_a
0-3

A89303KLPTR-T

supply_voltage_min_v
4.4
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PWM Speed, I²C
rds_on
0.52
commutation
Trapezoidal
motor_positioning_method
Sensorless
sleep_current
NA
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 125°C
package
20-Pin TSSOP
market
Automotive
typical_load_current_a
0-3
