有刷直流和步进电机驱动器

具有自适应电流控制功能、可实现安静运行的 DMOS 微步进驱动器

A5984

Markets Served

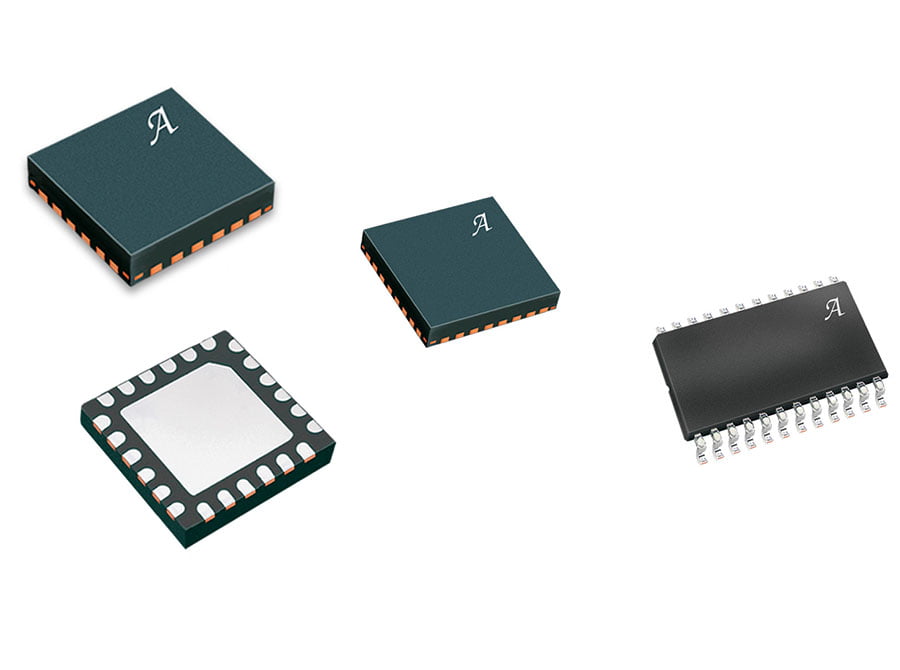

A5984 提供安静精准的步进电机控制，采用自适应电流控制以最大限度降低噪音和振动，并配备集成逻辑转换器和可选步进模式，从而简化设计。

A5984 数据表
Evaluation Board

Product Details

Top Features

  • A4984 的便利替代品
  • 专利自适应百分比快速衰减选项
  • 低 RDS(on) 输出
  • 单电源
  • 微步进中一个整步可以有多达 32 微步
  • 全扭矩步进模式
  • 接地短路保护
  • 短路负载保护
  • 电池短路保护
  • 故障输出
  • 低电流睡眠模式，< 10 μA
  • 符合无烟无火 (NSNF) 要求 (ET 封装)
  • 超薄 QFN 和 TSSOP 封装
  • 热关机电路
  • 同步整流，减少功耗
  • 内部 UVLO
  • 交叉电流保护
Target Application

Part Number Specifications and Availability

View Full Specification Details

A5984GESTR-T

supply_voltage_min_v
8
supply_voltage_max_v
40
peak_output_current_a
2
architecture
Integrated MOSFET
sleep_current
10
current_sense_amplifier
Integrated
market
Automotive, Industrial

A5984GETTR-T

supply_voltage_min_v
8
supply_voltage_max_v
40
peak_output_current_a
2
architecture
Integrated MOSFET
sleep_current
10
current_sense_amplifier
Integrated
market
Automotive, Industrial

A5984GLPTR-T

supply_voltage_min_v
8
supply_voltage_max_v
40
peak_output_current_a
2
architecture
Integrated MOSFET
sleep_current
10
current_sense_amplifier
Integrated
market
Automotive, Industrial
