有刷直流和步进电机驱动器

具有集成保护和诊断功能的直流电机驱动器

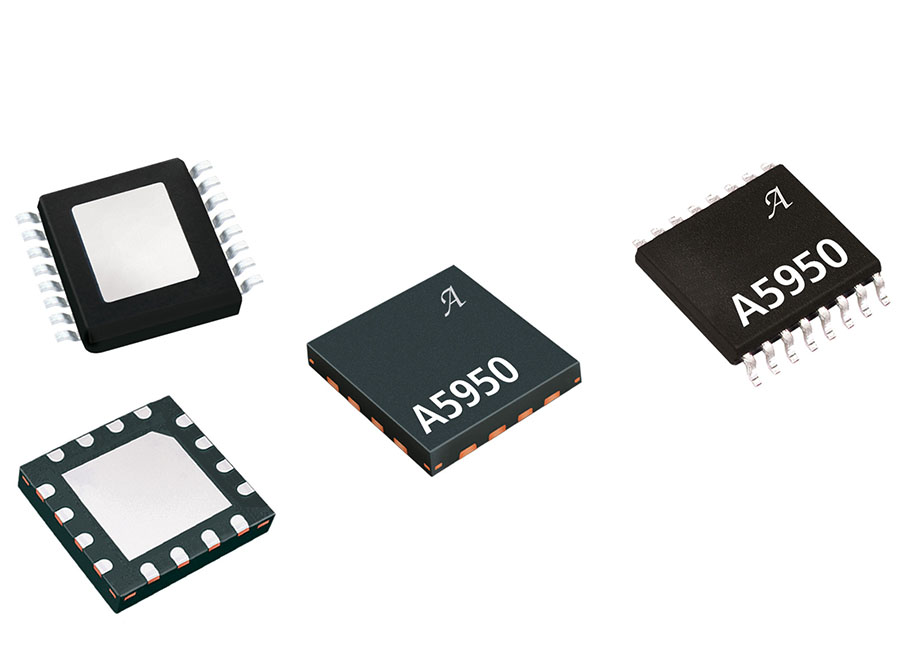

A5950

Markets Served

A5950 为直流电机提供高效灵活的 PWM 控制，具有集成保护功能、同步整流和诊断能力，可增强系统监控和可靠性。有车用与商用两种规格。

A5950 数据表

Product Details

Product Details

Top Features

过电流保护 (OCP)
电机引线接地短路保护
电机引线电池短路保护
电机短路保护
低功率待机模式
故障输出
可调电流限制选项
电流 - 电压输出
同步整流 - 高侧
内部 UVLO
交叉电流保护
热警告和过温关机
符合 AEC-Q100 Grade 0 标准 - K 版
汽车应用温度范围：A5950KEUSR-J –40 至 125
汽车应用温度范围：A5950KLPSR-T –40 至 125

Target Application

Part Number Specifications and Availability

View Full Specification Details

A5950GEUSR-T

supply_voltage_min_v: 5.5
supply_voltage_max_v: 40
peak_output_current_a: 3
architecture: Integrated MOSFET
control_interface: PH/EN
rds_on: 0.95
sleep_current: 5
current_sense_amplifier: Integrated
typical_load_current_a: 0-3
package: 16-Pin QFN
market: Industrial

A5950GLPTR-T

supply_voltage_min_v: 5.5
supply_voltage_max_v: 40
peak_output_current_a: 3
architecture: Integrated MOSFET
control_interface: PH/EN
rds_on: 0.95
sleep_current: 5
current_sense_amplifier: Integrated
typical_load_current_a: 0-3
package: -
market: Industrial

A5950KEUSR-J

supply_voltage_min_v: 5.5
supply_voltage_max_v: 40
peak_output_current_a: 3
architecture: Integrated MOSFET
control_interface: PH/EN
rds_on: 0.95
sleep_current: 5
current_sense_amplifier: Integrated
typical_load_current_a: 0-3
package: 16-Pin QFN, 16-Pin TSSOP
market: Automotive

A5950KLPTR-T

supply_voltage_min_v: 5.5
supply_voltage_max_v: 40
peak_output_current_a: 3
architecture: Integrated MOSFET
control_interface: PH/EN
rds_on: 0.95
sleep_current: 5
current_sense_amplifier: Integrated
typical_load_current_a: 0-3
package: 16-Pin TSSOP
market: Automotive
