Brush DC Drivers

DC Motor Driver with Integrated Protection and Diagnostics

A5950

Markets Served

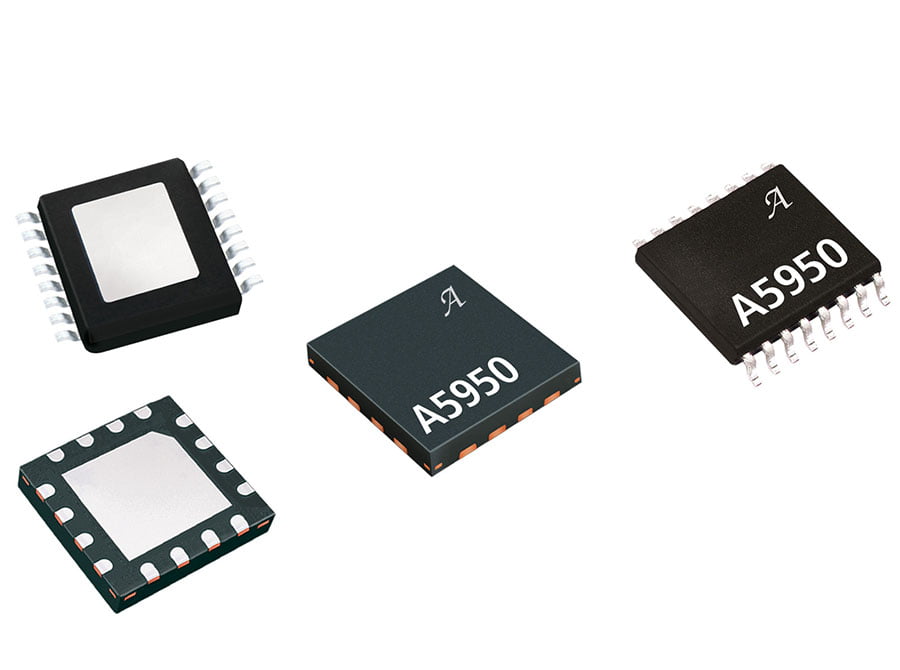

The A5950 offers efficient and versatile PWM control of DC motors, with integrated protection features, synchronous rectification, and diagnostic capabilities for enhanced system monitoring and reliability. Available in automotive and commercial grades.

View Datasheet

Product Details

Top Features

  • Overcurrent protection (OCP)
  • Motor lead short-to-ground protection
  • Motor lead short-to-battery protection
  • Motor short protection
  • Low-power standby mode
  • Fault output
  • Adjustable current limit option
  • Current-to-voltage output
  • Synchronous rectification – high-side
  • Internal UVLO
  • Crossover-current protection
  • Thermal warning and shutdown function
  • AEC-Q100 Grade 0 qualified – K version
  • Automotive Temperature Range: A5950KEUSR-J -40°C to 125°C
  • Automotive Temperature Range: A5950KLPSR-T -40°C to 125°C
Target Application

Part Number Specifications and Availability

View Full Specification Details

A5950GEUSR-T

supply_voltage_min_v
5.5
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PH/EN
rds_on
0.95
sleep_current
5
current_sense_amplifier
Integrated
typical_load_current_a
0-3
package
16-Pin QFN
market
Industrial

A5950GLPTR-T

supply_voltage_min_v
5.5
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PH/EN
rds_on
0.95
sleep_current
5
current_sense_amplifier
Integrated
typical_load_current_a
0-3
package
-
market
Industrial

A5950KEUSR-J

supply_voltage_min_v
5.5
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PH/EN
rds_on
0.95
sleep_current
5
current_sense_amplifier
Integrated
typical_load_current_a
0-3
package
16-Pin QFN, 16-Pin TSSOP
market
Automotive

A5950KLPTR-T

supply_voltage_min_v
5.5
supply_voltage_max_v
40
peak_output_current_a
3
architecture
Integrated MOSFET
control_interface
PH/EN
rds_on
0.95
sleep_current
5
current_sense_amplifier
Integrated
typical_load_current_a
0-3
package
16-Pin TSSOP
market
Automotive
