A81411KEVGTR
- operating_input_voltage_min_v
- 3.2
- operating_input_voltage_max_v
- 36
- topology
- Buck-Boost, LDO
- temperature
- -40°C to 150°C
- package

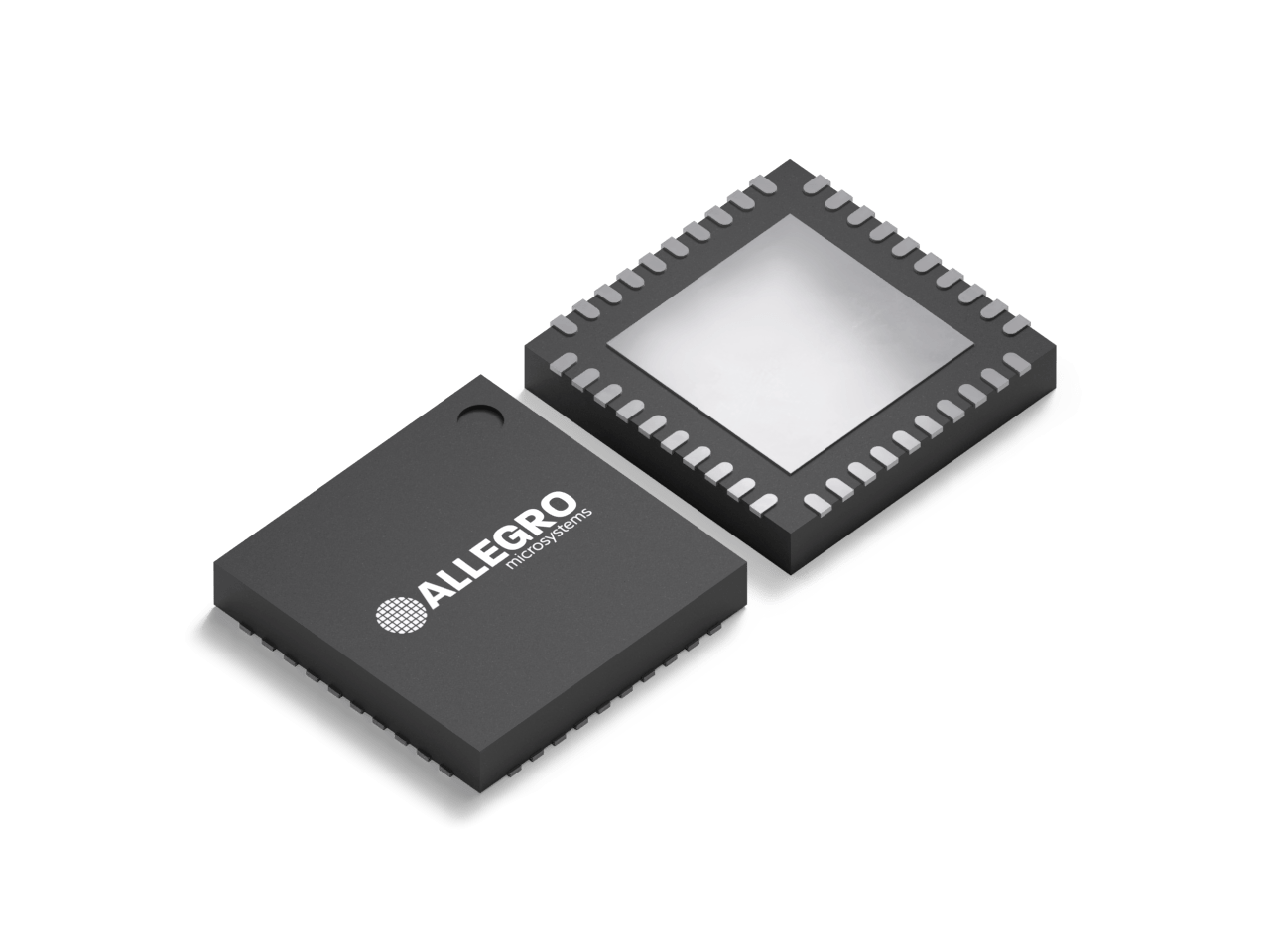

- 40-Pin QFN
- market
- Automotive
A81411は、昇降圧プリレギュレータ、5つのリニア レギュレータ (バッテリ短絡保護機能付きLDOを含む)、柔軟な設定と診断のためのSPI制御を統合して、自動車の電源設計を簡素化します。
Product Details
Product Details
Top Features
- A2-SIL™ product: Developed as a hardware safety element out of context with ASIL D capability for use in automotive safety-related systems
- Automotive AEC-Q100 Grade 0 qualified
- Wide input range: 3.2 to 36 V VIN operating, 40 V VIN maximum
- 2.2 MHz synchronous buck-boost preregulator (VREG: 5.35 V) with internal compensation
- Five internal linear regulators with fold-back short-circuit protection
- VUC: 3.3 V or 5 V (selectable by a pin) regulator for microcontroller
- VLDOA: 5 V (or 3.3 V factory option) general-purpose low-dropout (LDO) regulator
- VLDOB: 5 V or 3.3 V (selectable by a pin) always-on LDO regulator
- VLDOP1 and VLDOP2: Two programmed (5 V or 3.3 V) and enabled via serial-port-interface (SPI) LDO regulators with short-to-battery protection for remote sensors
- Pulse-width watchdog (PWWD), window watchdog
Part Number Specifications and Availability
View Full Specification Details
A81411KEVGTR-1
- operating_input_voltage_min_v
- 3.2
- operating_input_voltage_max_v
- 36
- topology
- Buck-Boost, LDO
- temperature
- -40°C to 150°C
- package
- 40-Pin QFN
- market
- Automotive
