AHV85311K15NKTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC, GIT GaN
- polarity
- Bipolar
- package

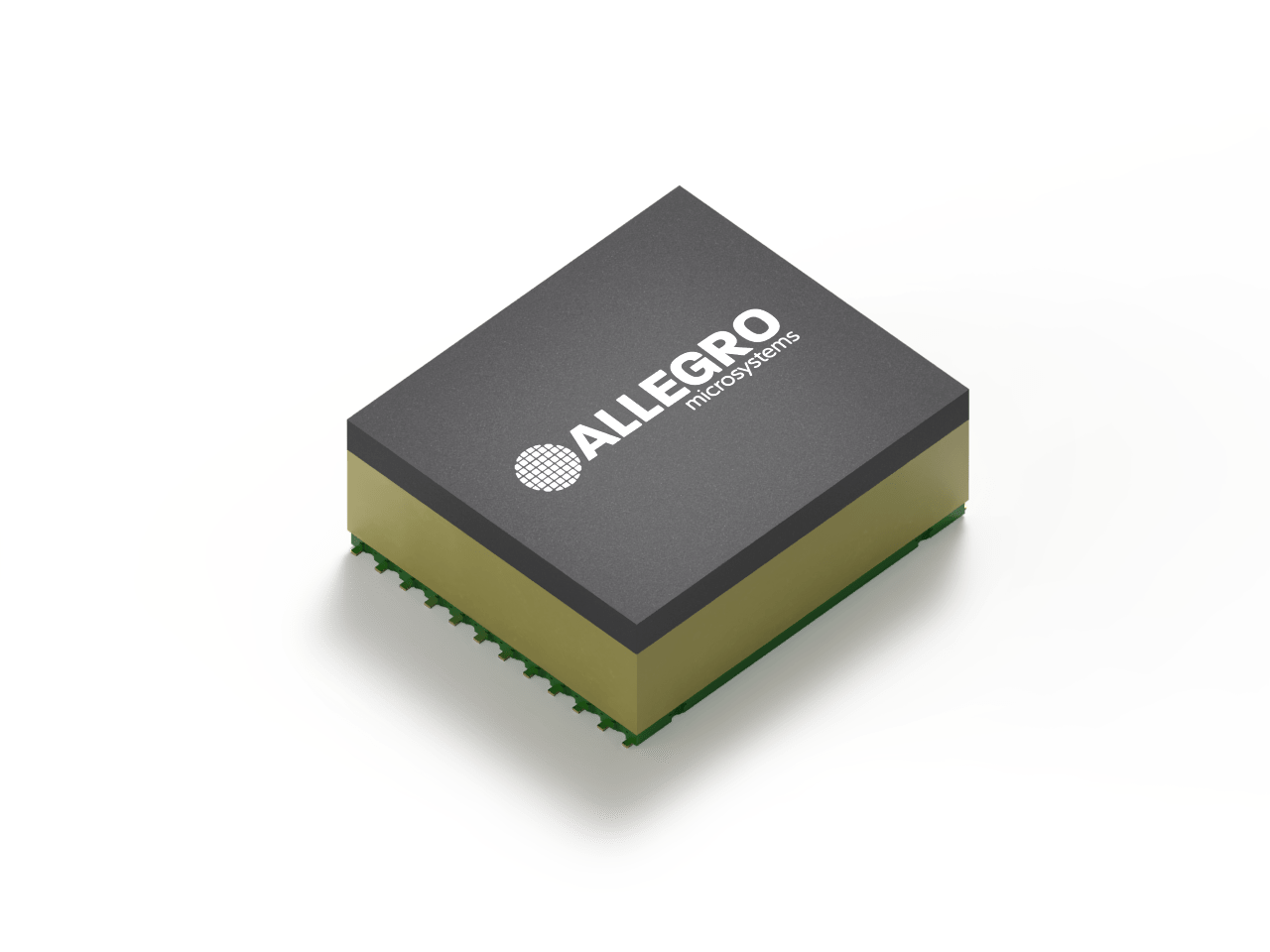

- NK
- market
- Automotive, Industrial
絶縁ゲート ドライバー

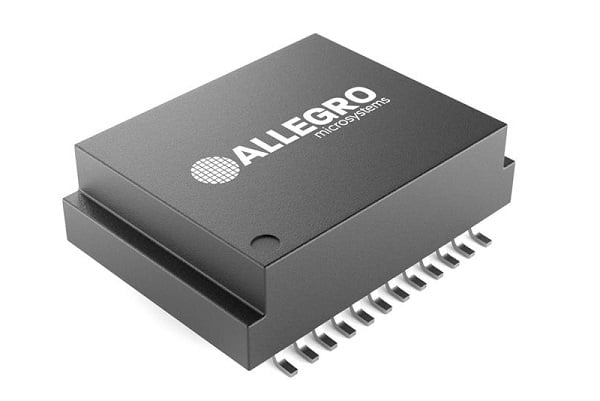

Self-Powered Isolated SiC Driver with Power-Thru Integrated Isolated Bias Supply
AHV85311
The AHV85311 is an isolated gate driver optimized for discrete SiC FETs, featuring an integrated dual positive/negative output bias supply to simplify system design. Its bipolar output rails offer a selectable regulated positive and adjustable negative off-state for improved dv/dt immunity.
Product Details
Product Details
Top Features
- Power-Thru integrated isolated bias supply
- No high-side bootstrap or external bias
- Bipolar drive, selectable regulated positive/negative rails
- Capable of delivering up to 130 nC gate charge at 25 V
- 50-ns prop delay, <10 ns skew & pulse-width-distortion
- Separate output pins pull-up (6 A) & pull-down (6 A)
- Miller clamp (internal & external options)
- Supply voltage 10.5 V < VDRV < 13.2 V
- UVLO on primary VDRV and secondary VSECP supply rails
- EN enable input and FAULT output pins
- Over-temperature protection
- CMTI > 100 V/ns dv/dt immunity
- Low input-output capacitance <3 pF
- Wide operating temperature range TA -40°C to 125°C
- Reinforced isolation, package creepage/clearance > 8 mm
- Safety Ratings
- Dynamic offset cancellation
- 5.7 kV RMS VISO per UL 1577
- 8 kV pk VIOTM maximum transient isolation voltage
- 1.5 kV pk VIORM working isolation voltage
Target Application
- DC-DC Converter
- Auxilary Inverter
- On-board Charger
- Server Power
- C&I Solar String Inverters
Part Number Specifications and Availability
View Full Specification Details
AHV85311K15NLTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC, GIT GaN
- polarity
- Bipolar
- package
- NL
- market
- Automotive, Industrial
AHV85311K18NKTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC
- polarity
- Bipolar
- package
- NK
- market
- Automotive, Industrial
AHV85311K18NLTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC
- polarity
- Bipolar
- package
- NL
- market
- Automotive, Industrial
AHV85311K20NKTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC
- polarity
- Bipolar
- package
- NK
- market
- Automotive, Industrial
AHV85311K20NLTR
- working_voltage_v
- 1500
- reel_size
- 500
- channels
- Single
- switch
- SiC
- polarity
- Bipolar
- package
- NL
- market
- Automotive, Industrial
Allegro High Voltage Gate Drivers
GaN and SiC power devices are expected to rapidly gain market share in electric vehicle and green energy applications. Allegro’s isolated gate driver solutions use a single, small-footprint package that integrates an isolated gate driver, an isolated power supply, and associated passive components.
This significantly reduces system design time and complexity and makes it possible for designers to take advantage of the full efficiency benefits that WBG switches provide. Additionally, the reduced system design time and complexity help alleviate the need for additional engineering and design resource
