A33230LLHALT-XY-S-AR-03
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package

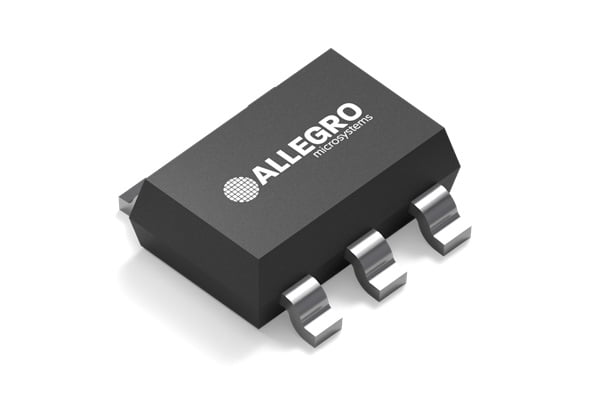

- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230 提供精确的 3D 磁场感测与正弦/余弦输出，可以精确测量角度。其预设的感应轴组合以及小尺寸封装可以简化集成。
Product Details
Product Details
Top Features
- Smallest package available (SOT23-W)
- 3D sensing capable
- Fast response/low latency
- Sine/cosine outputs
- Simple and flexible
- Two sensitivity options
- AEC-Q100 grade 0 automotive qualified
Target Application
Part Number Specifications and Availability
View Full Specification Details
A33230LLHALT-XY-S-AR-10
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package
- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230LLHALT-XZ-S-AR-03
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- XZ
- temp_range
- -40°C to 150°C
- package
- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230LLHALT-XZ-S-AR-10
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- XZ
- temp_range
- -40°C to 150°C
- package
- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230LLHALT-YZ-S-AR-03
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- YZ
- temp_range
- -40°C to 150°C
- package
- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230LLHALT-YZ-S-AR-10
- response_time_us
- 7
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 11 bit
- sensitive_axis
- YZ
- temp_range
- -40°C to 150°C
- package
- 5-Pin SOT23W
- sensor_type
- Hall
- market
- Automotive
A33230LLHALX-XY-S-AR-03
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
A33230LLHALX-XY-S-AR-10
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
A33230LLHALX-XZ-S-AR-03
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
A33230LLHALX-XZ-S-AR-10
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
A33230LLHALX-YZ-S-AR-03
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
A33230LLHALX-YZ-S-AR-10
- response_time_us
- -
- output_type
- -
- supply_voltage_v
- -
- resolution
- -
- sensitive_axis
- -
- temp_range
- -
- package
- -
- sensor_type
- -
- market
- -
