XtremeSense TMR 电流传感器，具有高 dV/dt 抗扰性能与 5kV 隔离

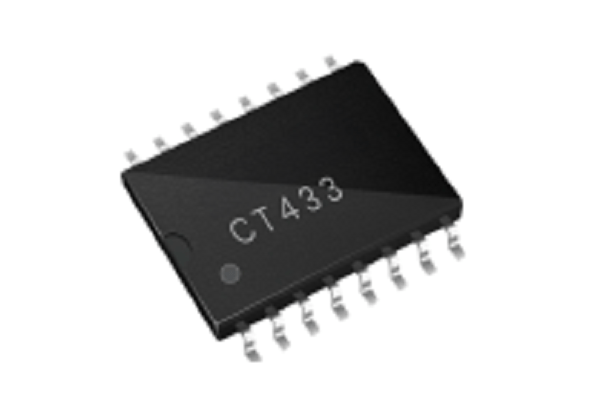

CT433

CT433 为高 dV/dt 应用提供精确电流测量，具有高带宽、超低噪声、5kV 隔离能力和集成的载流导体（CCC）。工作电压为 3.3V。

View Datasheet

Product Details

Top Features

Optimized for high dV/dt applications
Total Error Output: ±0.5% FS
300 ns Response Time, 1 MHz Bandwidth
Noise as Low as 9.5 mARMS
Integrated 0.5 mΩ Conductor
VCC = 3.3 V
Common Mode Field Rejection: -54 dB
Rated Isolation Voltage: >5 kVRMS
UL/IEC 62368-1 and UL1577 Certification
IEC 61000-4-5 Certified
AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK
- +70.0 ADC / ±70.0 APK
16-Lead SOIC-Wide package
8mm creepage package

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
