A1366LKTTF-1-T
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -

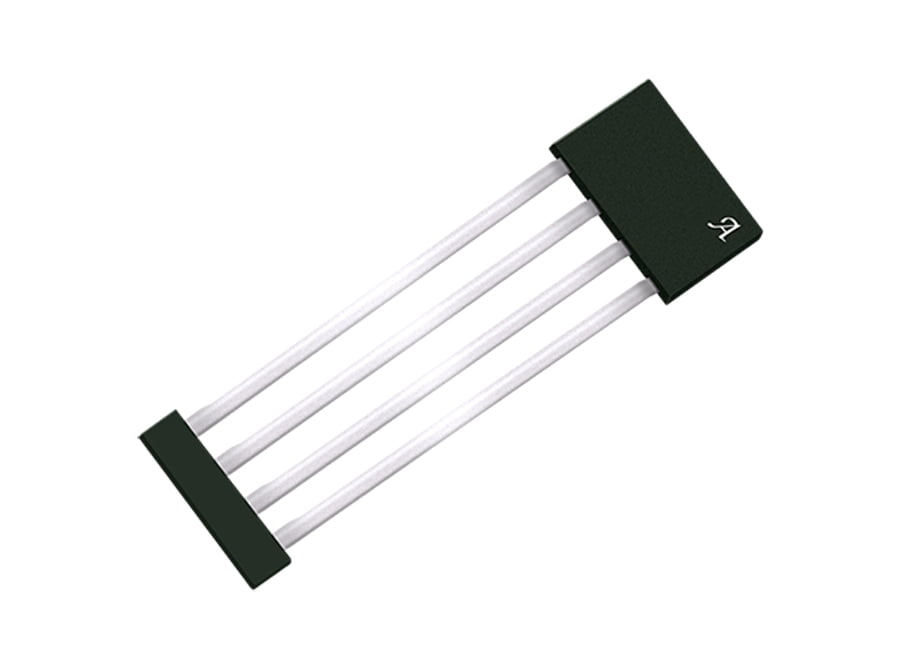

A1366 采用工厂预设的灵敏度和偏移，先进的温度补偿技术和高带宽（120kHz），实现精确而稳定的磁场感测，简化设计。
Product Details
Product Details
Top Features
- 使用高分辨率在工厂编程灵敏度和静态输出电压
- 专有的分段线性插值温度补偿 (TC) 技术在整个工作温度范围内提供典型的准确性 (1%)
- 通过专有的霍尔元件和低噪音放大器电路实现极低噪音和高分辨率
- 通过专有封装和斩波稳定技术实现 120 kHz 标称带宽
- 获专利电路可抑制快速电路步进输入期间的 IC 输出尖峰
- 接地引脚有开路检测（断线）
- VCC 低于规定值时欠压锁定
- 成比例的灵敏度和静态电压输出
- 温度循环后精确的可恢复性
- 较宽的环境温度范围：–40°℃ 至 150°℃
- 抗机械应力
- 超薄封装：1 mm 箱体厚度
- AEC Q-100 汽车级
Target Application
- Auxilary Inverter
Part Number Specifications and Availability
View Full Specification Details
A1366LKTTF-2-T
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
A1366LKTTG-1-T
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
A1366LKTTG-2-T
- architecture
- -
- programming
- -
- magnetic_field_range
- -
- typical_sensitivity_mv_per_g
- -
- quiescent_output_v
- -
- bandwidth_khz
- -
- supply_voltage_v
- -
- temp_ranges
- -
- over_current_fault
- -
- aec_q100
- -
- package
- -
- market
- -
A1366LKTTN-1-T
- architecture
- Bidirectional
- programming
- Factory Programmed
- magnetic_field_range
- ±2250G
- typical_sensitivity_mv_per_g
- 0.975 to 1.025
- quiescent_output_v
- Typ 50% VCC
- bandwidth_khz
- 120
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 150°C
- over_current_fault
- No
- aec_q100
- Yes
- package
- 4-Pin SIP
- market
- Automotive
A1366LKTTN-10-T
- architecture
- Bidirectional
- programming
- Factory Programmed
- magnetic_field_range
- ±225G
- typical_sensitivity_mv_per_g
- 9.75 to 10.25
- quiescent_output_v
- Typ 50% VCC
- bandwidth_khz
- 120
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 150°C
- over_current_fault
- No
- aec_q100
- Yes
- package
- 4-Pin SIP
- market
- Automotive
A1366LKTTN-2-T
- architecture
- Bidirectional
- programming
- Factory Programmed
- magnetic_field_range
- ±1125G
- typical_sensitivity_mv_per_g
- 2.437 to 2.563
- quiescent_output_v
- Typ 50% VCC
- bandwidth_khz
- 120
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 150°C
- over_current_fault
- No
- aec_q100
- Yes
- package
- 4-Pin SIP
- market
- Automotive
A1366LKTTN-5-T
- architecture
- Bidirectional
- programming
- Factory Programmed
- magnetic_field_range
- ±450G
- typical_sensitivity_mv_per_g
- 4.875 to 5.125
- quiescent_output_v
- Typ 50% VCC
- bandwidth_khz
- 120
- supply_voltage_v
- 5
- temp_ranges
- -40°C to 150°C
- over_current_fault
- No
- aec_q100
- Yes
- package
- 4-Pin SIP
- market
- Automotive
