APM81803KNBJSR
- operating_input_voltage_min_v
- 3.5
- operating_input_voltage_max_v
- 36
- market
- Automotive
- topology
- Buck
- output_voltage_max_v
- 24
- iout_per_channel_ma
- 3000
- iout_total_ma
- 3000
- input_voltage_max_v
- 36
- asil_per_qm_rated
- No
- package
- QFN
DCDC Regulators
40V, 3A Synchronous Buck Regulator Module with Integrated EMI Filter

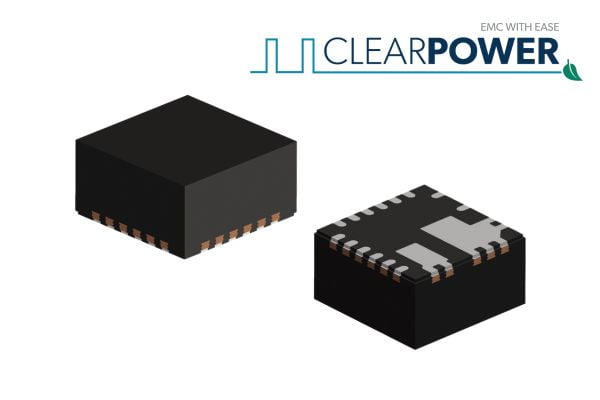

APM81803
Markets Served
The APM81803 simplifies power supply design and minimizes EMI with its integrated EMI filter, high-efficiency synchronous buck regulator, and ultra-low quiescent current (6µA). Offers programmable switching frequency and comprehensive protection.
Product Details
Product Details
Top Features
- AEC-Q100 Grade 1 Qualified
- Wide VIN range, 3.5V to 36V operation with transients up to 40V
- Ultra-Low EMI with integrated input and bootstrap capacitors
- Low Power Mode: 6µA Quiescent Current
- Robust FMEA: pin open/short and component faults
Target Application
