具有电池反接和电池断开通道的汽车三相隔离器 MOSFET 驱动器

A89103

Markets Served

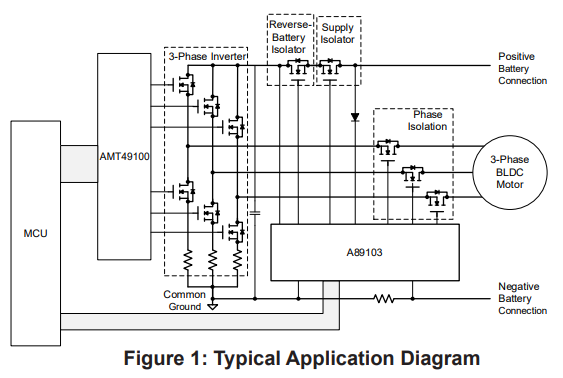

A89103 提供三个独立的栅极驱动器，可断开电机与其驱动电路的连接，从而允许辅助系统接管控制。该器件还包含用于电池断开和电池反向隔离的附加驱动器。

View Datasheet
View Datasheet

Product Details

Top Features

  • Five floating N-channel MOSFET drives
  • Maintains VGS with 100 kΩ gate-source resistors
  • Integrated charge pump controller
  • 4.5 to 85 V supply voltage operating range

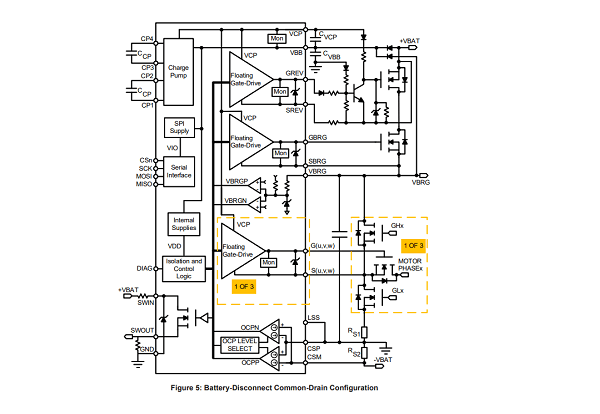

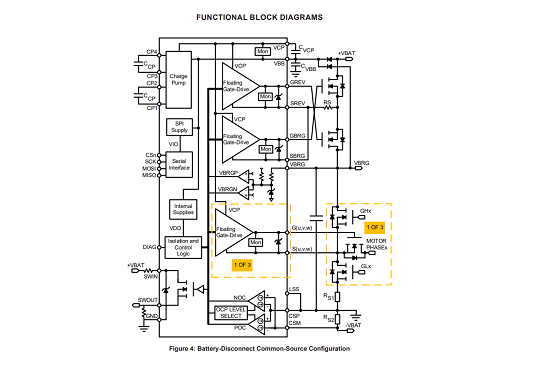

  • Supports source-to-source and drain-to-drain battery MOSFET isolation
  • VCP and VGS undervoltage protection
  • 150°C ambient (165°C junction) continuous
  • Fully integrated diagnostics for safe motor phase and battery disconnect
  • Extensive programmable diagnostics
  • Diagnostic verification
  • Automotive AEC-Q100 qualified
Target Application

Part Number Specifications and Availability

View Full Specification Details

A89103KETSR-3

supply_voltage_min_v
4.5
supply_voltage_max_v
85
architecture
Gate Driver
control_interface
Direct Control
rds_on
Not specified
commutation
Direct Drive
motor_positioning_method
External
sleep_current
3uA
current_sense_amplifiers
0
number_of_bridges
5
temperature
-40°C to 150°C
package

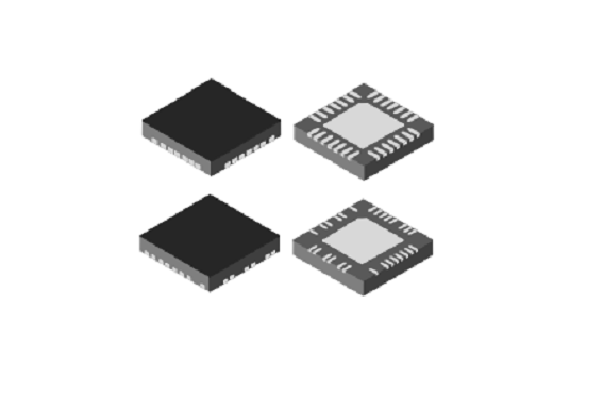

28-Pin QFN
market
Automotive
typical_load_current_a
0-20

A89103KETSR-5

supply_voltage_min_v
4.5
supply_voltage_max_v
85
architecture
Gate Driver
control_interface
Direct Control
rds_on
Not specified
commutation
Direct Drive
motor_positioning_method
External
sleep_current
3uA
current_sense_amplifiers
0
number_of_bridges
5
temperature
-40°C to 150°C
package
28-Pin QFN
market
Automotive
typical_load_current_a
0-20

A89103KEVSR-3

supply_voltage_min_v
4.5
supply_voltage_max_v
85
architecture
Gate Driver
control_interface
Direct Control
rds_on
Not specified
commutation
Direct Drive
motor_positioning_method
External
sleep_current
3uA
current_sense_amplifiers
0
number_of_bridges
5
temperature
-40°C to 150°C
package
28-Pin QFN
market
Automotive
typical_load_current_a
0-20

A89103KEVSR-5

supply_voltage_min_v
4.5
supply_voltage_max_v
85
architecture
Gate Driver
control_interface
Direct Control
rds_on
Not specified
commutation
Direct Drive
motor_positioning_method
External
sleep_current
3uA
current_sense_amplifiers
0
number_of_bridges
5
temperature
-40°C to 150°C
package
28-Pin QFN
market
Automotive
typical_load_current_a
0-20

设计工具

ECAD FILE

A89103

A89103 ECAD Model Type Image
Software

Software Portal

Technical Documentation

Common-Drain and Common-Source Reverse-Battery Protection Schemes for the A89103
Application Note

Common-Drain and Common-Source Reverse-Battery Protection Schemes for the A89103

AN296296 - Smart Relay Common Drain Application Board
Application Note

AN296296 - Smart Relay Common Drain Application Board

AN296298 - Smart Relay Common Source Application Board
Application Note

AN296298 - Smart Relay Common Source Application Board
