Brushless DC Drivers

具有 I²C 接口的 50V 免代码 FOC BLDC 电机控制器

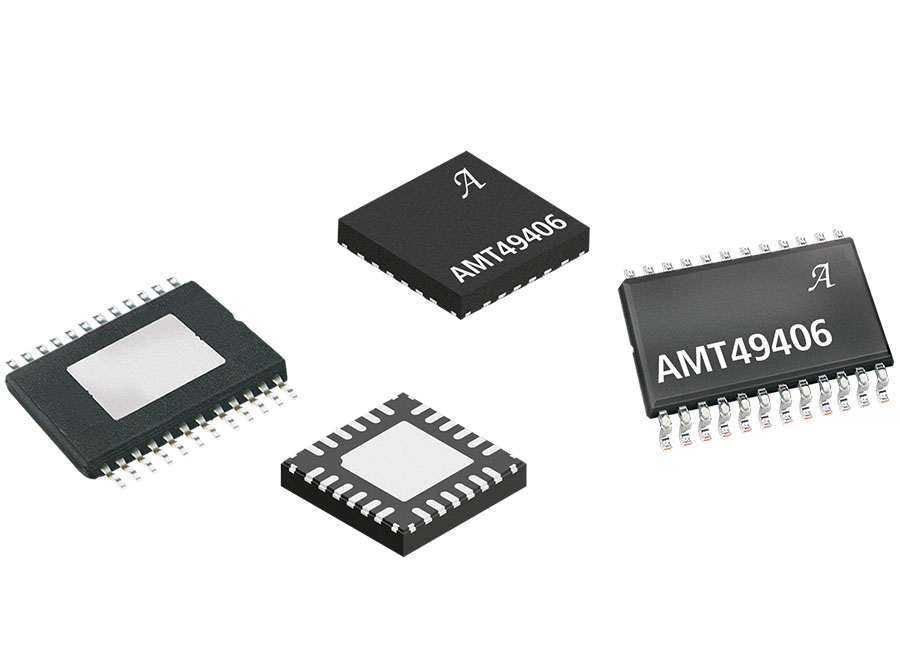

AMT49406

Markets Served

AMT49406 为 BLDC 电机控制提供免代码解决方案，具有集成 FOC、灵活的速度控制选项和 I²C 可编程性，简化设计并优化性能。

Product Details

Top Features

  • 无编码无传感器定向磁场控制（FOC）
  • 专有非反向快速启动
  • 软启动软关闭 (SOSO) 实现安静运行
  • 模拟/ PWM /时钟模式速度控制
  • 闭环速度控制
  • 可配置电流限值
  • 风车启动运行
  • 锁定检测
  • 短路保护 (OCP)
  • 制动和方向输入

Part Number Specifications and Availability

View Full Specification Details

AMT49406GESSR

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed, I²C, Analog
rds_on
Pre-Driver
commutation
Field Oriented Control (FOC)
motor_positioning_method
Sensorless
sleep_current
20
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C
package
24-Pin QFN, 24-Pin TSSOP
market
Industrial

AMT49406GLPTR

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed, I²C, Analog
rds_on
Pre-Driver
commutation
Field Oriented Control (FOC)
motor_positioning_method
Sensorless
sleep_current
20
current_sense_amplifiers
Integrated
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C
package
24-Pin QFN, 24-Pin TSSOP
market
Industrial
