Brushless DC Drivers

带 LIN 接口和诊断功能的汽车无传感器正弦波 BLDC（无刷直流）控制器

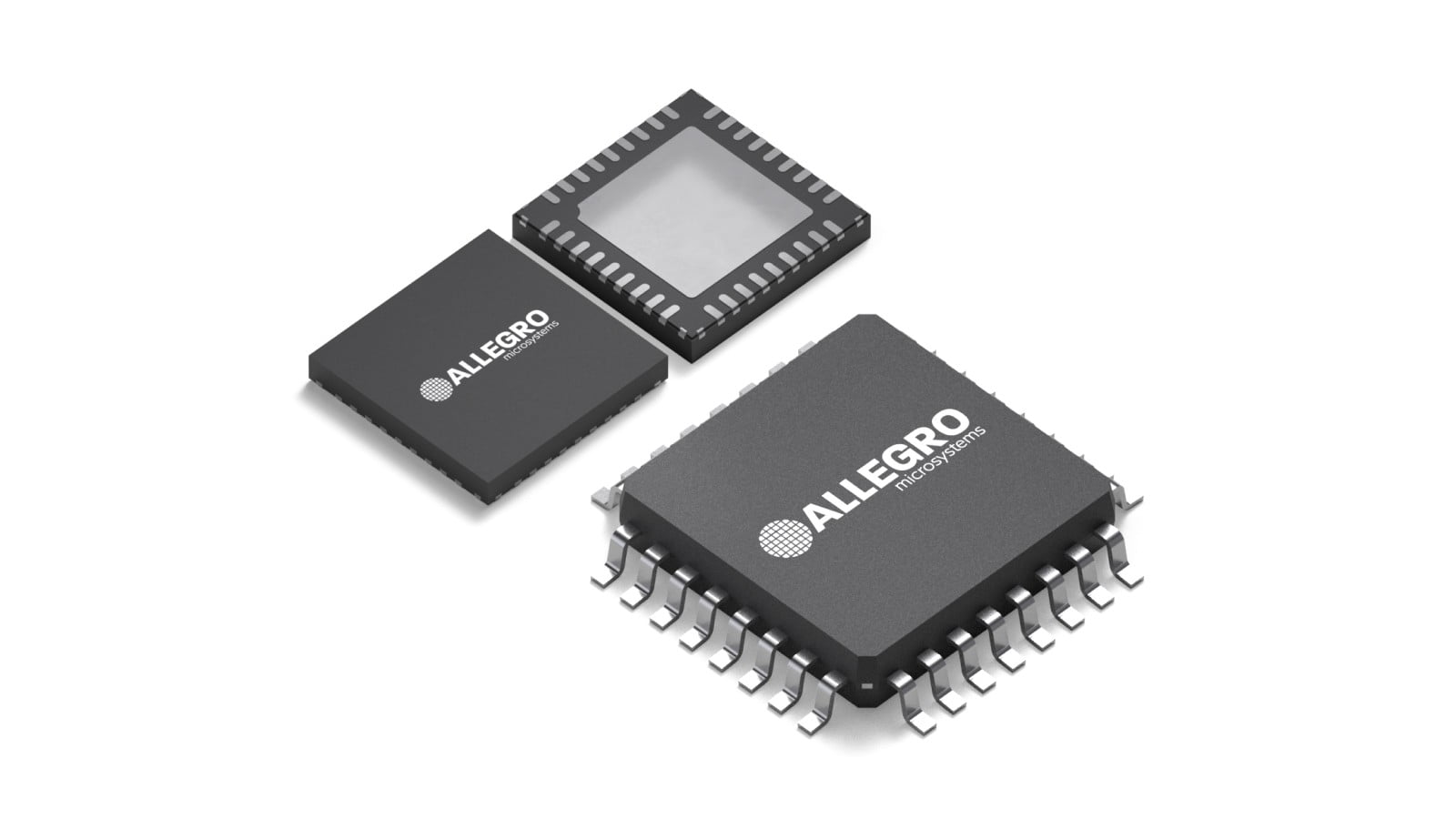

A4964

Markets Served

A4964 面向汽车 BLDC 电机控制提供了完整的解决方案，具有无传感器正弦波驱动、可编程控制模式、LIN 接口和集成诊断功能，能够提升性能和可靠性。

A4964 数据表

Product Details

Top Features

  • Three-phase sensorless BLDC motor control FET driver
  • Three-phase sinusoidal drive with soft start
  • Sensorless start-up and commutation
  • Windmill detection and synchronization
  • Bootstrap gate drive for N-channel MOSFET bridge
  • 5.5 to 50 V supply range
  • SPI-compatible interface
  • Programmable control modes: speed, voltage, current
  • Peak current limiting
  • Control via SPI or PWM
  • Programmable gate drive for slew rate control
  • LIN / PWM physical interface with wake
  • Logic supply regulator with current limit
  • MCU watchdog and reset
  • Ignition switch interface
  • Diagnostics, status, current, and speed feedback
Target Application

Part Number Specifications and Availability

View Full Specification Details

A4964KEVTR-J

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed, I2C/SPI
rds_on
Pre-Driver
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
20
current_sense_amplifiers
1
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C
package
36-Pin QFN
market
Automotive

A4964KJPTR-T

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
PWM Speed, I2C/SPI
rds_on
Pre-Driver
commutation
Sinusoidal
motor_positioning_method
Sensorless
sleep_current
20
current_sense_amplifiers
1
number_of_bridges
Half-Bridge x3
temperature
-40°C to 105°C
package
36-Pin QFN
market
Automotive

设计工具

ECAD FILE

A4964

A4964 ECAD Model Type Image
Software

Software Portal
User Guide

APEK4964 Evaluation Board User Guide
