Brushless DC Drivers

禁止用于新设计

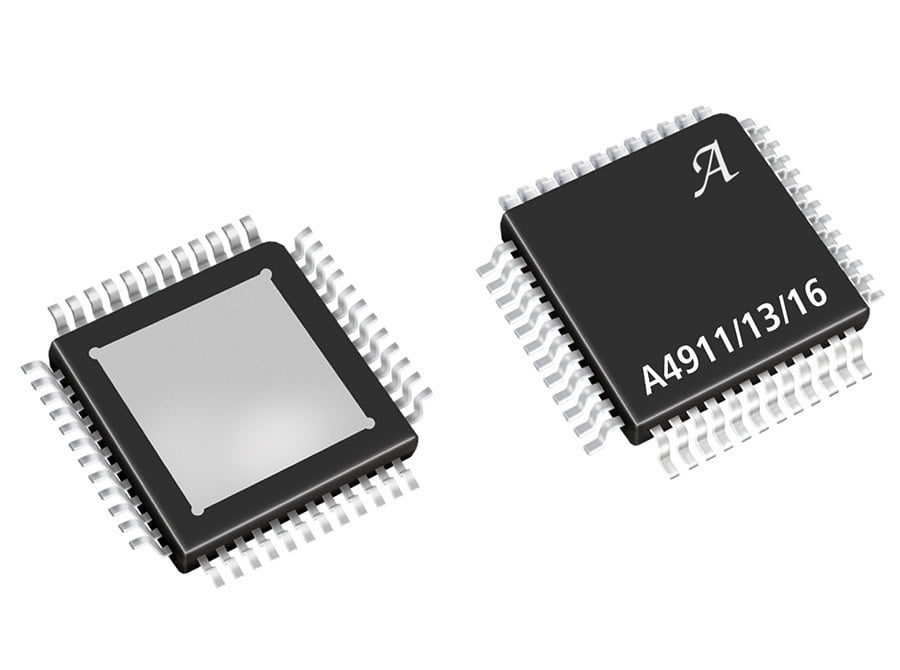

A4916

Product Details

Top Features

  • ISO26262 开发和 ASIL-D 认证
  • 150°C 环境温度
  • 最低 165 °C 过热关机功能
  • 符合 Q100 0 级标准
  • 强大的门极驱动设计，允许高达 -18V 的负瞬变
  • 扩展诊断
    • 门极驱动监控器
    • 过压检测器
    • 逻辑电平、相状态输出
    • 开放负载检测
  • 可编程门极驱动输出
  • 转换率限制的可调驱动强度
    • 门极驱动限制的可调输出电压
  • 可编程感应放大器
    • 可调整增益
    • 可调整偏移
    • 不需使用外部组件
    • 低偏移漂移
  • SPI 读取和奇偶校验位
Target Application

Part Number Specifications and Availability

View Full Specification Details

A4916KJPTR-T

supply_voltage_min_v
5.5
supply_voltage_max_v
50
architecture
Gate Driver
control_interface
SPI
rds_on
20
commutation
Universal
motor_positioning_method
External
sleep_current
10
current_sense_amplifiers
0
temperature
-40°C to 150°C
package
48-Pin QFN, 48-Pin LQFP
market
Automotive
typical_load_current_a
10-25

A4916KJPTR-T-2

supply_voltage_min_v
-
supply_voltage_max_v
-
architecture
-
control_interface
-
rds_on
-
commutation
-
motor_positioning_method
-
sleep_current
-
current_sense_amplifiers
-
temperature
-
package
-
market
-
typical_load_current_a
-
