APS11900LLHALT
- supply_voltage_min_v
- 3
- supply_voltage_max_v
- 24
- features
- Programmable ASIL A Switch/Latch
- output
- Current
- sensor_type
- 1D Planar
- asil_rated
- Yes
- typical_bop
- ±1/±10-±60/±600 (programmable)
- market
- Automotive

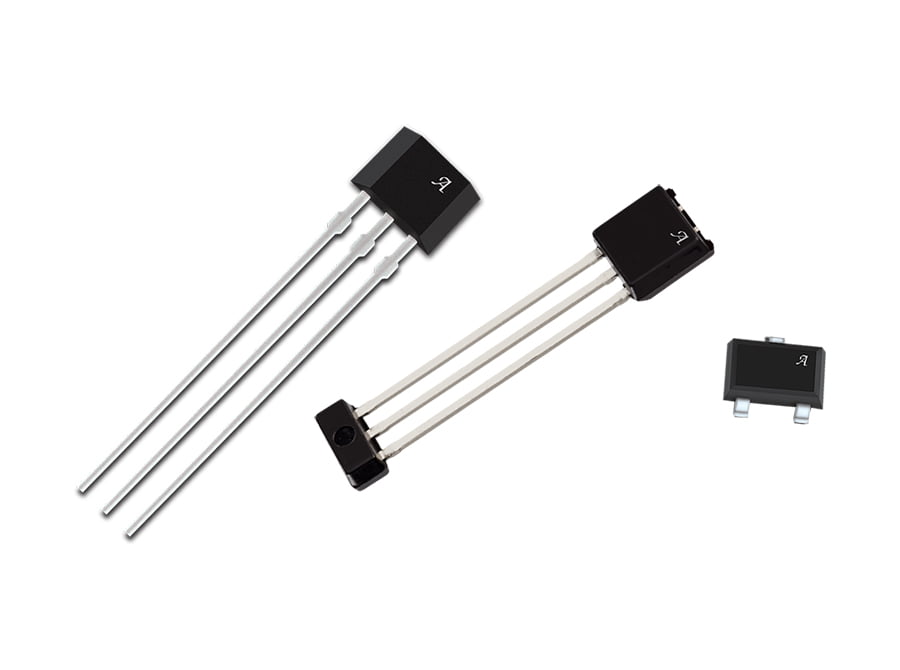

APS11900は、スイッチポイント精度を最適化するための高度なプログラム機能を提供し、内蔵診断機能や安全状態出力も備えて機能安全用途に対応します。
Product Details
Product Details
Top Features
- Developed in accordance with ISO 26262:2011
- Internal diagnostics and a defined Safe State
- Highly programmable
- Magnetic polarity, switchpoints, and hysteresis
- Temperature coefficient (supports SmCo, NdFeB, and ferrite magnets)
- Output polarity and current levels
- Reduces module bill of materials (BOM) and assembly cost
- Integrated overvoltage clamp (40 V load dump) and reverse-battery diode
- Integrated series resistor and bypass capacitor (UC package)
- Enables PCB-less sensor modules
- Automotive-grade ruggedness and fault tolerance
- Extended AEC-Q100 qualification
- Operation from –40°C to 175°C junction temperature
- 3 to 24 V operating voltage range
- High EMC/ESD immunity
- Overtemperature indication
Target Application
- Seat Position
- Throttle Position
- Seatbelt
- Closure Systems
- Consumer Health & Medical Devices
Part Number Specifications and Availability
View Full Specification Details
APS11900LLHALX
- supply_voltage_min_v
- 3
- supply_voltage_max_v
- 24
- features
- Programmable ASIL A Switch/Latch
- output
- Current
- sensor_type
- 1D Planar
- asil_rated
- Yes
- typical_bop
- ±1/±10-±60/±600 (programmable)
- market
- Automotive
APS11900LUAA
- supply_voltage_min_v
- 3
- supply_voltage_max_v
- 24
- features
- Programmable ASIL A Switch/Latch
- output
- Current
- sensor_type
- 1D Planar
- asil_rated
- Yes
- typical_bop
- ±1/±10-±60/±600 (programmable)
- market
- Automotive
APS11900LUAATI
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- features
- -
- output
- -
- sensor_type
- -
- asil_rated
- -
- typical_bop
- -
- market
- Automotive
APS11900LUAATN
- supply_voltage_min_v
- -
- supply_voltage_max_v
- -
- features
- -
- output
- -
- sensor_type
- -
- asil_rated
- -
- typical_bop
- -
- market
- Automotive
