スイッチとラッチ

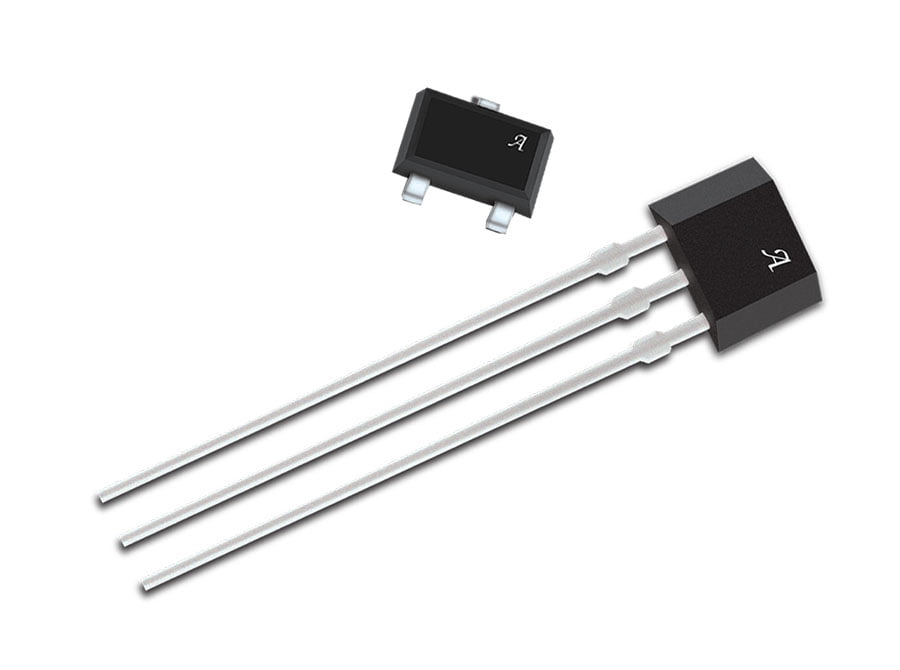

チョッパー安定化高精度ホール効果ラッチ

A1220-1-2-3

A1220、A1221、A1222、A1223データシート

Product Details

Top Features

  • AEC-Q100 認定
  • ラッチの対称スイッチポイント
  • 物理的ストレスへの耐性
  • 優れた温度安定性
  • 出力ショート保護
  • 最低3 Vの非安定化電源での動作
  • 逆バッテリー保護
  • ソリッドステートの信頼性
  • 小型パッケージ
Target Application

Part Number Specifications and Availability
