磁気ポジション センサー

過酷環境向け3D PCBレス磁気位置センサIC

A31316

Markets Served

A31316は、過酷な環境下でも堅牢で信頼性の高い位置検出機能を提供します。PCBレスのSIPパッケージ、内蔵コンデンサ、設定可能な信号経路処理に対応して、設計を簡素化します。

View Datasheet
Evaluation Board

Product Details

Top Features

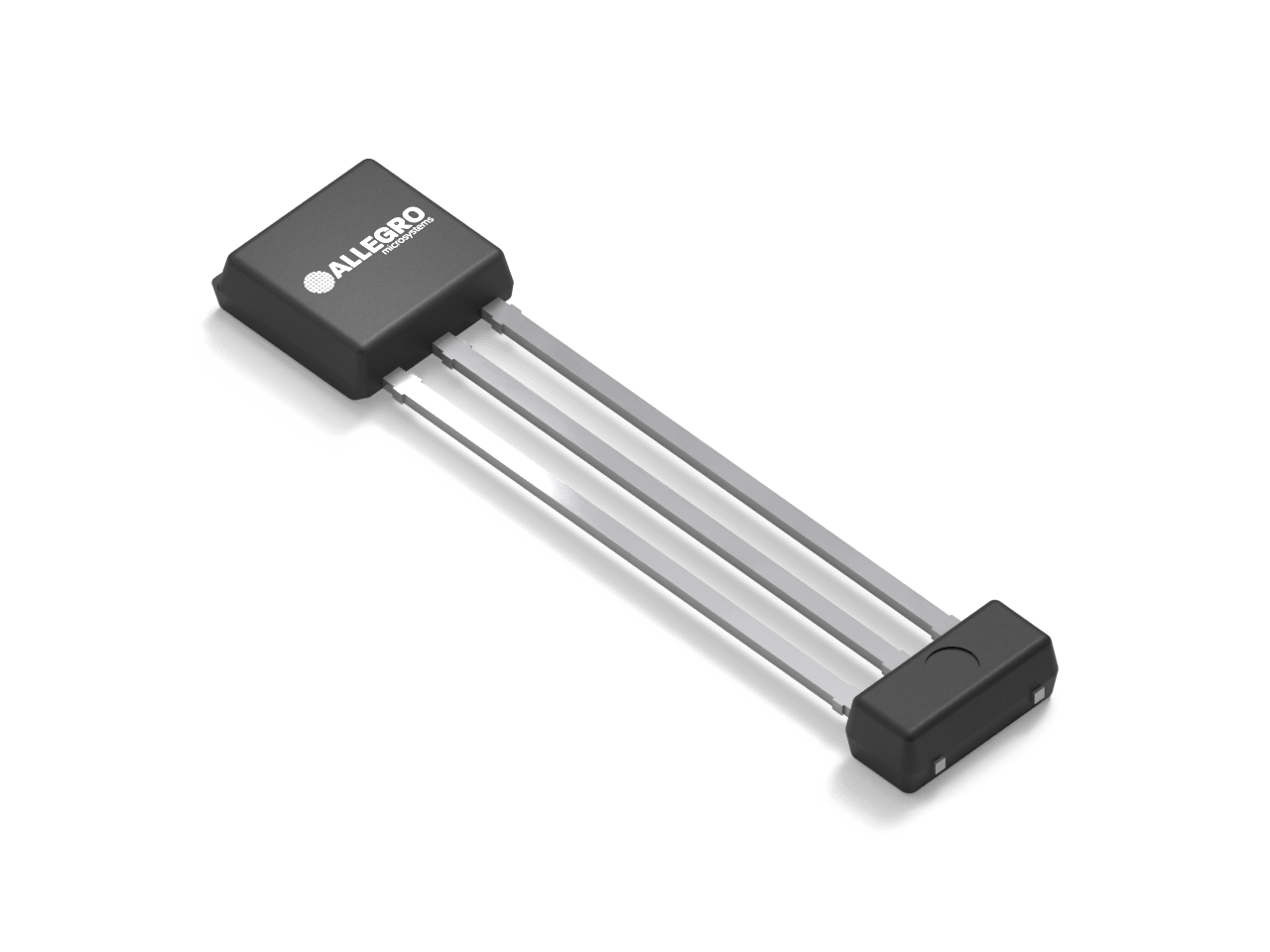

  • PCB-Less “UC” Package for system integration without a PCB
  • Linearization and binning modes (up to 33-point fixed, up to 22-point programmable positions)
  • Supports SENT (SAE J2716) and PWM interface options
  • Developed in accordance with ISO 26262 as a hardware safety element out of context (SEooC) with ASIL B
  • AEC-Q100 Grade 0 qualified supports operation in harsh conditions, required for automotive and industrial applications
Target Application

Part Number Specifications and Availability

View Full Specification Details

A31316LUCHTN-XY-S-SE-10

supply_voltage_min_v
4.5
supply_voltage_max_v
5.5
output_type
SENT, PWM
linearization
Yes
active_sensing_axes
XY
max_magnetic_field_g
1000
aec_q100
Yes
temperature
-40°C to 150°C
package
3-Pin SIP
on_chip_angle_calculation
Yes
market
Automotive, Industrial

A31316LUCHTN-XZ-S-SE-10

supply_voltage_min_v
4.5
supply_voltage_max_v
5.5
output_type
SENT, PWM
linearization
Yes
active_sensing_axes
XZ
max_magnetic_field_g
1000
aec_q100
Yes
temperature
-40°C to 150°C
package
3-Pin SIP
on_chip_angle_calculation
Yes
market
Automotive, Industrial

A31316LUCHTN-YZ-S-SE-10

supply_voltage_min_v
4.5
supply_voltage_max_v
5.5
output_type
SENT, PWM
linearization
Yes
active_sensing_axes
YZ
max_magnetic_field_g
1000
aec_q100
Yes
temperature
-40°C to 150°C
package
3-Pin SIP
on_chip_angle_calculation
Yes
market
Automotive, Industrial
