A1330LLETR-DD-T
- refresh_rate_us
- 25
- response_time_us
- 120
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 12 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C

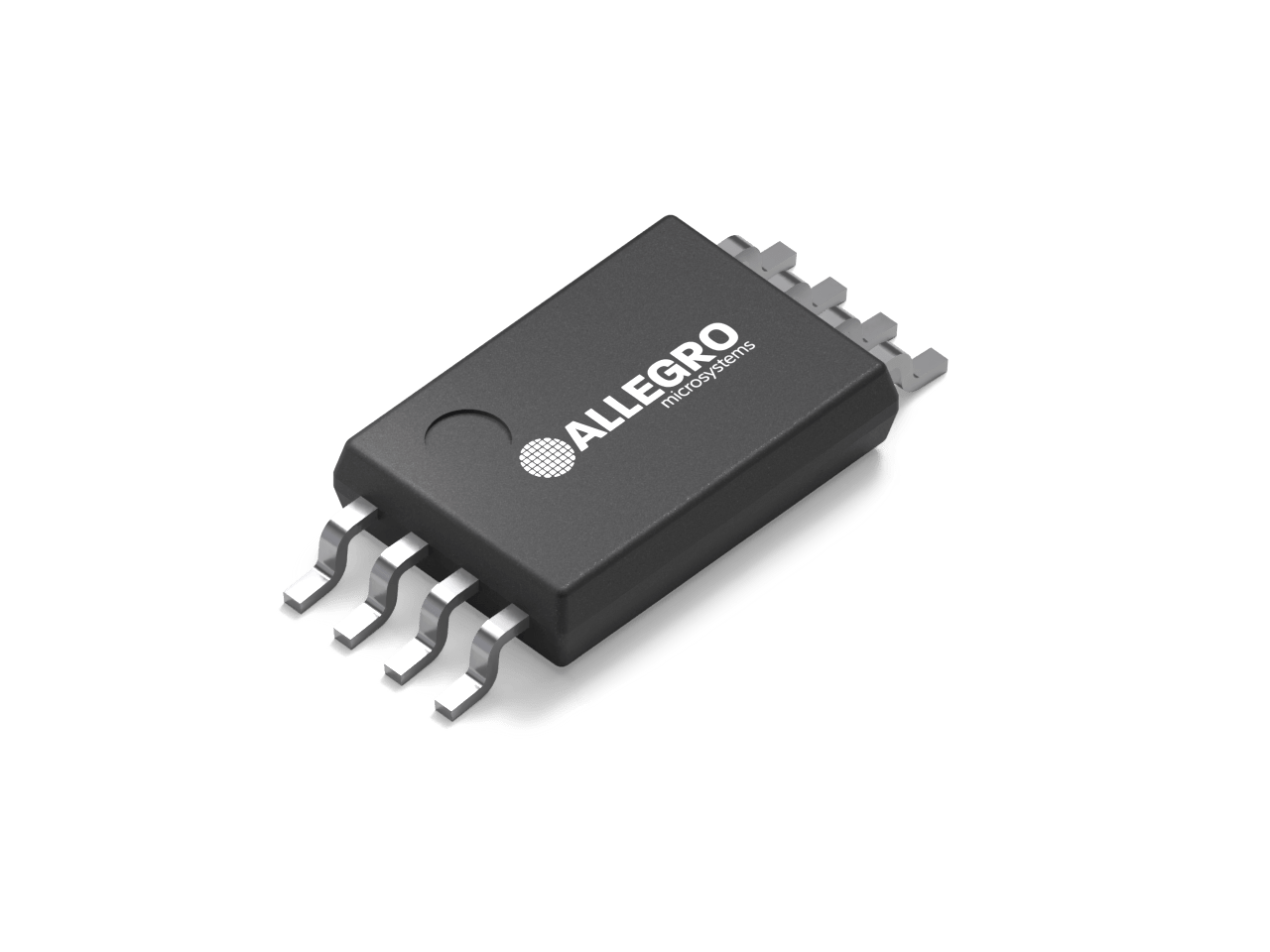

- package
- 8-Pin TSSOP
- aec_q100
- Yes
- sensor_type
- CVH
- market
- Automotive
A1330は、調整可能な内部平均化、ショートストローク用途向けの角度スケーリング、システム信頼性を高める診断機能など、プログラム可能な機能で高精度の角度測定を提供します。
Product Details
Product Details
Top Features
- Analog output, configurable to ratiometric or non-ratiometric
- Contactless 0° to 360° angle sensor IC, for angular position, rotational speed, and direction measurement
- Single and dual die options available in same package
- Non-volatile memory (EEPROM) for use in application trimming/calibration
- Circular Vertical Hall (CVH) technology provides a single-channel sensor system with air gap independence
- 12-bit resolution possible in Low RPM mode, 10-bit resolution in High RPM mode
- Angle Refresh Rate (output rate) configurable between 25 and 3200 μs through EEPROM programming
- Customer-programmable output clamp levels provide short-circuit diagnostic capabilities
- Open-circuit detection on ground pin (broken wire)
- Undervoltage lockout for VCC below specification
- Fine angle scaling for short-stroke applications
- Missing Magnet Error flag for notifying controller of low magnetic field level
- EEPROM programmable angle reference (0°) position and rotation direction (CW or CCW)
- AEC-Q100 automotive qualified
Target Application
- Exhaust Gas Recirculation
- 2W-Powertrain
- Water Pump
- Transmission
- 2W-xEV Power
Part Number Specifications and Availability
View Full Specification Details
A1330LLETR-P-DD-T
- refresh_rate_us
- 25
- response_time_us
- 120
- output_type
- PWM
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 12 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package
- 8-Pin TSSOP
- aec_q100
- Yes
- sensor_type
- CVH
- market
- Automotive
A1330LLETR-P-T
- refresh_rate_us
- 25
- response_time_us
- 120
- output_type
- PWM
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 12 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package
- 8-Pin TSSOP
- aec_q100
- Yes
- sensor_type
- CVH
- market
- Automotive
A1330LLETR-T
- refresh_rate_us
- 25
- response_time_us
- 120
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 12 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package
- 8-Pin TSSOP
- aec_q100
- Yes
- sensor_type
- CVH
- market
- Automotive
A1330LLETR-T-C02
- refresh_rate_us
- 25
- response_time_us
- 120
- output_type
- Analog
- supply_voltage_v
- 4.5 to 5.5
- resolution
- 12 bit
- sensitive_axis
- XY
- temp_range
- -40°C to 150°C
- package
- 8-Pin TSSOP
- aec_q100
- Yes
- sensor_type
- CVH
- market
- Automotive
