XtremeSense™ Z-Axis TMR Analog Sensor

CT130

Markets Served

The CT130 utilizes patented XtremeSense™ TMR technology to provide high-precision linear sensing specifically along the Z-axis. This monolithic, 1D sensor delivers an industry-leading signal-to-noise ratio (SNR) and extreme temperature stability, making it ideal for high-accuracy applications like optical image stabilization (OIS) and autofocus in compact camera modules. With a wide operating range of ±1500 G and ultra-low hysteresis, engineers can achieve superior magnetic position tracking in space-constrained designs without the need for external flux guides.

View Datasheet

Request Full Datasheet & Samples

Product Details

Top Features

High sensitivity of 0.08 mV/V/G with a wide operating magnetic field range of ±±1500 G for precise Z-axis sensing
Patented XtremeSense™ TMR technology ensures unparalleled temperature stability and stable performance across –40°C to 85°C
Very low noise and high signal-to-noise ratio (SNR) for applications requiring high accuracy and precision

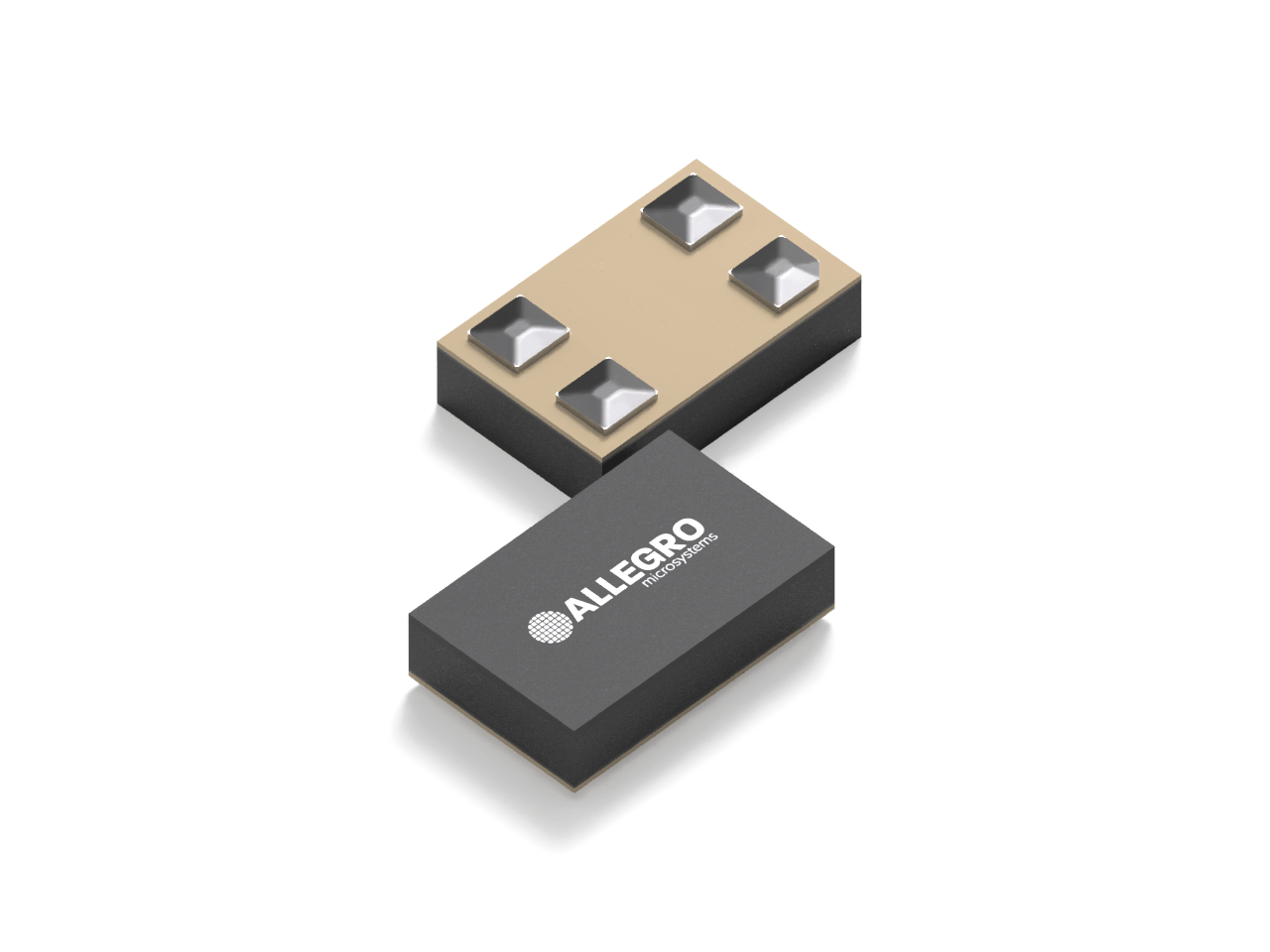

Ultra-low profile, 4-lead WLFOP package (0.8 mm × 0.5 mm × 0.25 mm) optimized for space-constrained camera modules
Flexible differential or single-ended outputs with a wide supply voltage range from 1 V to 5.5 V for versatile integration
