CT100は、非接触電流検出からリニアおよび近接測定まで幅広い用途に最適な、高直線性のTMR電流センサです。差動出力と広動作電圧範囲 (1V～5.5V) により、柔軟性と正確なパフォーマンスを実現します。
Product Details
Product Details
Top Features
- Sensitivity Range: ±50 mT
- Linearity Error: ±0.5% @±20 mT
- Differential Outputs
- Supply Voltage: 1.0 V to 5.5 V
- Operating Temperature: -40°C to +150°C

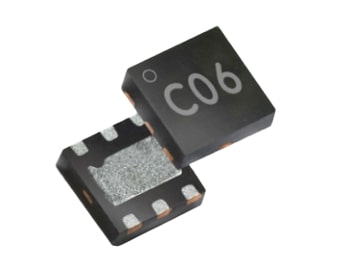

- Package Options
- 6-lead SOT23
- 6-lead DFN, 1.50 x 1.50 x 0.45 mm
- Known Good Die (KGD) in Wafer Form
Part Number Specifications and Availability
Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
Learn More
Technical Documentation
Application Note
TMR for Precision Linear Measurement
Application Note
Non-Intrusive Current-Sensing Using TMR: A Comparison Between TMR Sensors, Sense Resistors, Hall-Effect Sensors, and Current Transformers
Application Note
From Hall Effect to TMR
Application Note
Reducing the Influence of External Fields and Crosstalk for Contactless Current Sensing
Brochure
Comfort Through Sustainability - Unlock the Power of Heat Pump Innovation
Brochure
The Future of Sensing: XtremeSense™ TMR Technology
Guide
