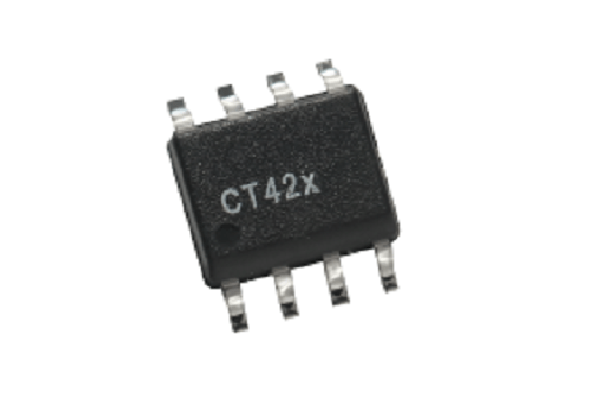

超低ノイズおよび強化絶縁の1 MHz高精度TMR電流センサ

CT425-8

CT42xファミリーの電流センサは、超低ノイズ、300nsの高速応答時間、強化された絶縁、設計を簡素化する内蔵の通電導体 (CCC) により、高精度の電流測定機能を提供します。CT425/428は5Vで動作し、CT426/427は3.3Vで動作します。

Product Details

Top Features

CT425 & CT428 (5.0 V version), CT426 & CT427 (3.3 V version)
Integrated 0.5 mΩ Conductor
Total Error Output: ±0.5% FS (typ.)
300 ns Response Time, 1 MHz Bandwidth
Noise as Low as 9 mARMS
Immunity to Common Mode Field: -54 dB
Rated Isolation Voltage: >4 kVRMS
UL/IEC 62368-1 and UL1577 Certification
IEC 61000-4-5 Certified
AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK

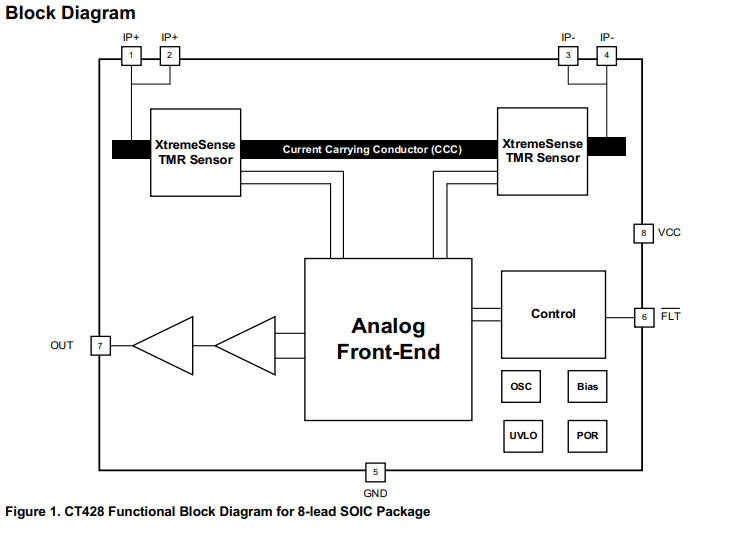

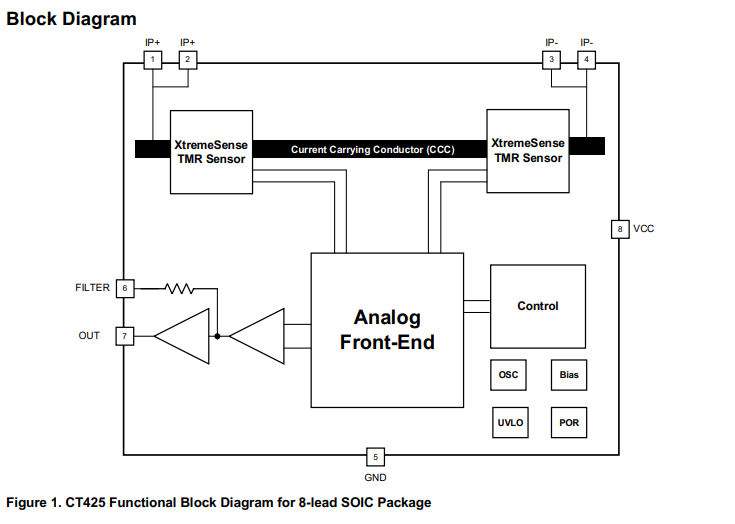

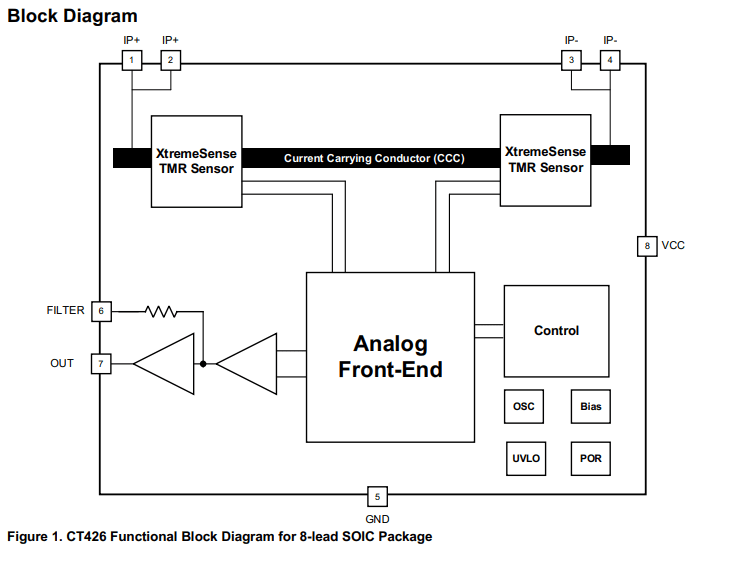

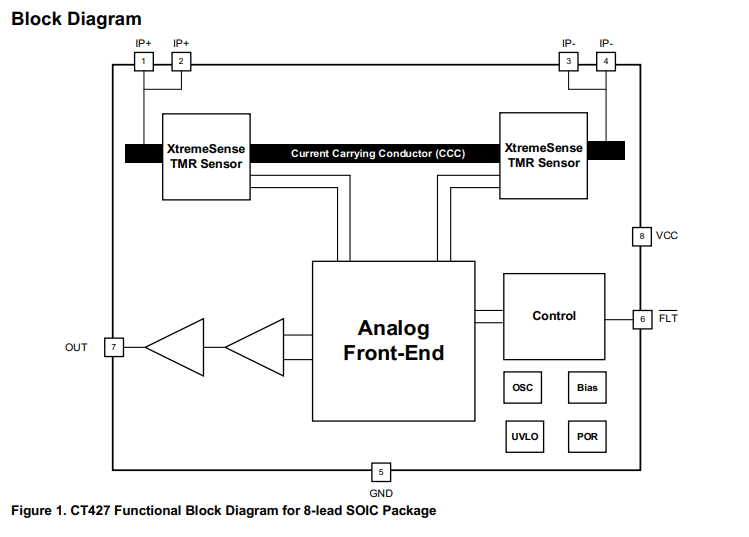

Pin #6 Functionality
- CT427 & CT248: Over-Current Detection Output Pin
- CT425 & CT426: Enhanced Filter to Lower Noise

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
