±800V Reinforced Isolation High-accuracy Hall-effect Current Sensor in SOICW-16 Packages

ACS71010

Markets Served

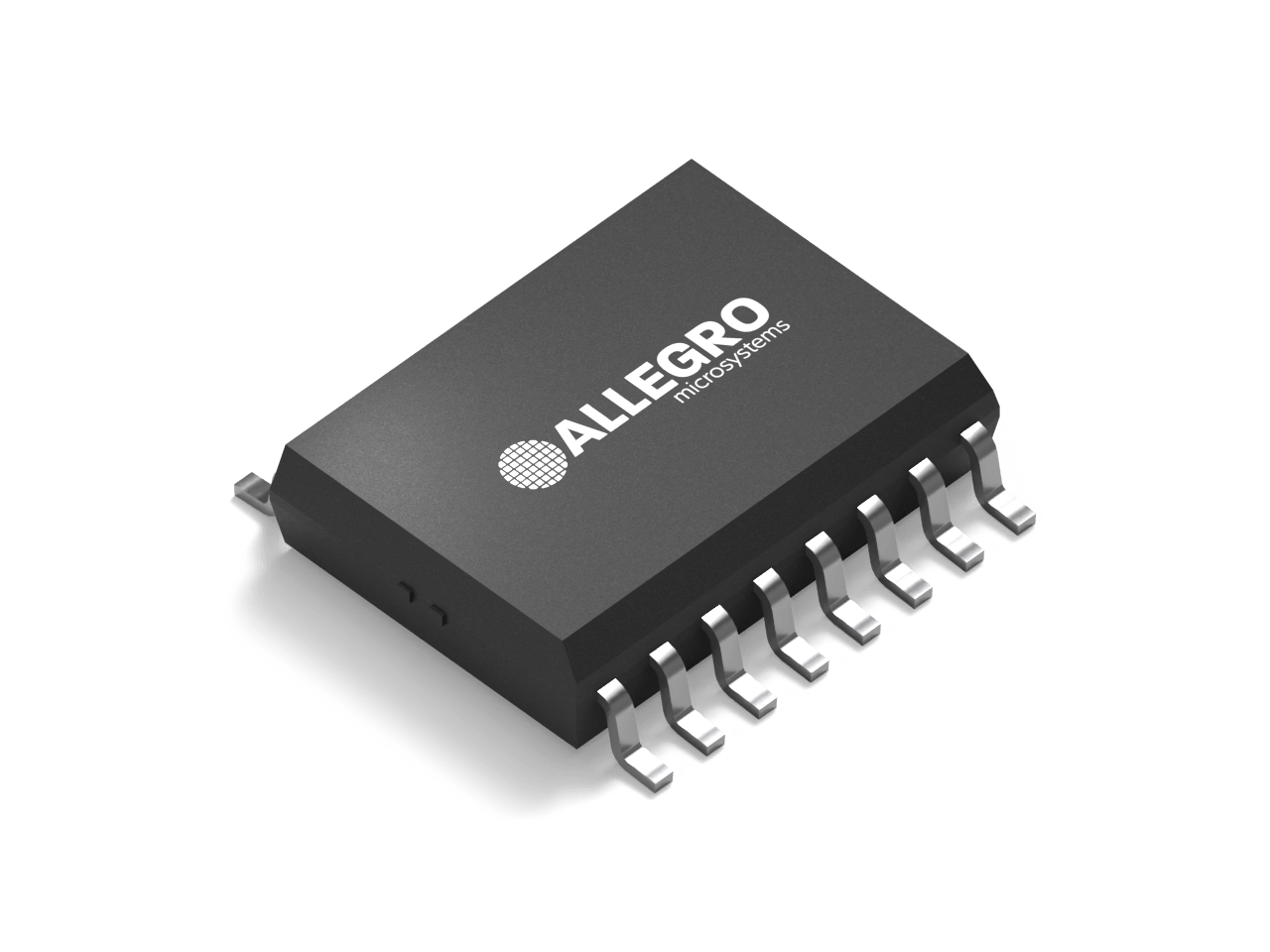

The ACS71010 is a high-accuracy (1% sensitivity error over temperature), mid-bandwidth (400 kHz) current sensor IC. It features adjustable overcurrent fault detection, a zero current reference, and differential sensing for high immunity to external magnetic fields. Available in two SOICW-16 package options (MC & MA) optimized for reinforced isolation.

View Datasheet

Product Details

Top Features

  • ±0.6% sensitivity error across temperature
  • ±7 mV quiescent voltage output offset over temperature
  • FAULT (with adjustable threshold) and VREF outputs
  • MA SOICW-16 package option supports 1097 VRMS basic isolation and 565 VRMS reinforced isolation
  • MC SOICW-16 package option supports 1144 VRMS basic isolation and 572 VRMS reinforced isolation
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS71010GMATR-050B5

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±50, ±80
bandwidth_khz
400
supply_voltage_v
5
temp_ranges
-40°C to 105°C
package
16-pin SOICW
market
Automotive, Industrial
features
Zero Current Reference Voltage Output, Adjustable Overcurrent Fault

ACS71010GMATR-080B5

basic_isolation_working_voltage_vrms
1097
reinforced_isolation_working_voltage_vrms
565
isolation_voltage_vrms
5000
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
0.85
current_measurement_range_a
±80
bandwidth_khz
400
supply_voltage_v
5
temp_ranges
-40°C to 105°C
package
16-pin SOICW
market
Automotive, Industrial
features
Zero Current Reference Voltage Output, Adjustable Overcurrent Fault
