±707V Reinforced Isolation 1MHz Hall-Effect Current Sensor

ACS37035

Markets Served

Our ACS37035 current sensor can measure DC up to 1 MHz signals and is ideal for sensing in fast control loops and power electronics utilizing fast switching frequencies while maintaining high accuracy over temperature and lifetime from its low quiescent voltage output error.

View Datasheet
Evaluation Board

Product Details

Top Features

  • High bandwidth, 1 MHz analog output
  • FAULT output for fast open drain overcurrent detection
  • ±3% sensitivity error across temperature
  • ±15mV quiescent voltage output offset over temperature

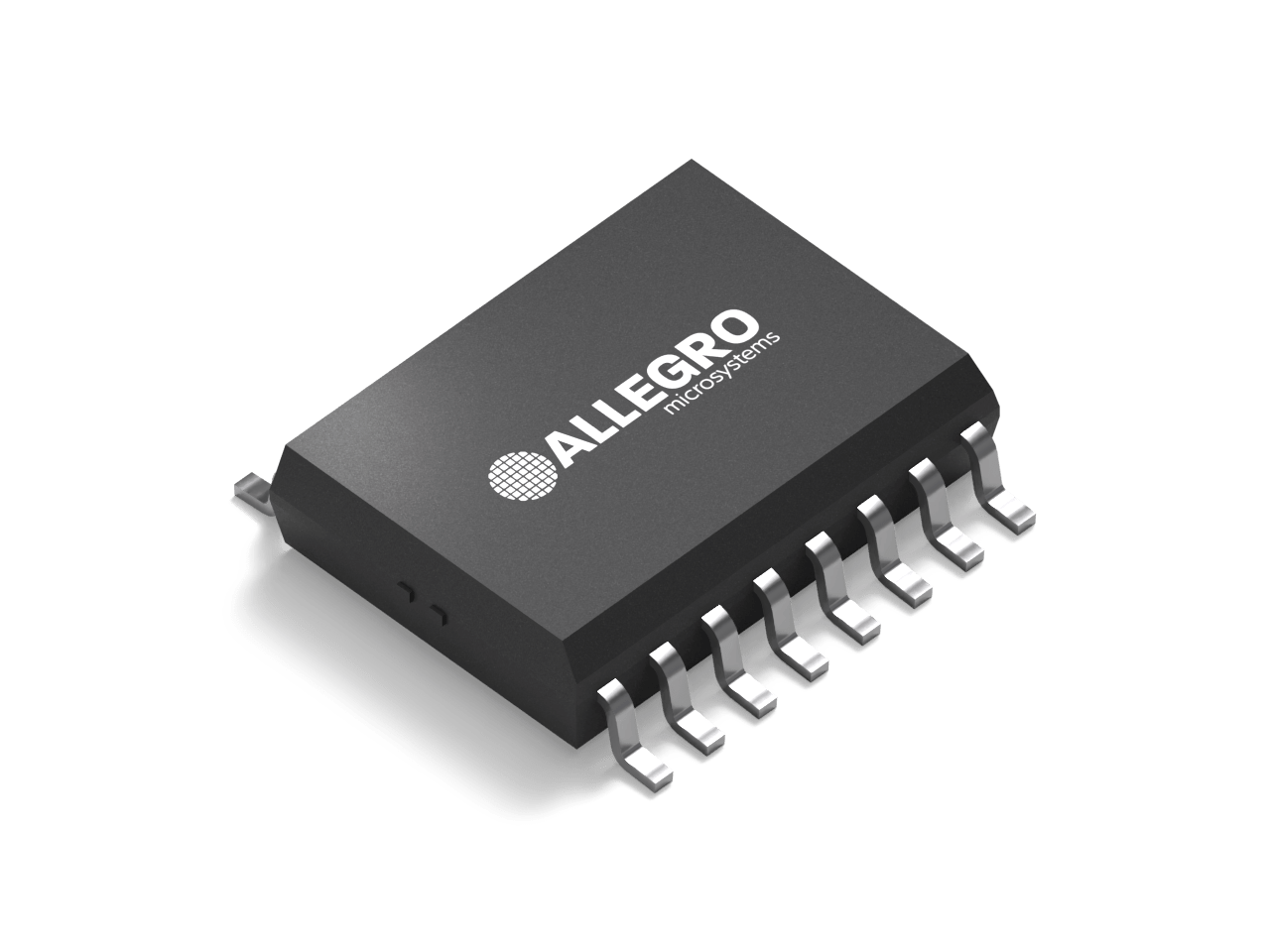

  • LA SOICW-16 package supports 1000 VRMS basic isolation and 500 VRMS reinforced isolation
Target Application

Part Number Specifications and Availability

View Full Specification Details

ACS37035KLACTR-020B3

basic_isolation_working_voltage_vrms
1000
reinforced_isolation_working_voltage_vrms
500
isolation_voltage_vrms
4242
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
1
architecture
Bidirectional
current_measurement_range_a
±20
bandwidth_khz
1000
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
Yes
package
16-pin SOICW
market
Automotive, Industrial
features
Adjustable Overcurrent Fault

ACS37035KLACTR-020B5

basic_isolation_working_voltage_vrms
1000
reinforced_isolation_working_voltage_vrms
500
isolation_voltage_vrms
4242
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
1
architecture
Bidirectional
current_measurement_range_a
±20
bandwidth_khz
1000
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
Yes
package
16-pin SOICW
market
Automotive, Industrial
features
Adjustable Overcurrent Fault

ACS37035KLACTR-040B5

basic_isolation_working_voltage_vrms
1000
reinforced_isolation_working_voltage_vrms
500
isolation_voltage_vrms
4242
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
1
architecture
Bidirectional
current_measurement_range_a
±40
bandwidth_khz
1000
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
Yes
package
16-pin SOICW
market
Automotive, Industrial
features
Adjustable Overcurrent Fault

ACS37035KLACTR-065B3

basic_isolation_working_voltage_vrms
1000
reinforced_isolation_working_voltage_vrms
500
isolation_voltage_vrms
4242
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
1
architecture
Bidirectional
current_measurement_range_a
±65
bandwidth_khz
1000
supply_voltage_v
3.3
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
Yes
package
16-pin SOICW
market
Automotive, Industrial
features
Adjustable Overcurrent Fault

ACS37035KLACTR-065B5

basic_isolation_working_voltage_vrms
1000
reinforced_isolation_working_voltage_vrms
500
isolation_voltage_vrms
4242
creepage_mm
8
clearance_mm
8
primary_conductor_resistance_mohm
1
architecture
Bidirectional
current_measurement_range_a
±65
bandwidth_khz
1000
supply_voltage_v
5
temp_ranges
-40°C to 125°C
aec_q100
Yes
over_current_fault
Yes
package
16-pin SOICW
market
Automotive, Industrial
features
Adjustable Overcurrent Fault
