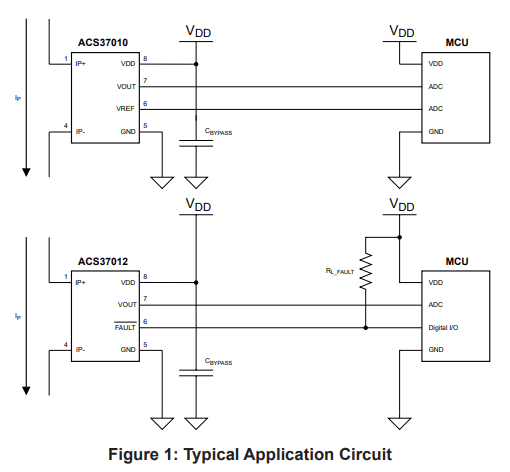

ACS37010/12電流センサは、高速な1.3µsの応答時間により、正確で信頼性の高い電流測定を実現します。ACS37010は電圧リファレンス出力を提供し、ACS37012は過電流/短絡検出用のフォルト出力を搭載しています。
Product Details
Product Details
Top Features
- ±1.5% sensitivity error across temperature

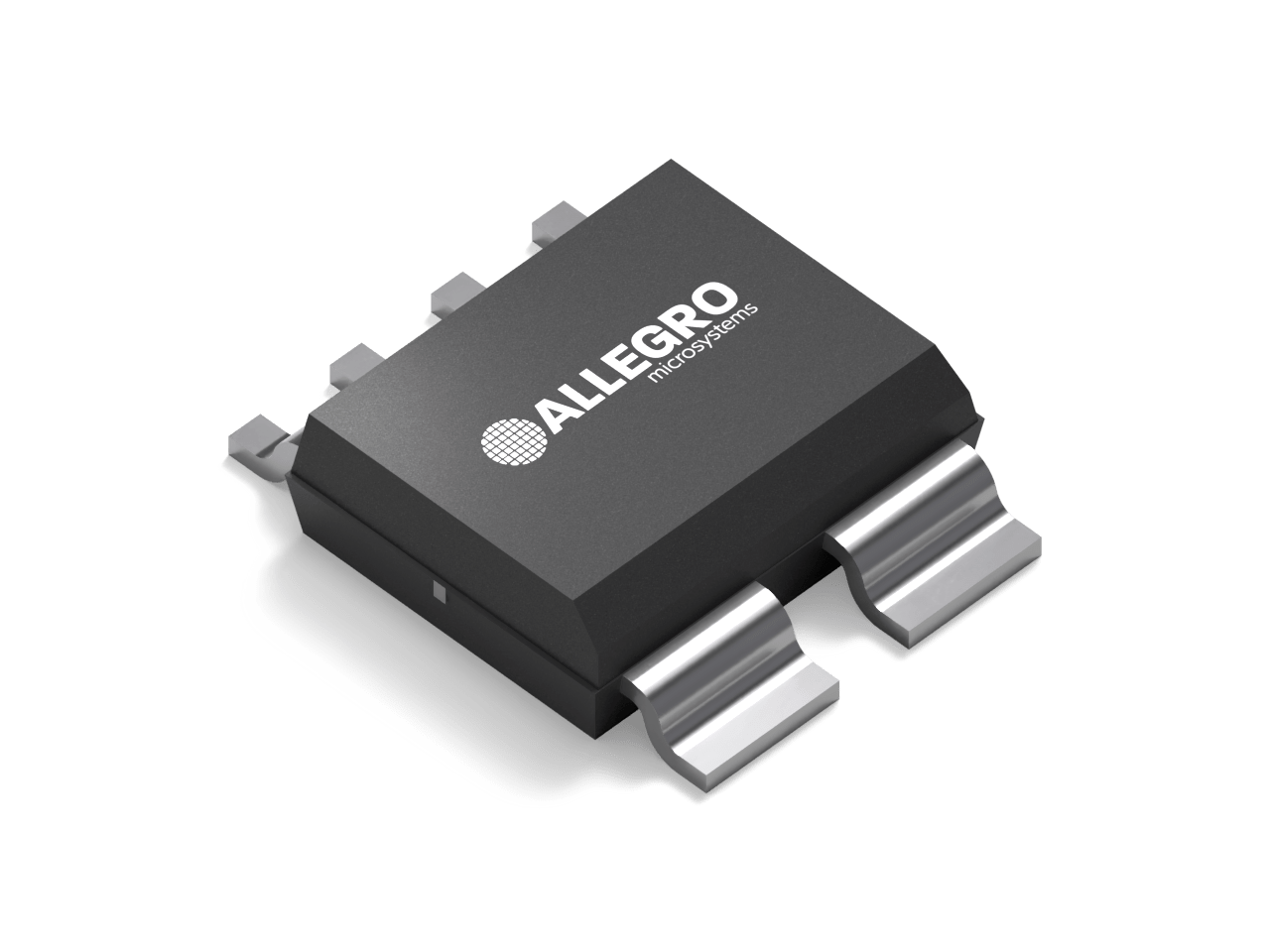

- Fused-lead SOIC-6 package supports 840 VRMS basic isolation and 420 VRMS reinforced isolation

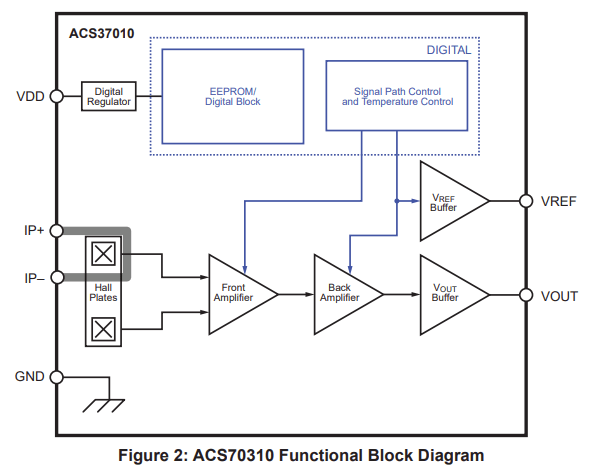

- Non-ratiometric operation with VREF output for enhanced accuracy in noisy environments (ACS37010)

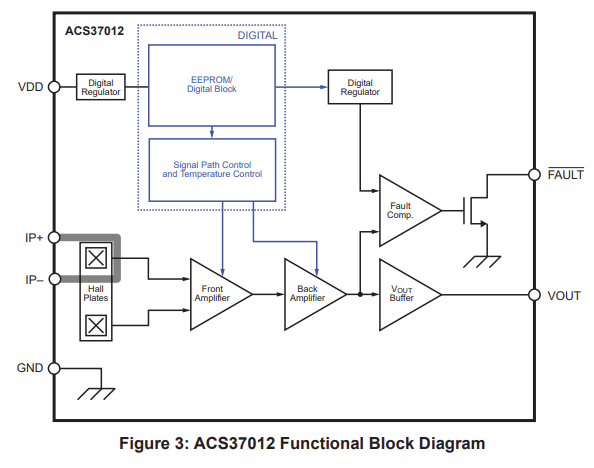

- Fast logic alert fault output pin with factory pre-programmed trip point provides overcurrent or short-circuit detection and enhanced system protection (ACS37012)
- 0.68 mΩ internal primary conductor resistance for better power efficiency
Part Number Specifications and Availability
